Replacing Right Engine Support Arm




22 11 100 - Replacing right engine support arm (N51/N52/N52K/N53)

Necessary preliminary tasks:
Remove right engine mount Replacing Right Engine Mount.

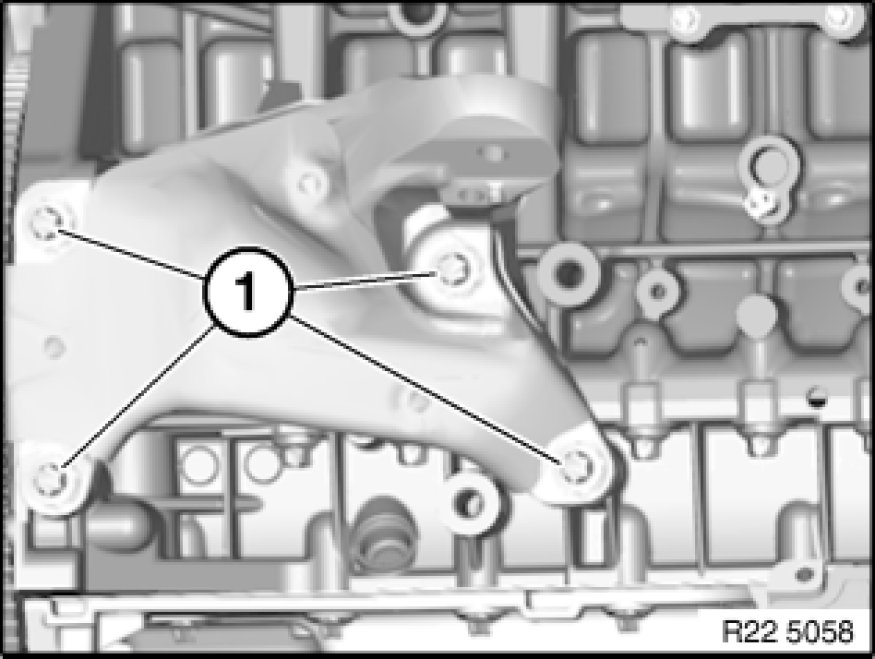

Release screws (1).
Remove engine support arm from engine.

Installation Note:
Aluminium screws/bolts must be replaced.

Tightening torque 22 11 3AZ Specifications

Note:
Illustration similar
