Removal and Replacement

17 22 010 - Removing and installing/replacing heat exchanger for automatic transmission





Drain off and top up coolant Service and Repair.





Recycling
Transmission fluid emerges when oil lines are detached from heat exchanger.
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations.





Important!
Check fluid level in automatic transmission, refer to Maintenance and General Information HG00.

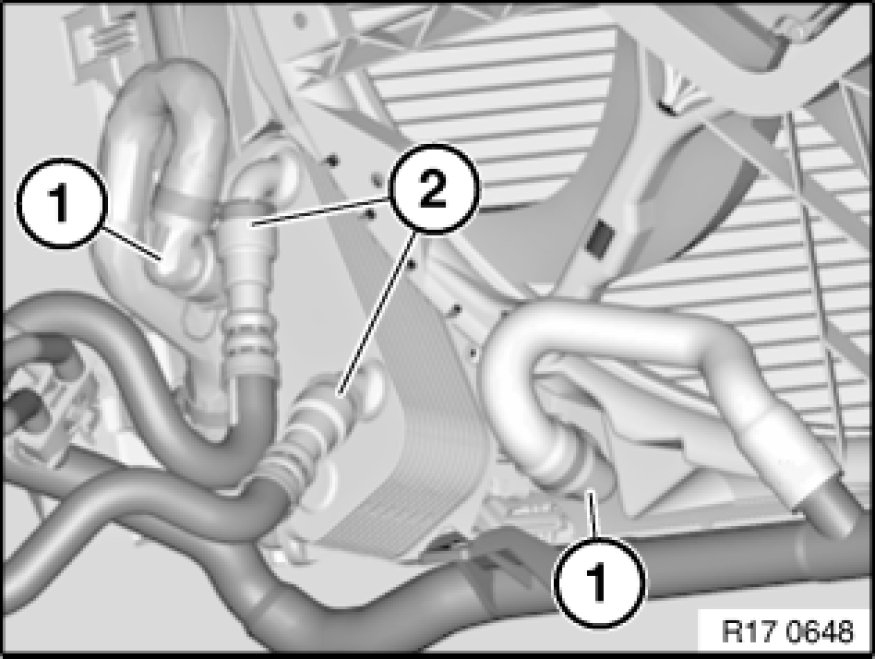

Press lines (1/2) in direction of heat exchanger and pull locking ring towards rear.
Keep locking ring pressed and detach lines (1/2) from heat exchanger.
Release screw on heat exchanger.
