K Bus Line
K Bus Line

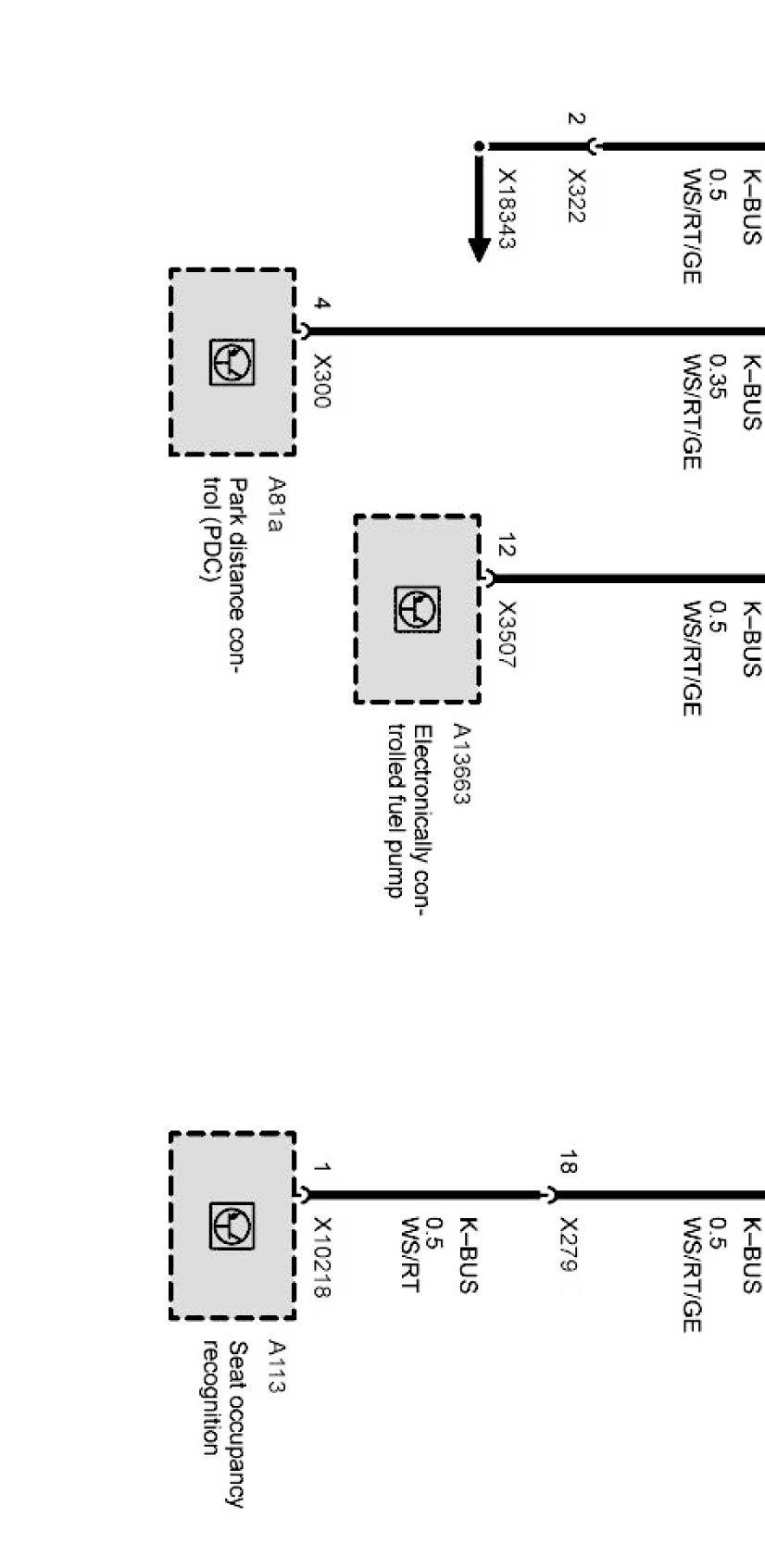

Connector X10659, X10612 Part 1:

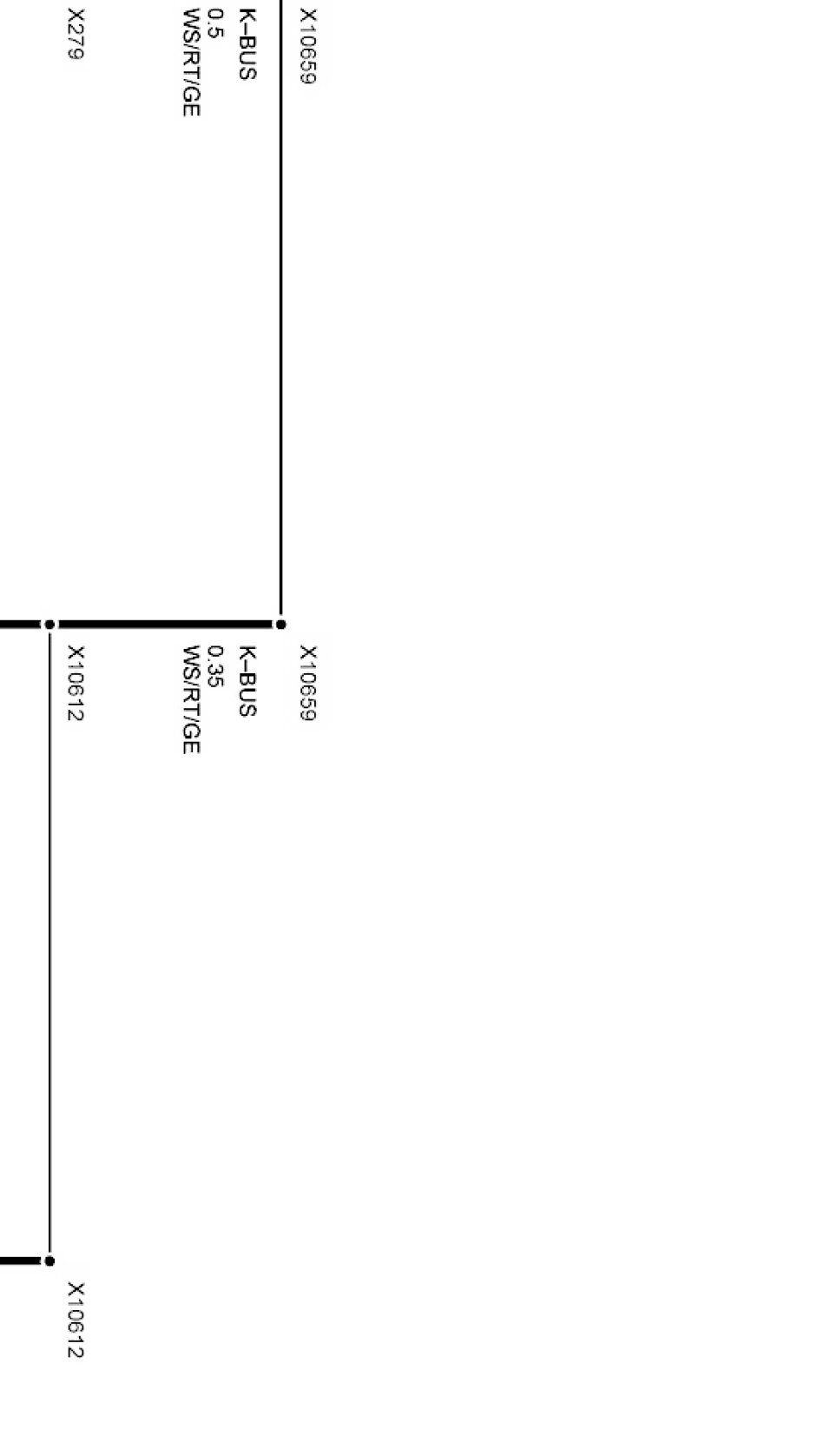

Connector X10659, X10612 Part 2:

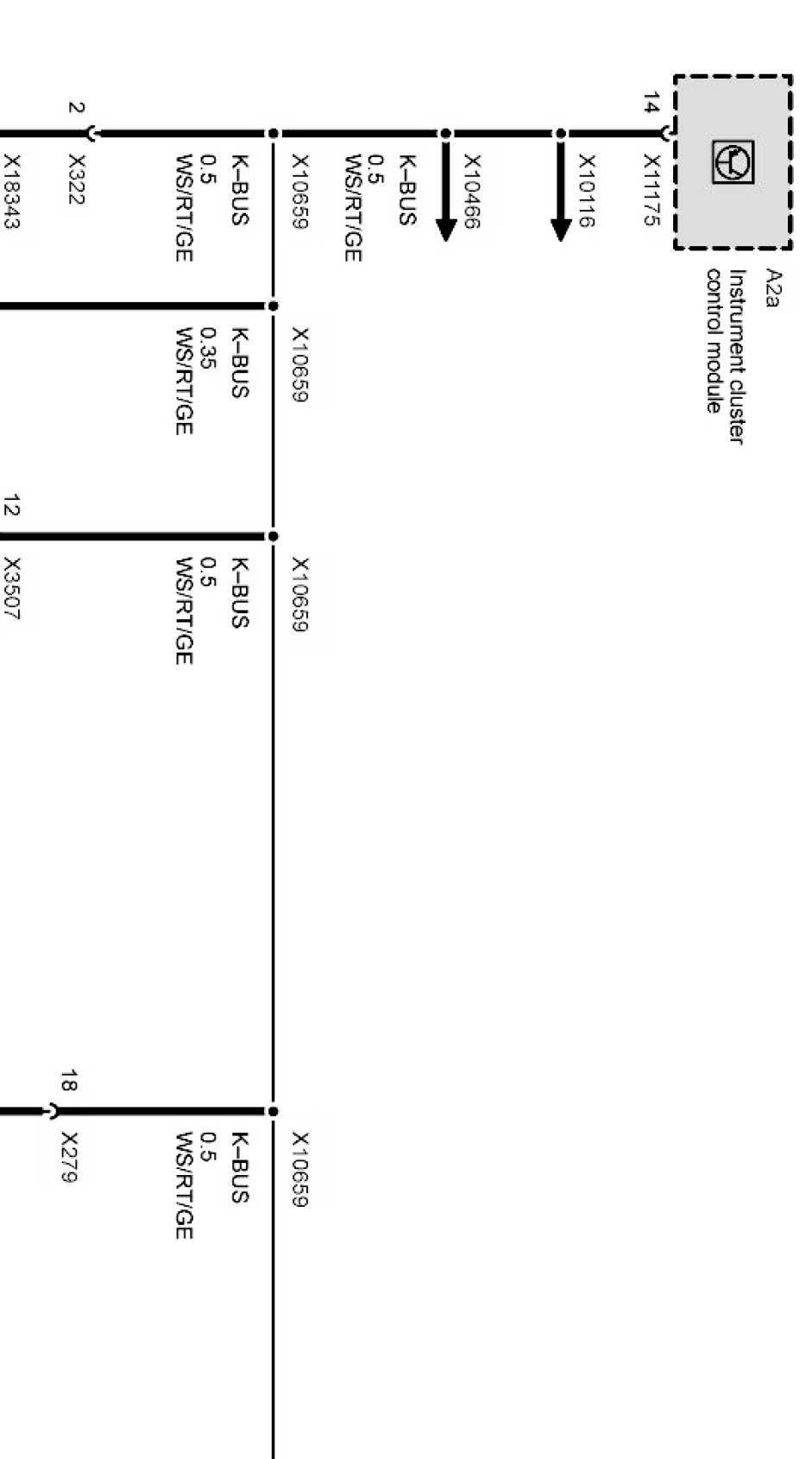

Connector X10659, X10612 Part 3:

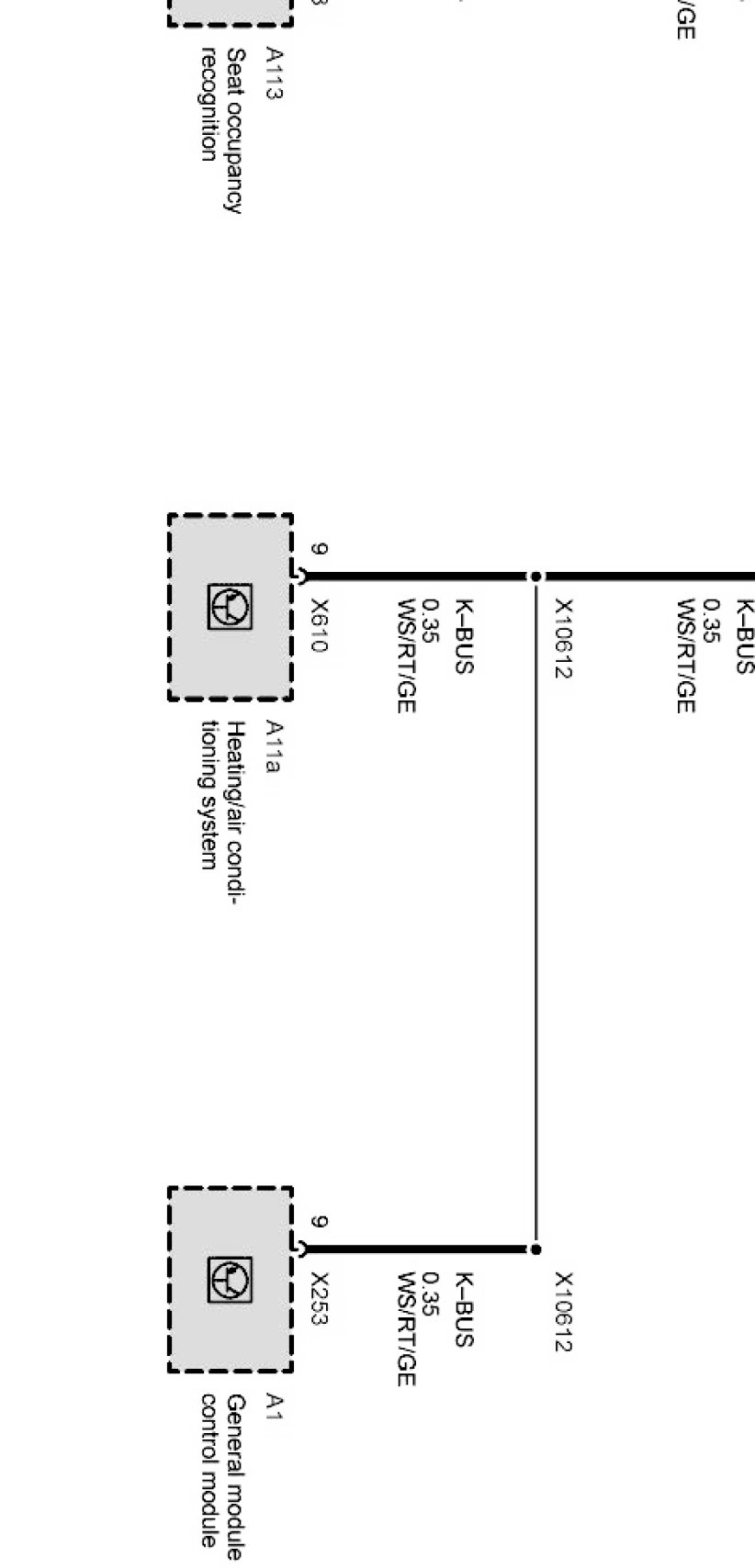

Connector X10659, X10612 Part 4:
