OBDII Socket (Z Series_Z4-E85/E86 With M54 Engine As of 09/04)

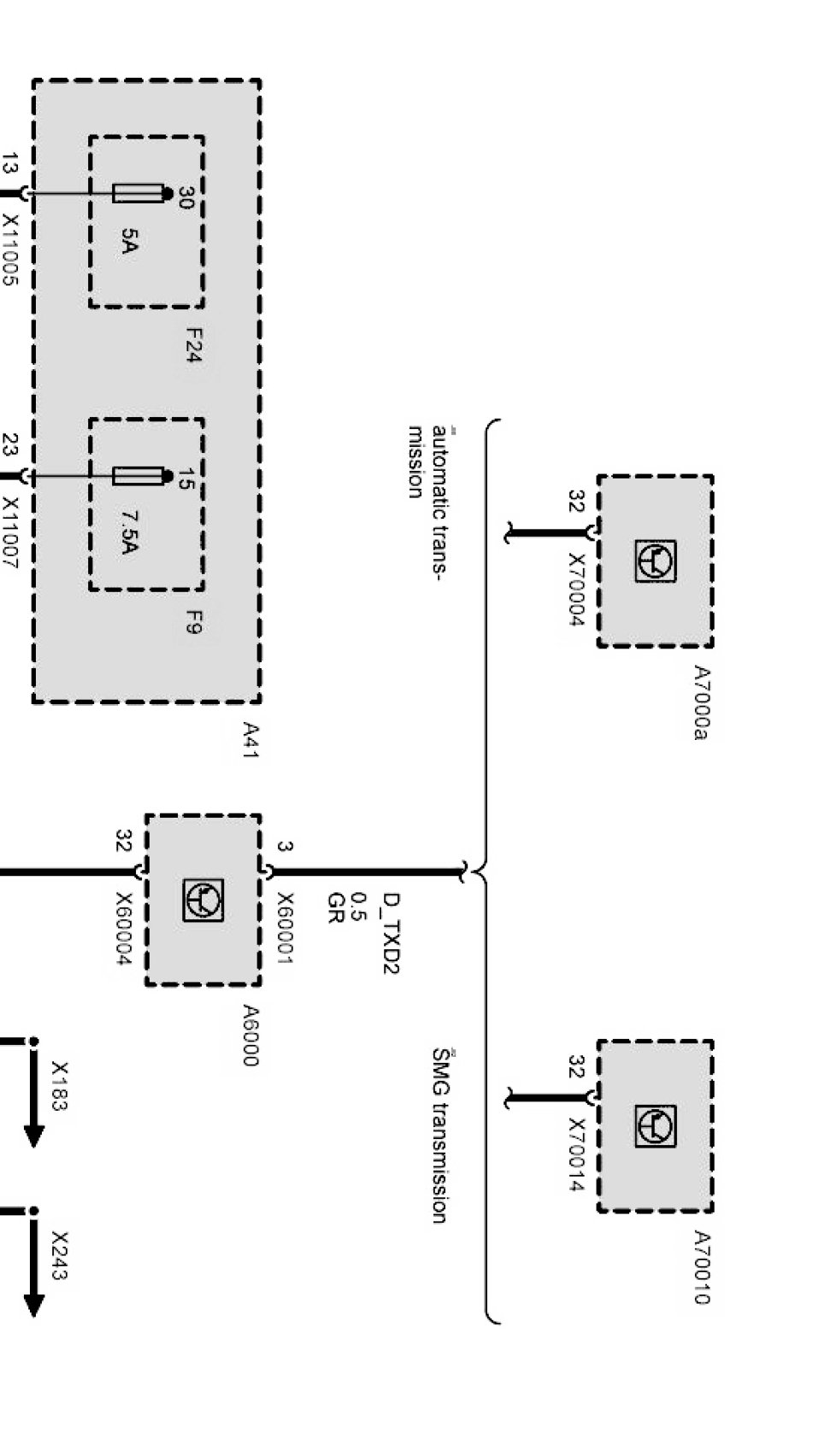

OBDII socket Part 1:

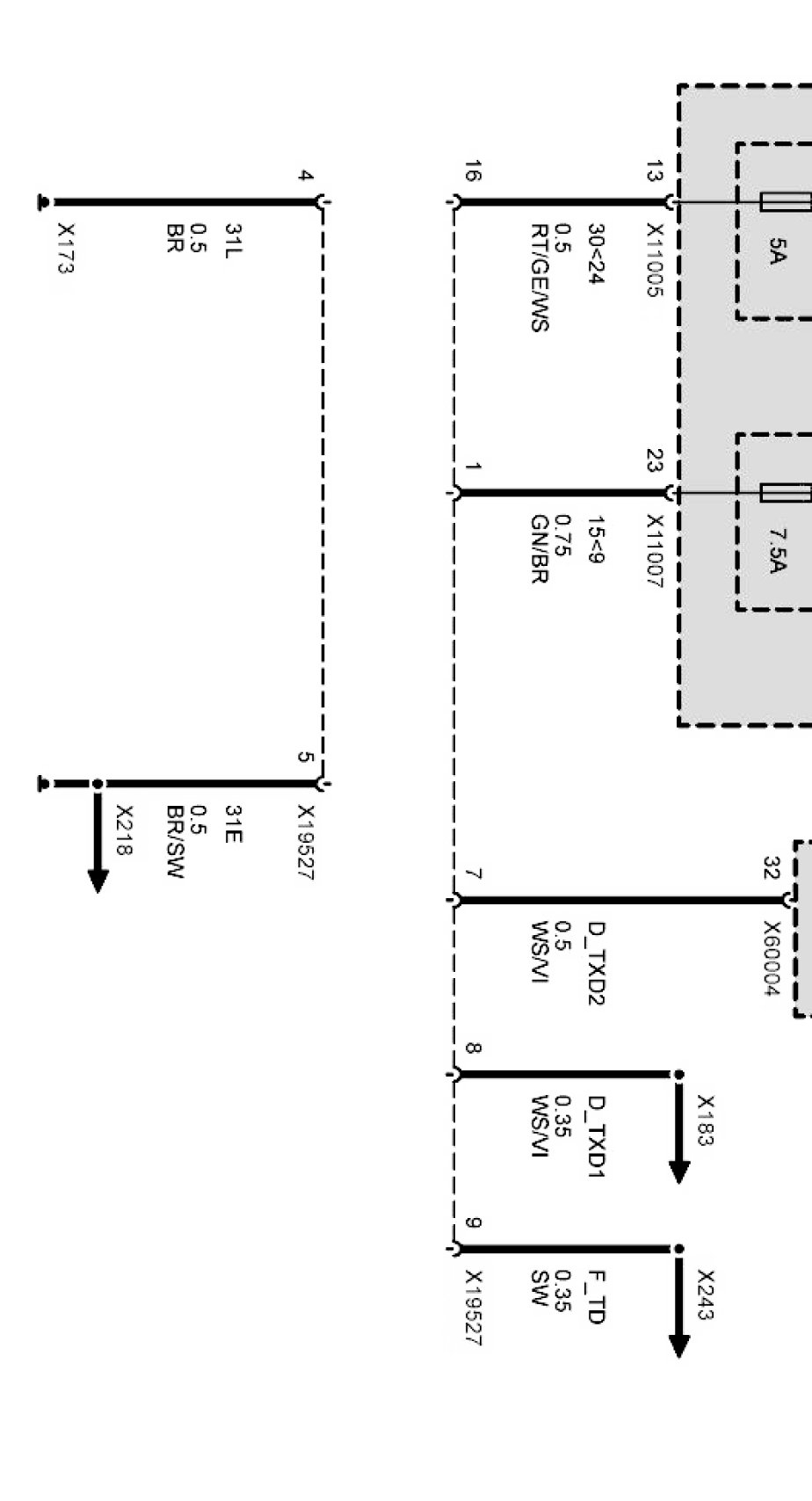

OBDII socket Part 2:
