Home >> BMW >> 2008 >> Z4 3.0si Coupe (E86) L6-3.0L (N52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Sound Output >> Speaker (Stereo System E85)

Speaker (Stereo System E85)

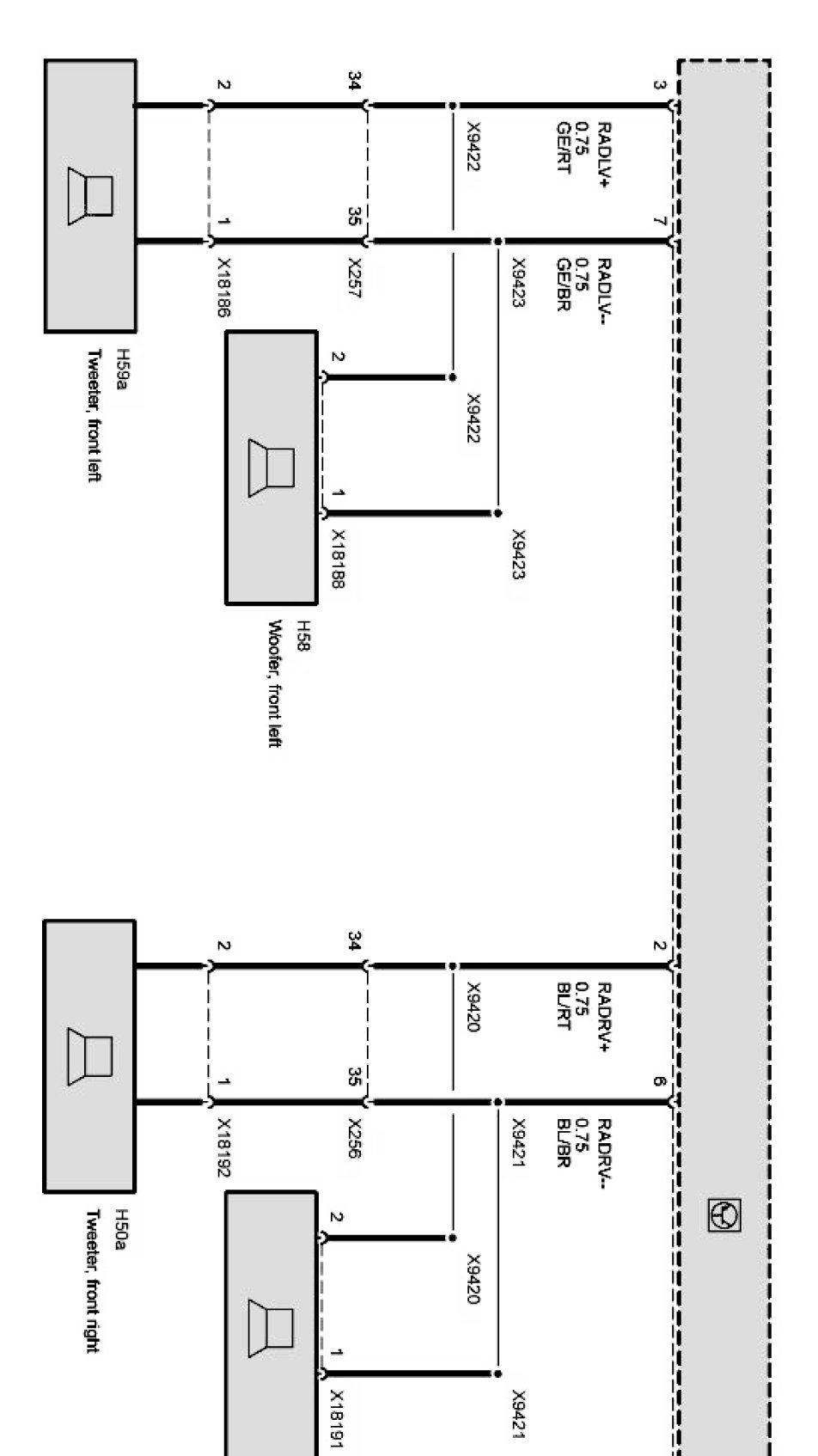

Speakers Part 1:

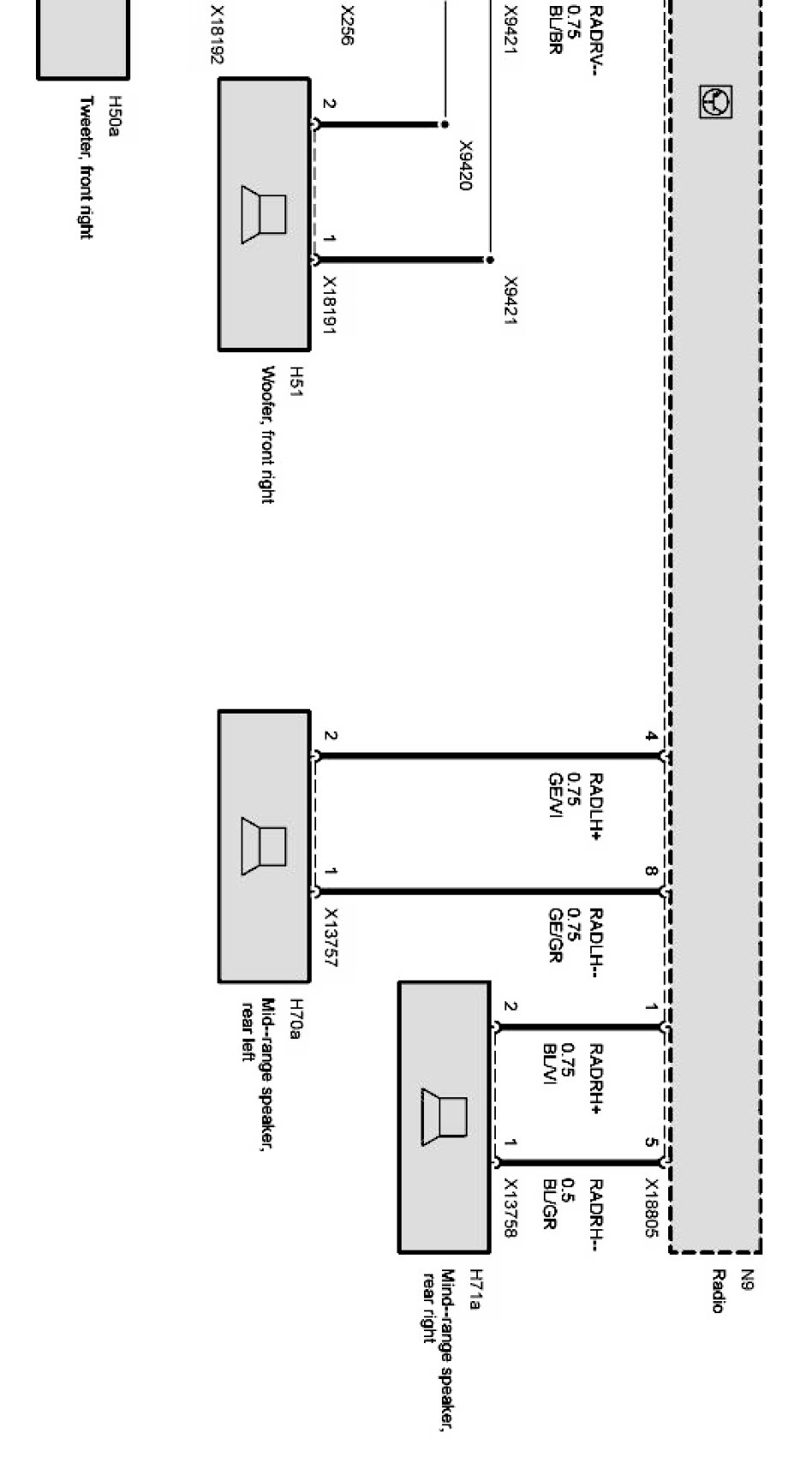

Speakers Part 2:
