X610
>>
A11A Heating/A/C System (Z Series With IHKA Integrated Heating/A/C Control E85)
A11A Heating/A/C System (Z Series With IHKA Integrated Heating/A/C Control E85)

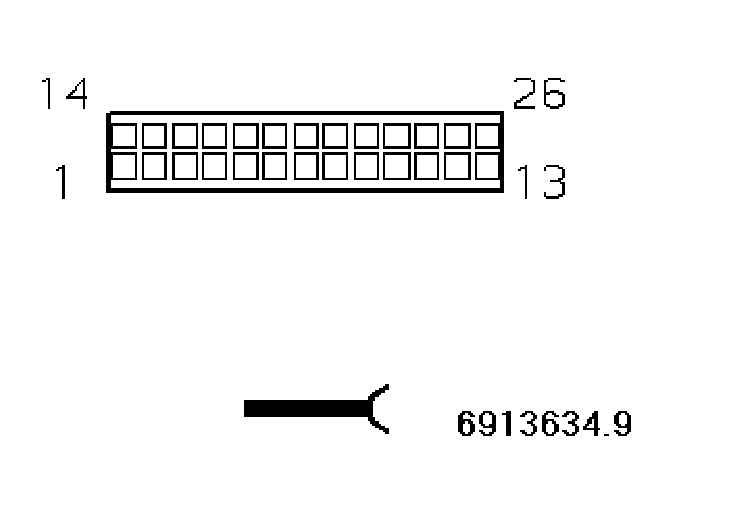

X610:

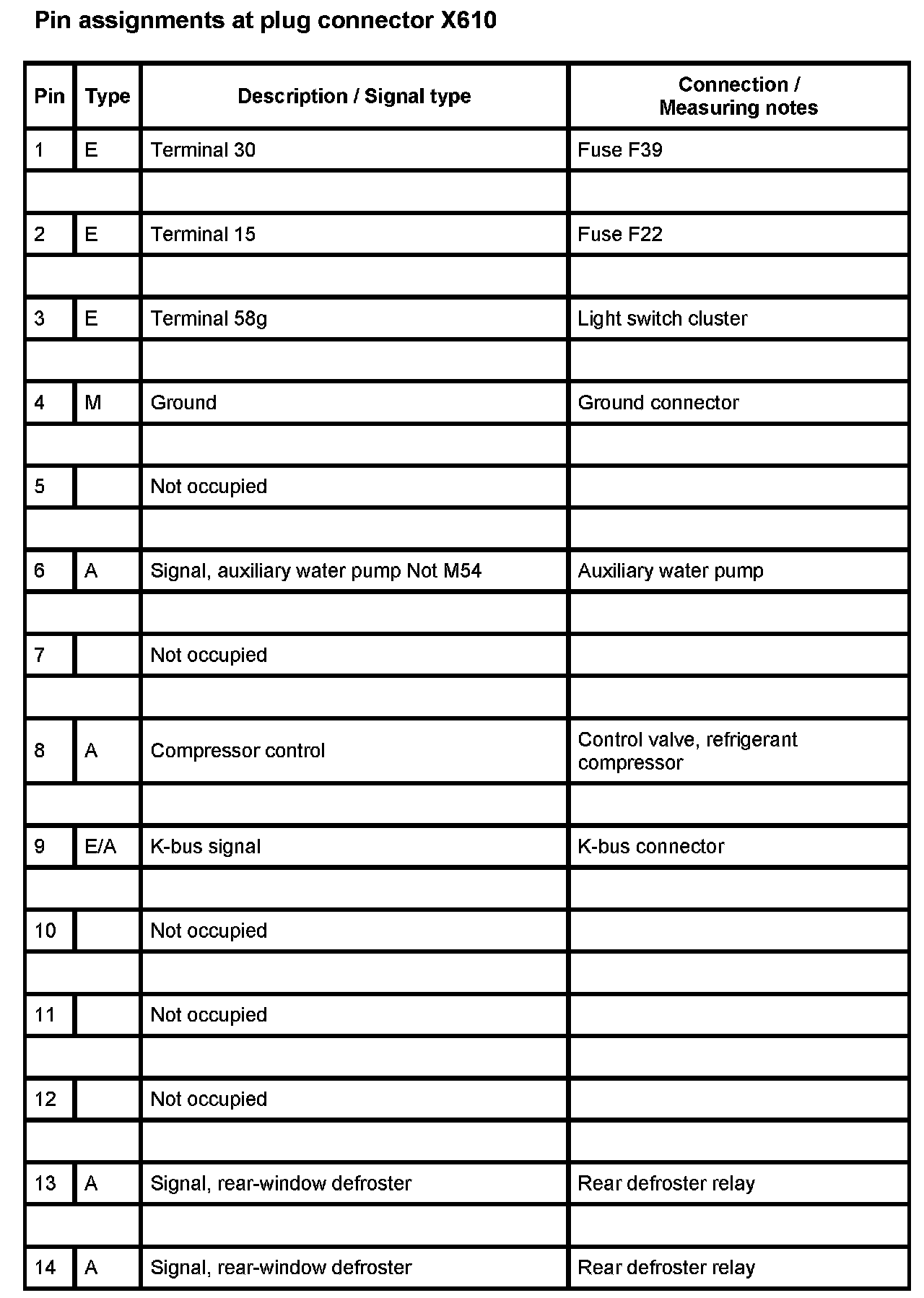

X610 - Part 1:

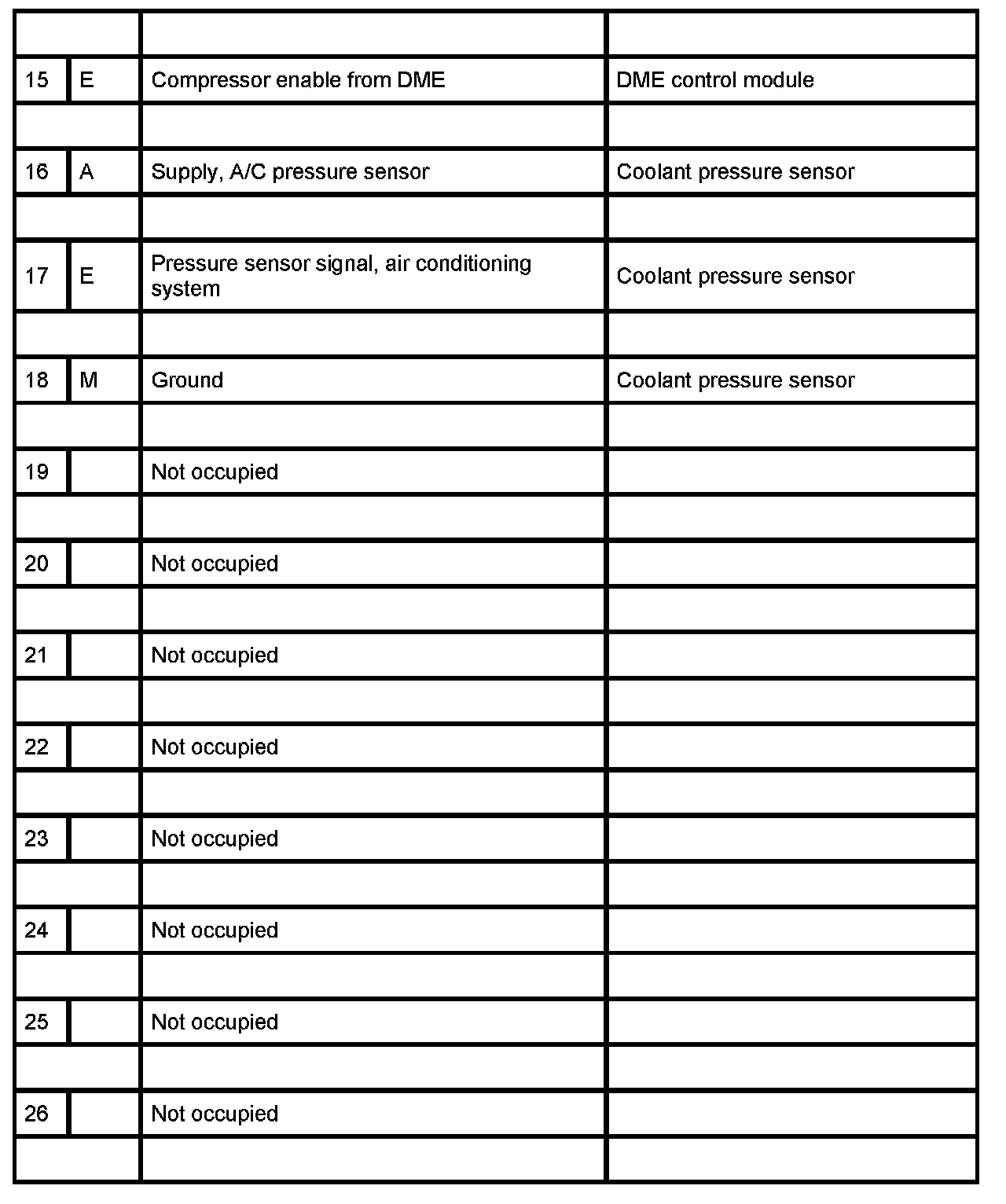

X610 - Part 2:
