Rear Side Trim Panel / Removing and Installing/Replacing Rear Left or Right Upper Side Trim Section

51 43 010 Removing And Installing/Replacing Rear Left Or Right Upper Side Trim Section

Necessary preliminary tasks:
- Remove panel for storage box
- Remove trim behind rollover bar
- Remove trim for rear speaker







Release screws (1) on side trim (2).

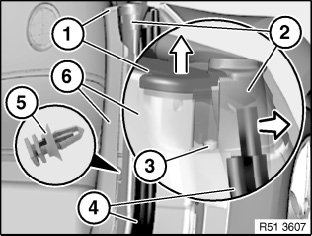

Pull off hardtop locating point cover (1) towards top.
Bend back trim (2) for hardtop locating point and release door seal (4) in covered area of trim (6).
Unscrew bolt (3).
Release clip (5).

Release screws (2).







Feed out trim (1) under rollover bar trim (3).

Installation:
Make sure end ring is correctly seated on rollover bar trim (3).







Installation:
Following parts of side trim top section (6) must not be damaged or missing:
1 Clip
2 Screw locator for hardtop locating point
3 Screw locator for rollover bar
4 Retaining hooks
5 Screw locator for speaker trim
