Removing and Installing/Replacing Panel For Roof Pillar At Front (A-Pillar), Left or Right

51 43 201 Removing And Installing/Replacing Panel For Roof Pillar At Front (A-pillar), Left Or Right

Necessary preliminary tasks:
- Remove trim for front roofliner

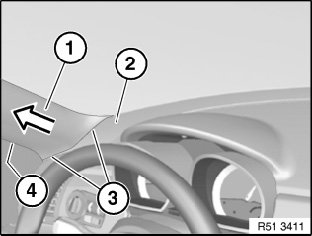

Feed panel (1) in direction of arrow out of instrument panel (2) and remove.

Installation:
Make sure guides (3) of panel (1) are correctly seated in associated openings in instrument panel (2).
Feed in panel (1) under seal (4).
