51 16 366 - Removing and installing right glovebox with housing (without active knee protection)

51 16 366 Removing And Installing Right Glovebox With Housing (without Active Knee Protection)







Open glovebox.

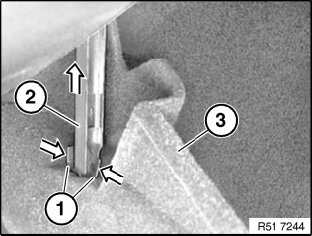

Press catches (1) and unclip damper (2) in direction of arrow from glovebox (3).







Press locks (1) and continue folding glovebox (2) downwards.

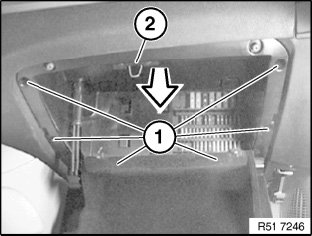

Release screws (1) and remove glovebox with housing (2).
If necessary, release plug-in contacts and cable holders from housing (2).
