Replacing Cover Bowl

41 63 002 Replacing Cover Bowl







Release screw (1).
11AZ Cover housing to side panel 3 Nm
Turn cover (2) through approx. 45° and lever out in direction of arrow.







Installation:
Locks (1) on left/right of cover (2) must not be damaged.

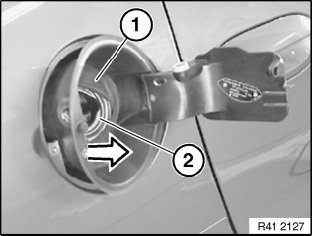

Press retaining strap (1) inwards and remove.
Remove tank cap.
Remove flap for fuel filler neck (2).

Installation:

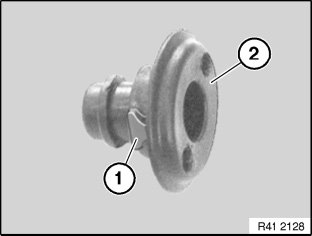

Cover bowl must be replaced if guide (3) or catch (4) is damaged.







Lift seal (1) over fuel filler neck (2).
Lift off cover bowl at rear and pull at an angle towards rear out of opening.
