Engine MIL ON/Codes 2EA9/20A504 Stored In Memory

SI B 17 03 09
Cooling Systems

October 2009
Technical Service

This Service Information bulletin supersedes SI 17 03 09 dated July 2009.

[NEW] designates changes to this revision

SUBJECT
N63 Turbocharger Auxiliary Water Pump Faults

MODEL
E71, F01, [NEW] F02 with N63 engine up to 6/30/2009

SITUATION
The Service Engine Soon lamp is illuminated with the following fault codes stored in the DME control module:

^ (E71) 2EA9 Turbocharger coolant pump, control line, electric, 0x1016 - line interruption

^ (F01, [NEW] F02) 20A504 - Turbocharger coolant pump, control line, electric: line interruption

CAUSE
An internal component fault of the auxiliary water pump will cause it to not power up intermittently. Improved pumps went into production on 6/30/2009.

PROCEDURE

Replace the auxiliary water pump for the turbochargers with improved pump P/N 11 51 7 589 636. Refer to Repair Instruction RA11 53 090 on replacement of the pump and proper coolant bleeding procedures.

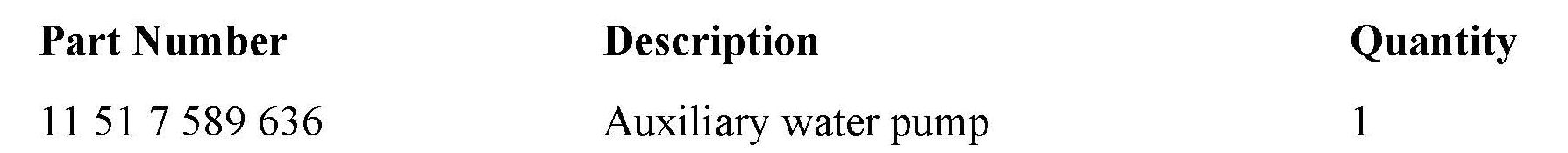

PARTS INFORMATION

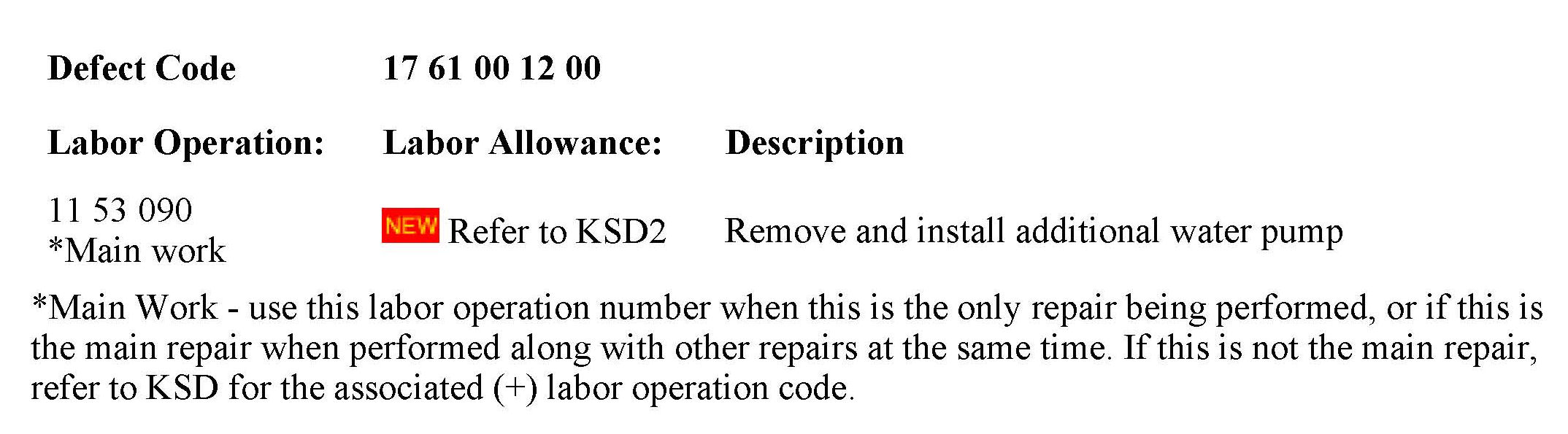

WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Warranty, or the Certified Pre-Owned program.
