Fault Profile: Instrument Cluster 0307

Fault patterns: Instrument cluster

Instrument cluster The instrument cluster is a complex control module with a large number of possible fault patterns. The following list contains known symptoms of the functional areas in general, display / indicator lamps and pointer instruments.

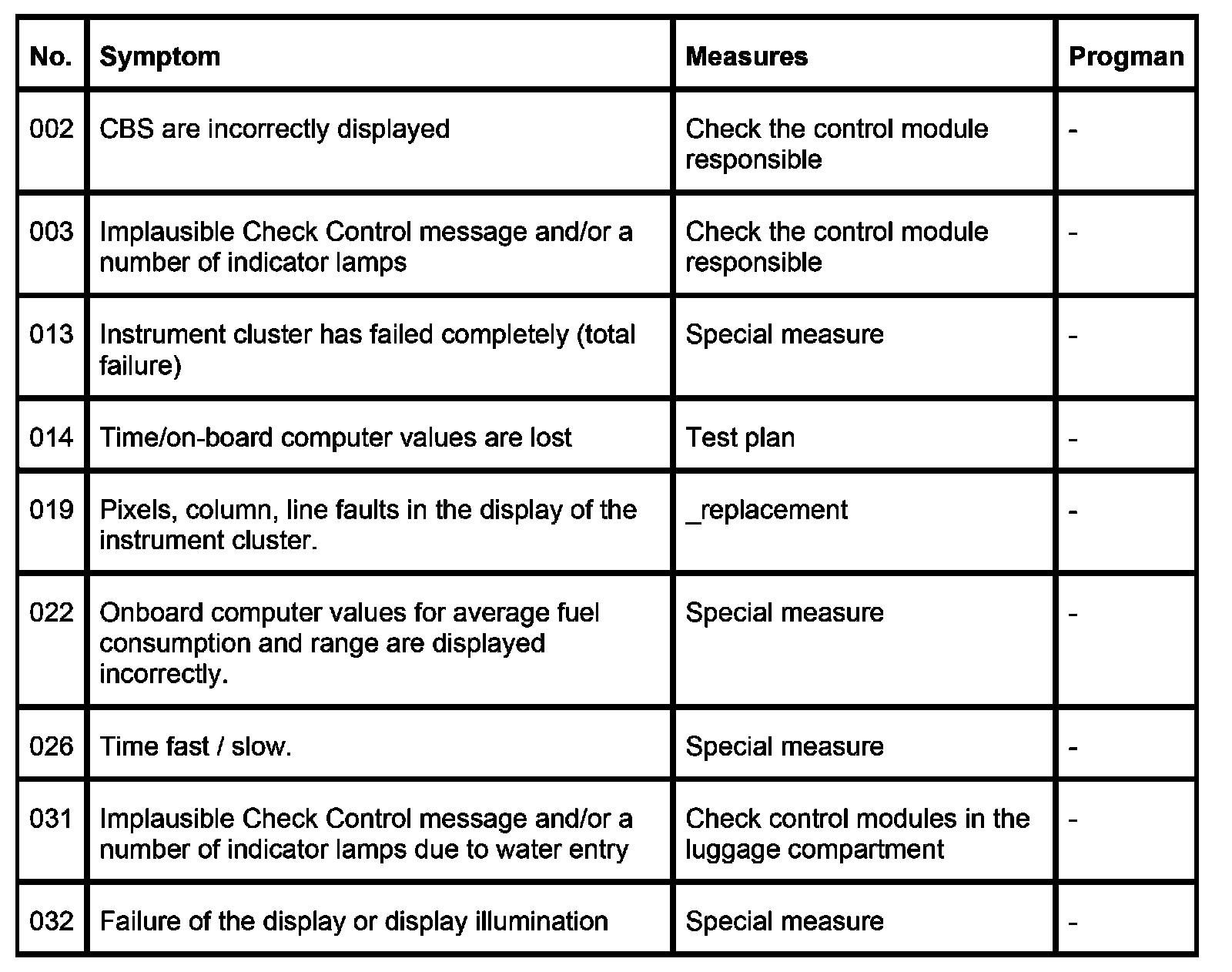

General

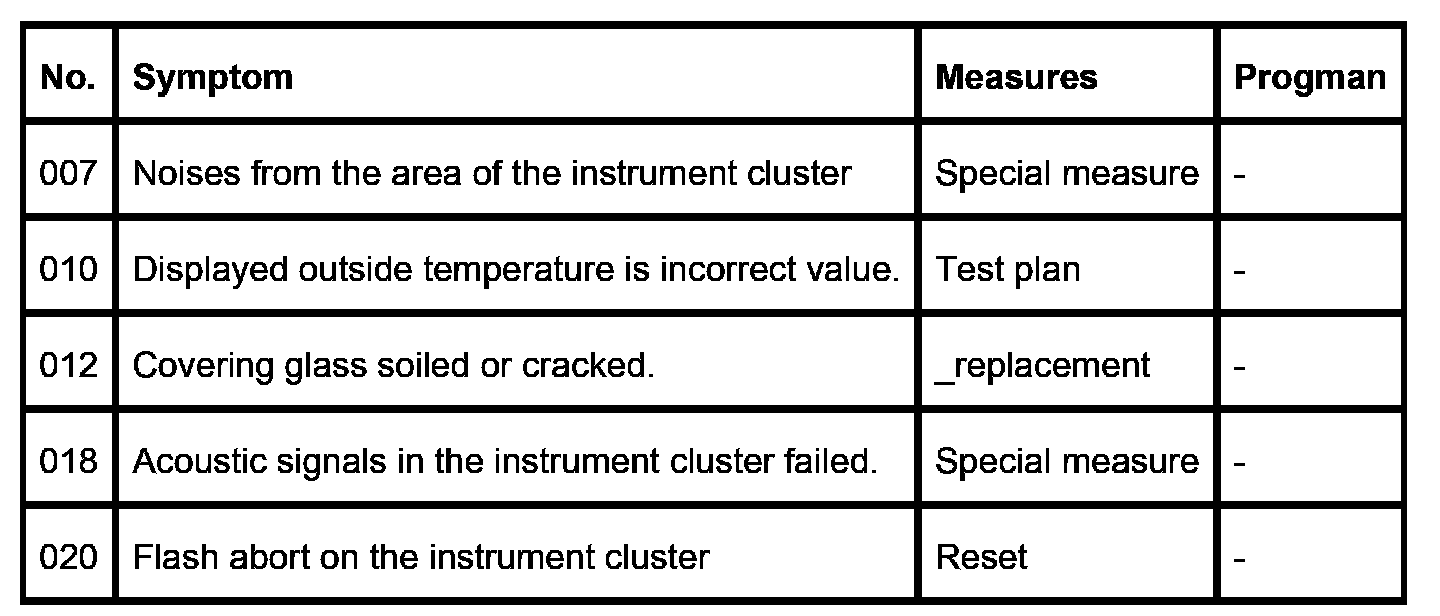

Display/indicator lamps

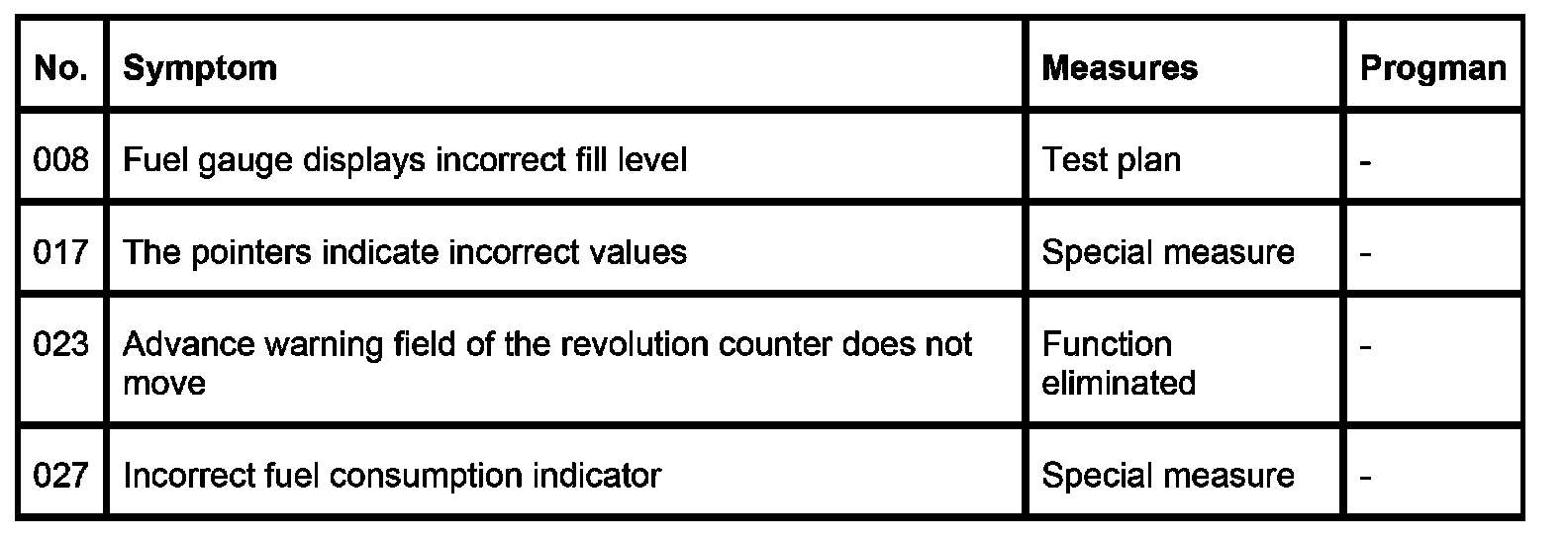

Pointer instruments
