Fogging Sensor: Service and Repair

64 11 970 - Replacing fogging sensor (up to 10/08)





Necessary preliminary tasks:
- Remove two-part mirror base cover

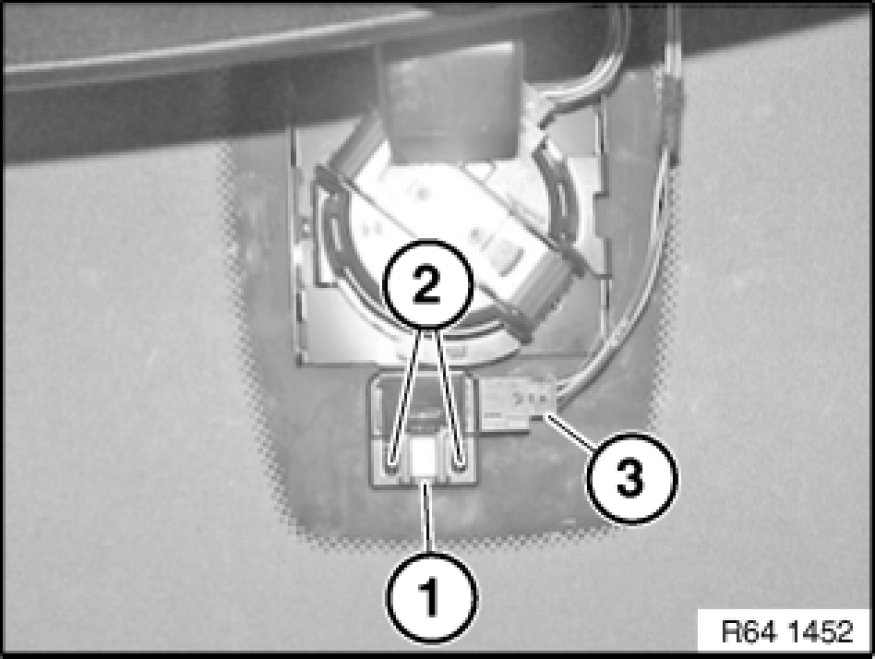

Unclip fogging sensor (1) from retaining tabs (2).
Disconnect plug connection (3).

Installation:
Make sure fogging sensor (1) is securely seated.





Installation:

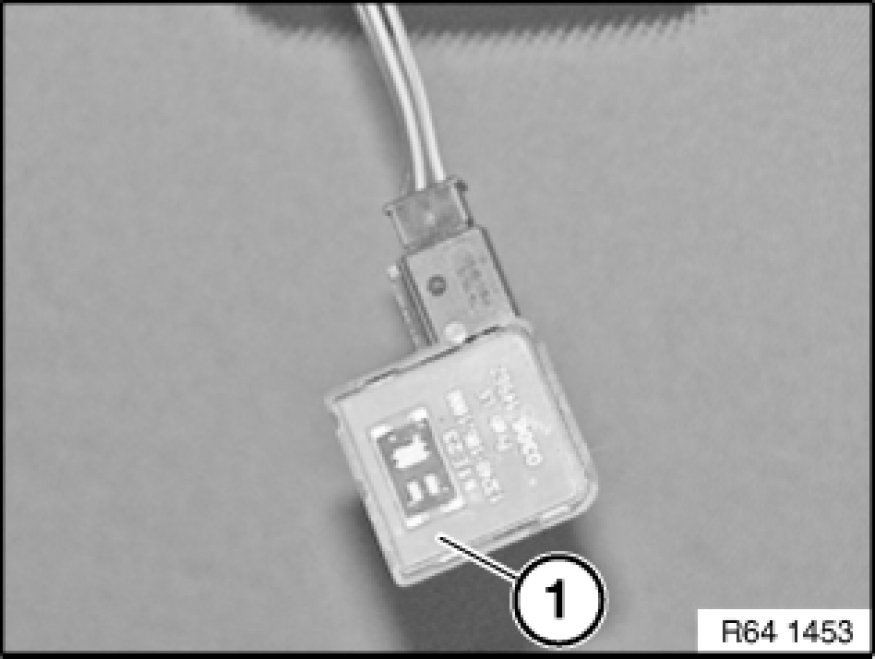

Sensor surface (1) must be clean and free from grease.
