24 00 050 Installing Replacement Transmission (GA6HP19Z)

24 00 050 - Installing replacement transmission (GA6HP19Z)





Drain automatic transmission fluid at oil drain plug.
Tightening torque: 24 11 6AZ 24 11 Transmission Housing, Transmission Oil Sump.

Important!
After completion of work, program transmission control unit.





Recycling:
Catch and dispose of escaping transmission fluid.
Observe country-specific waste-disposal regulations





Important!
- Before installing replacement transmission, always flush transmission fluid cooler together with lines .
- After completion of work, check transmission fluid level Procedures.
Replacement transmission is supplied filled with transmission fluid.
Use only the approved transmission fluid.
Failure to comply with this instruction will result in serious damage to the transmission.





Necessary preliminary tasks:
- Remove automatic transmission 24 00 030 Removing and Installing Automatic Transmission (GA6HP19Z)

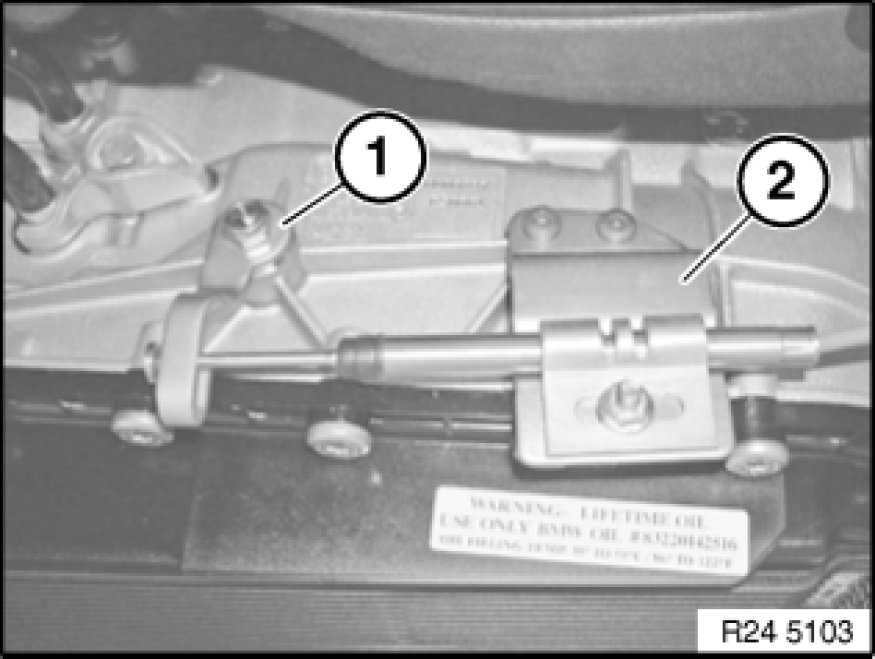

Convert selector lever (1).
Tightening torque 24 51 1AZ [1][2]Shift Linkage, A/T.
Modify holder (2).





Modify transfer box.
Convert transportation lock (1).
Convert all cable holders.
Convert all seal plugs.
Convert protective cap on output shaft.

Important!
After removing transportation lock, secure torque converter against slipping out.

Transmission identification:

- refer to BMW Parts Service.
- On type plate
