23 .. ... Transmission Designations
23 .. ... Transmission Designations
23 .. ... Transmission designations

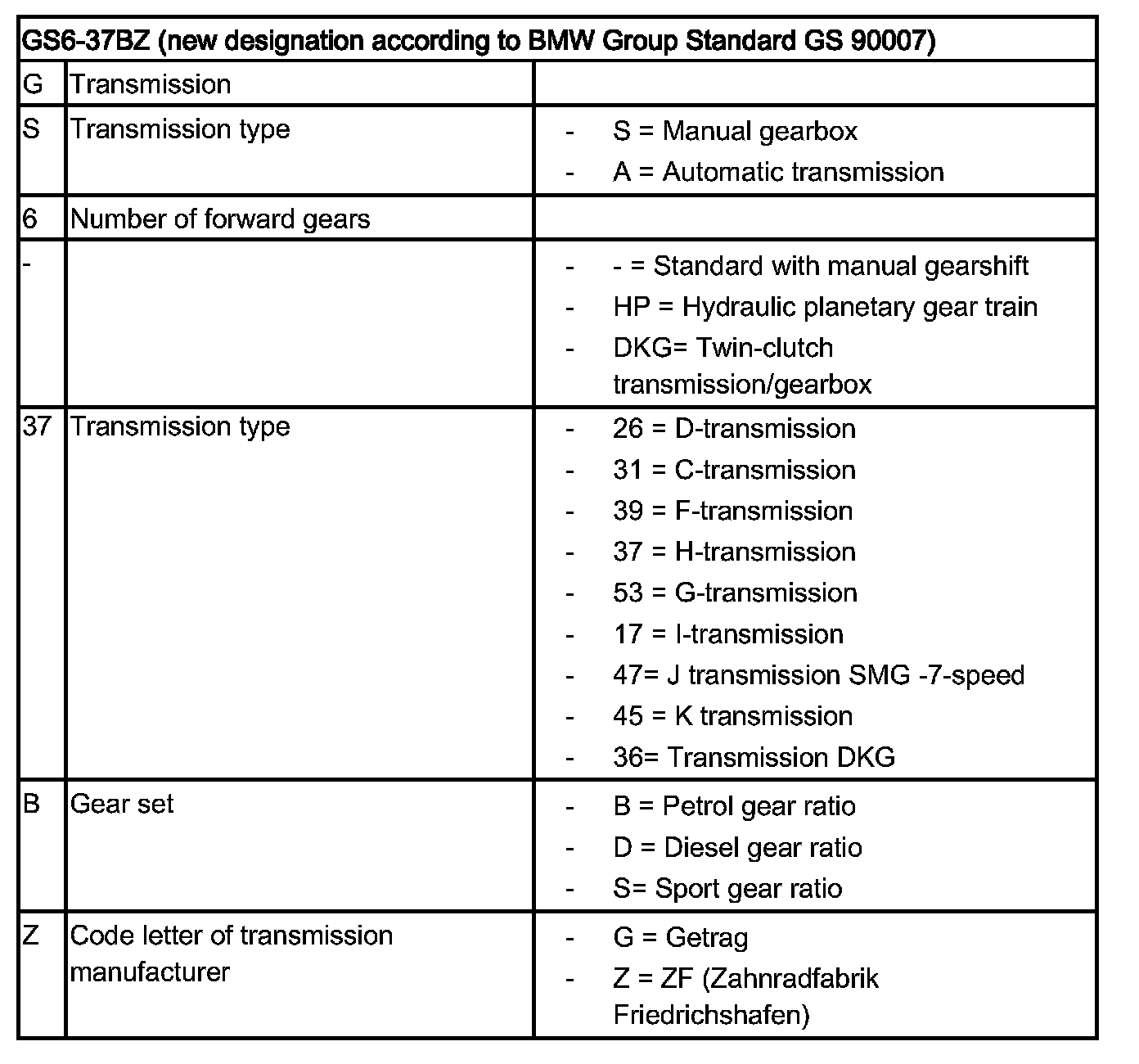

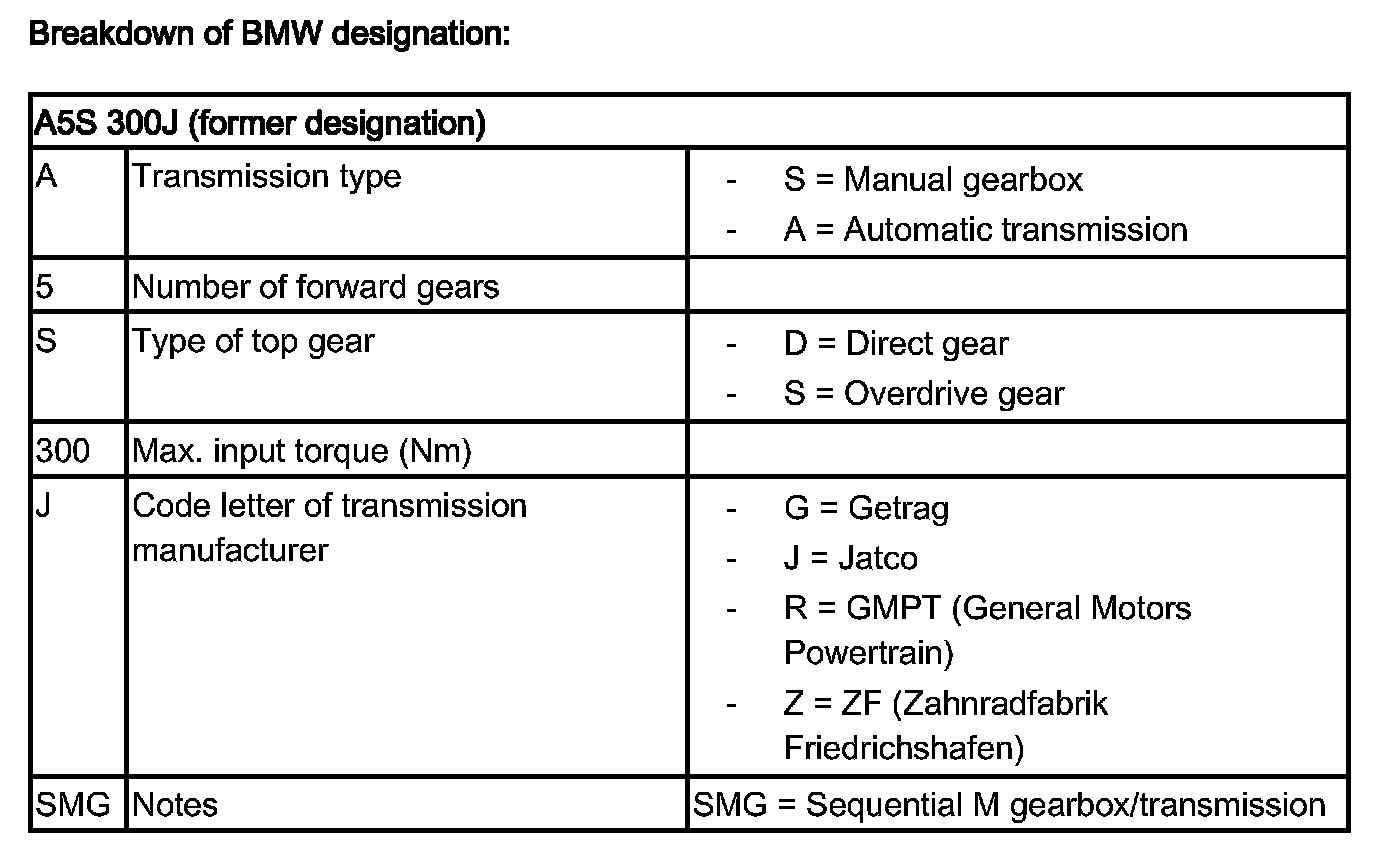

Breakdown of BMW designation:

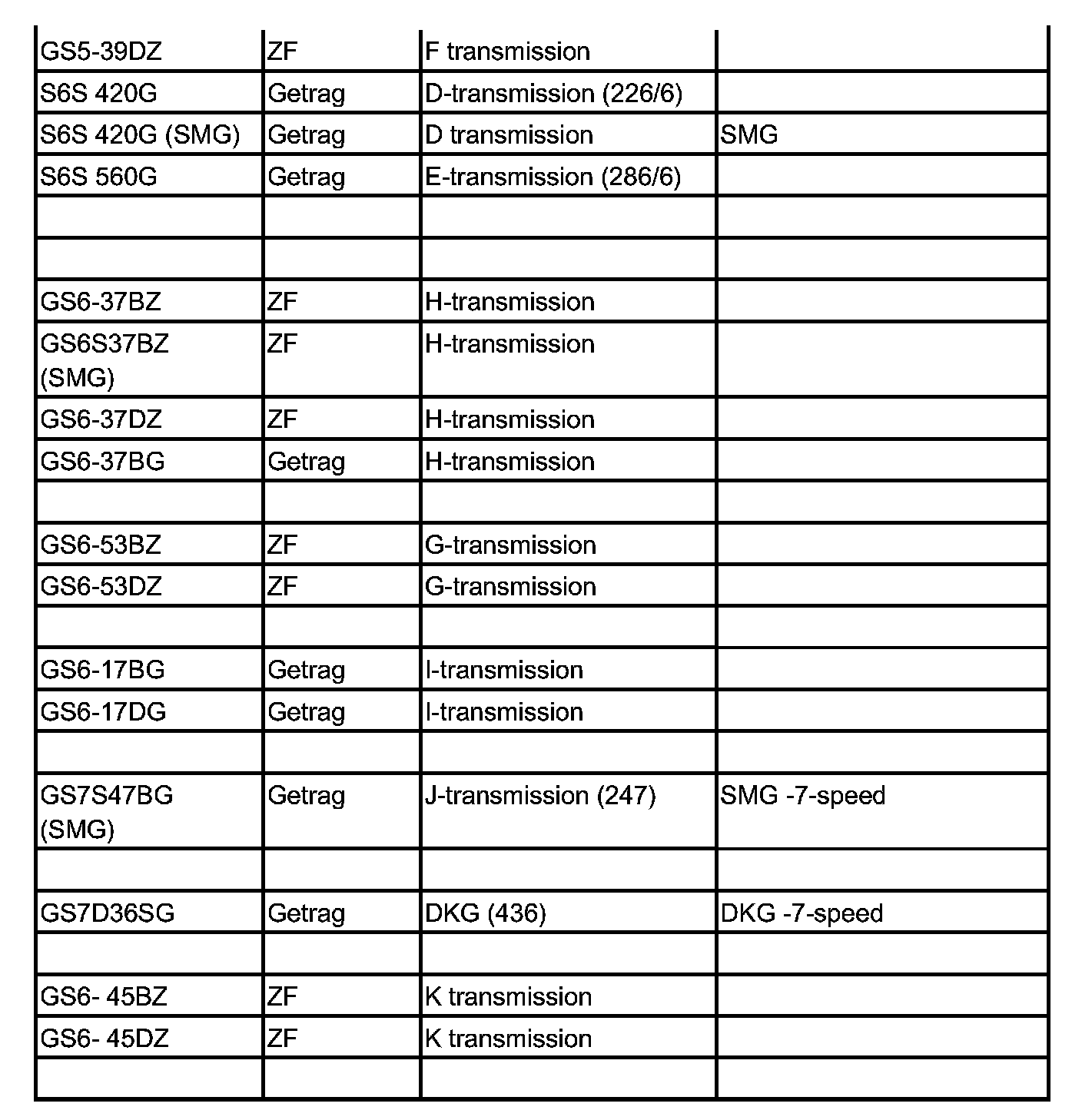

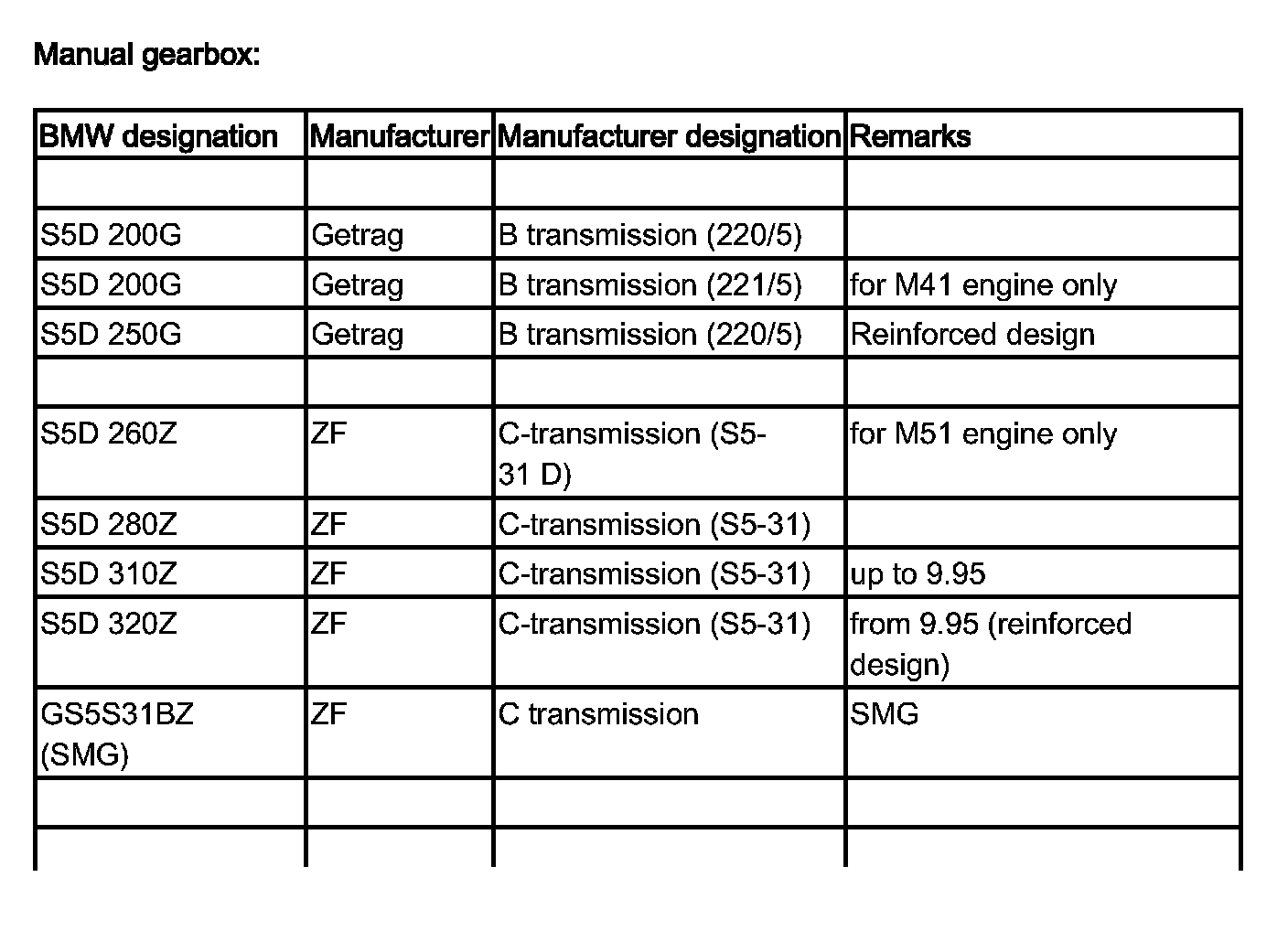

Manual gearbox:

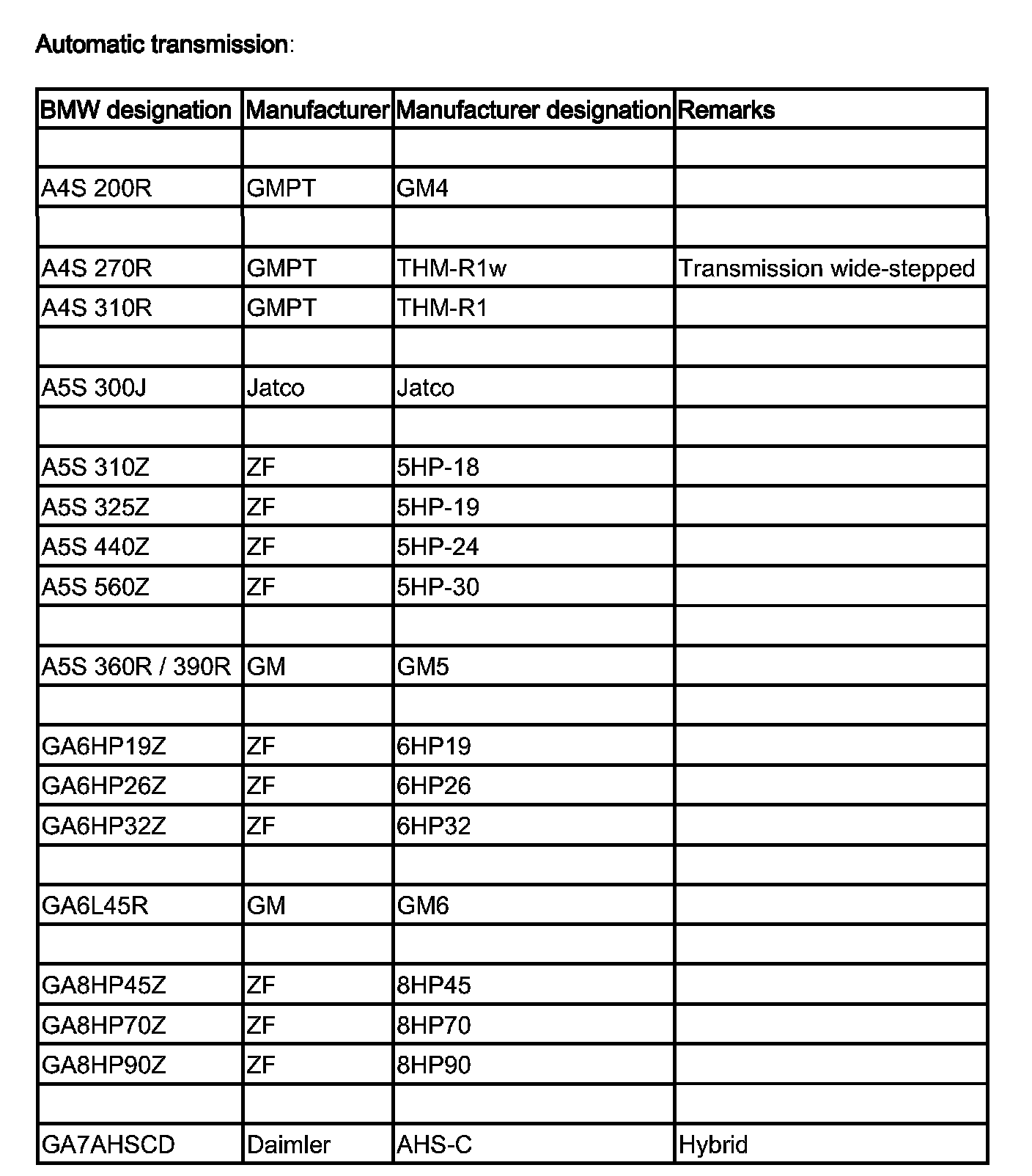

Automatic transmission:
