37 14 515 Replacing Rear Left or Right Ride-Height Sensor

37 14 515 Replacing rear left or right ride-height sensor





Important!
Observe safety instructions for raising the vehicle

Note:
Ride-height sensor holder on rear axle carrier 37 14 2AZ.

Jointed rod on swinging arm 37 14 6AZ.





Important!
Read and comply with notes on protection against electrostatic discharge (ESD protection).

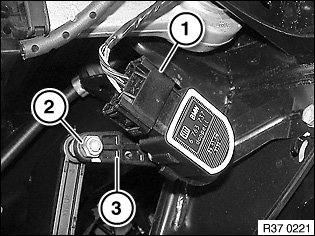

Disconnect plug connection (1).

Release nut (2) and disconnect jointed rod.

Installation:

Sensor lever (3) must point from ride-height sensor to respective rear wheel.

Replace self-locking nut.

Tightening torque 37 14 4AZ.

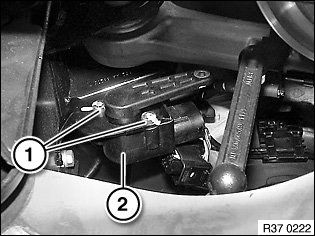

Release screws (1) and remove ride-height sensor (2).

Tightening torque 37 14 3AZ.





After installation:
^ Carry out ride-height calibration
^ Check headlight adjustment, correct if necessary (E70)
