A186 Passenger's Seat Module (Without Multifunction Seat Without Active Seat With Lumbar Support)



A186 Passenger's Seat Module (Without Multifunction Seat Without Active Seat With Lumbar Support)

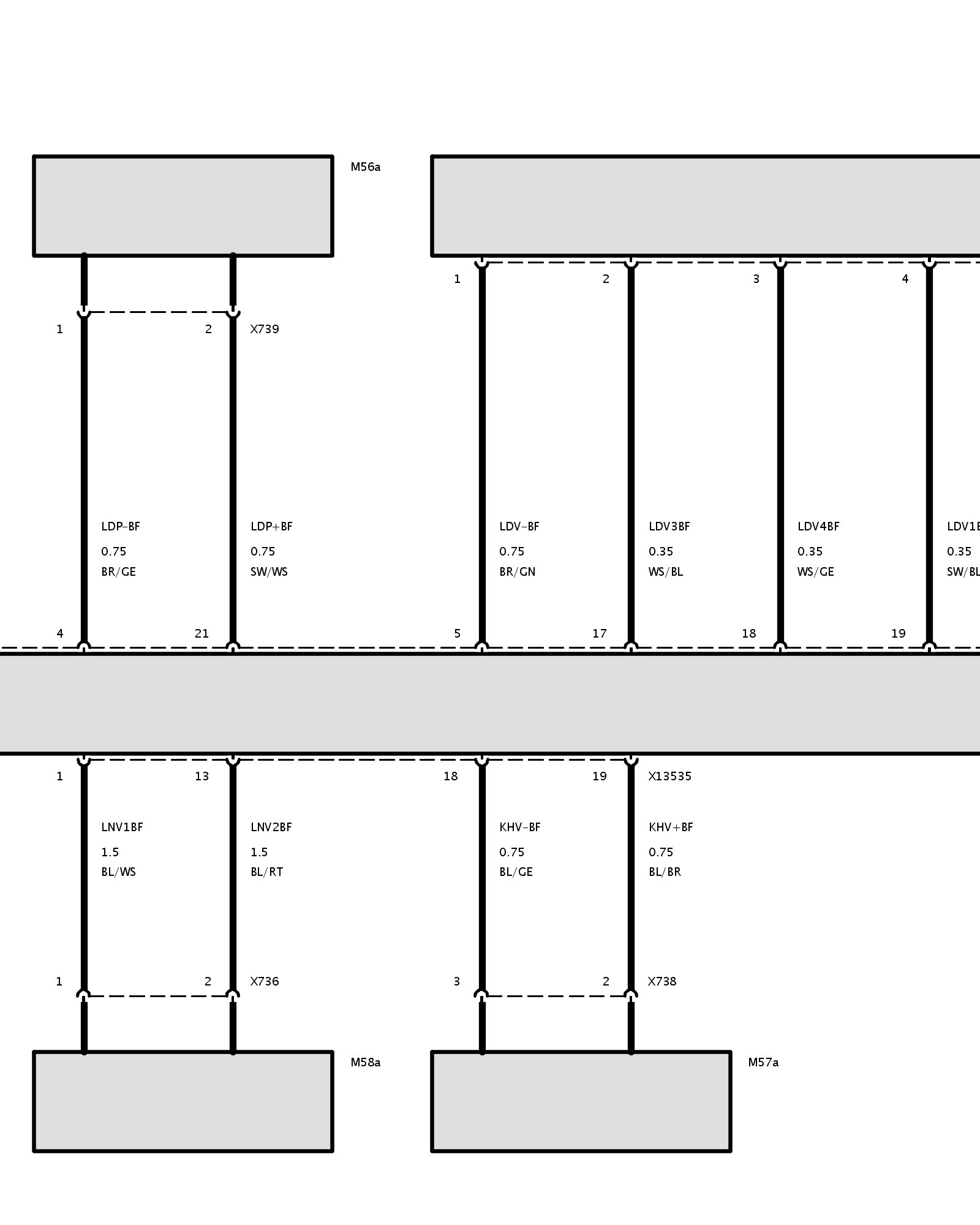

Part 1:

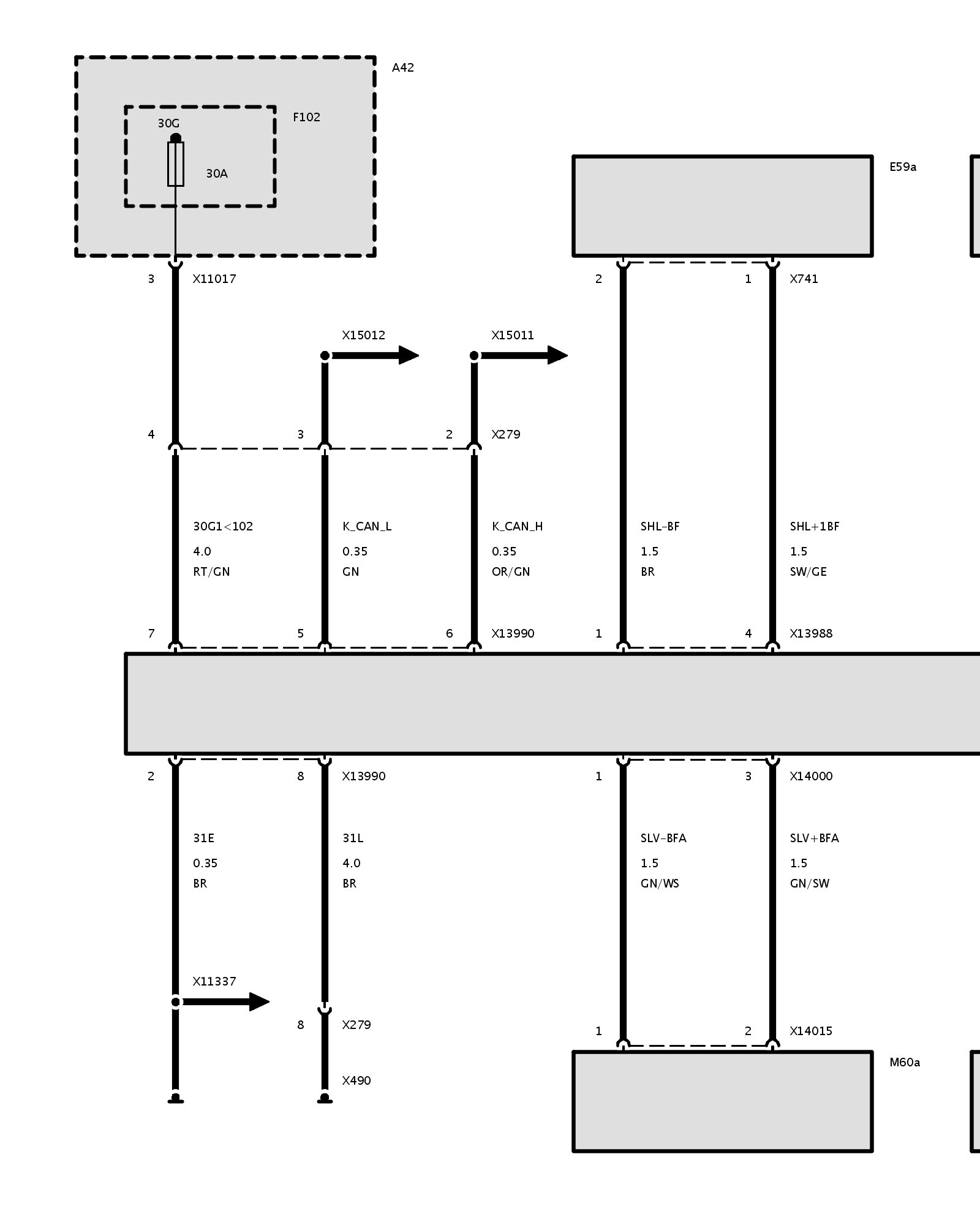

Part 2:

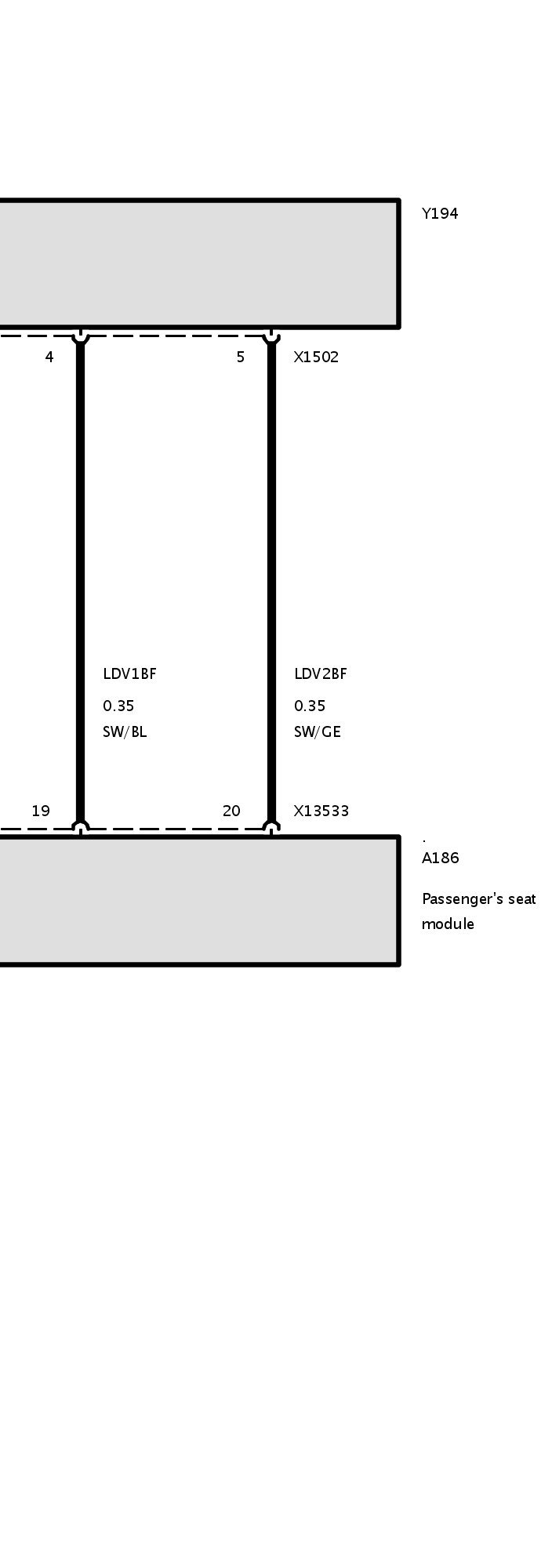

Part 3:

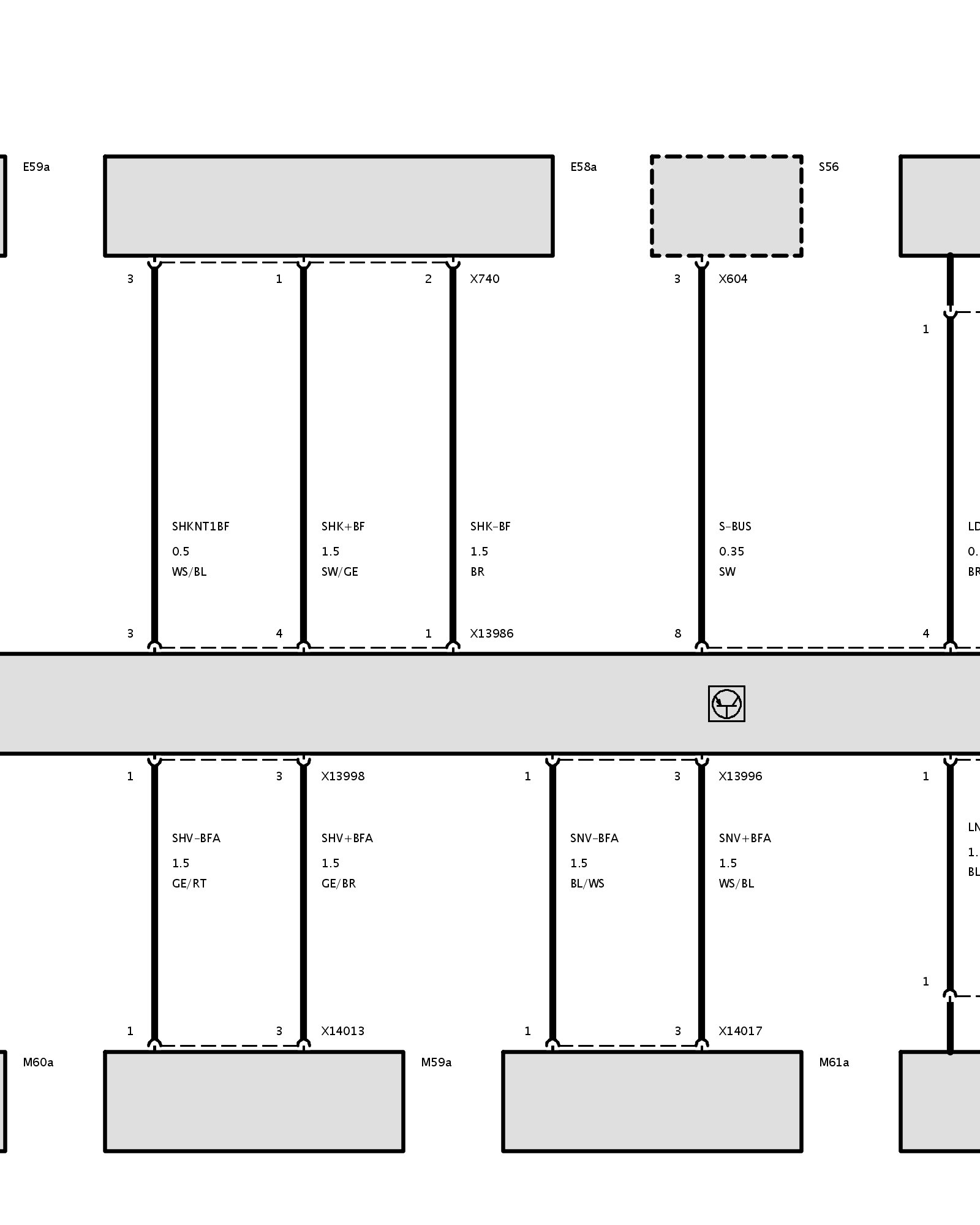

Part 4:
