Fault Profile CHAMP 0907

Fault Patterns: Function Fault BMW Professional Radio 09/07

The BMW Professional (CHAMP) radio is a complex control module with a large number of possible fault patterns. The following list shows known symptoms in the functional area CHAMP audio. Fault patterns from the functional areas of telephone and Telematic services as well as integrated heating / air conditioner control are not covered in this test module.

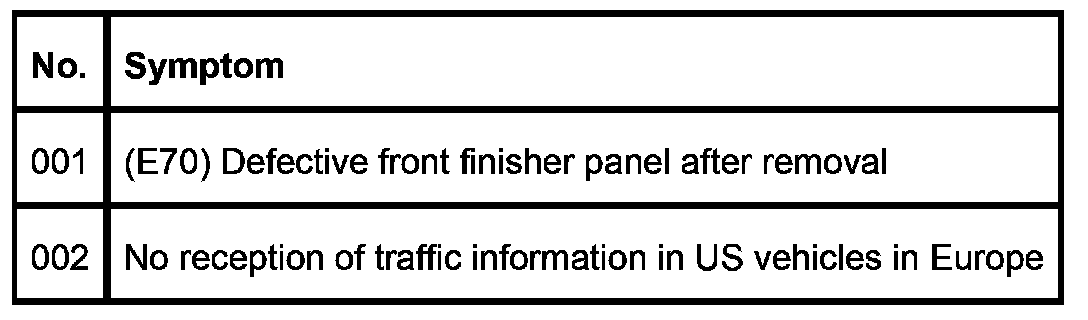

General

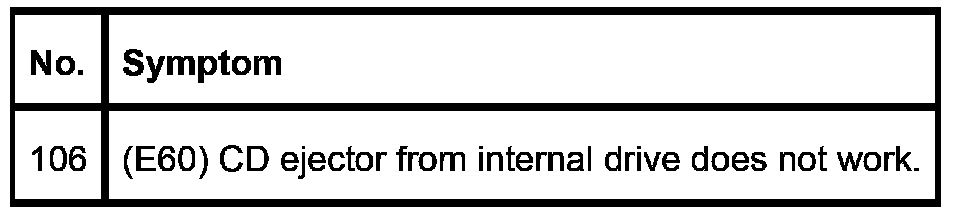

Operation

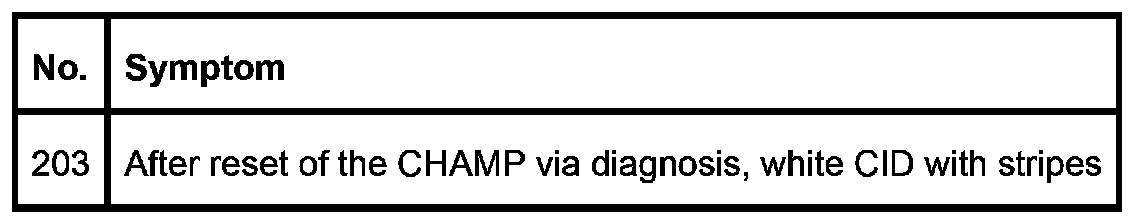

Display

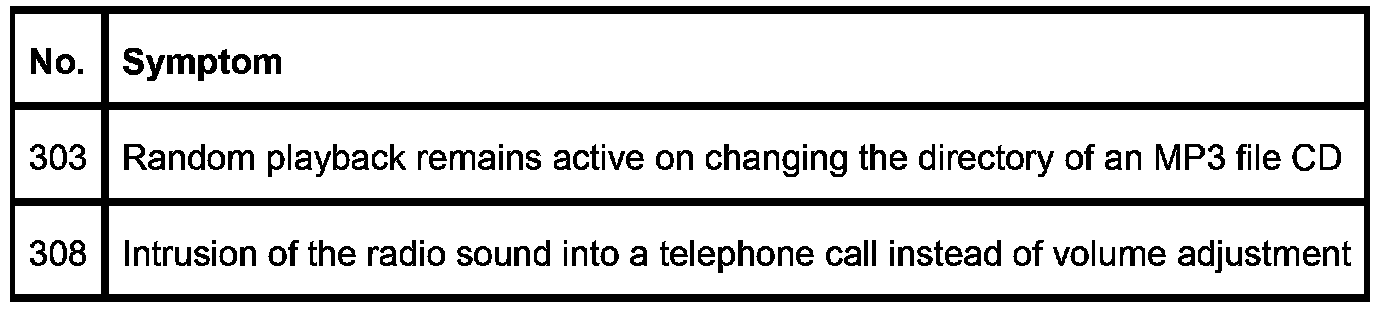

CHAMP audio
