A187 Driver's Seat Module (Without Lumbar Support)

A187 Driver's Seat Module (Without Lumbar Support)

Part 1:

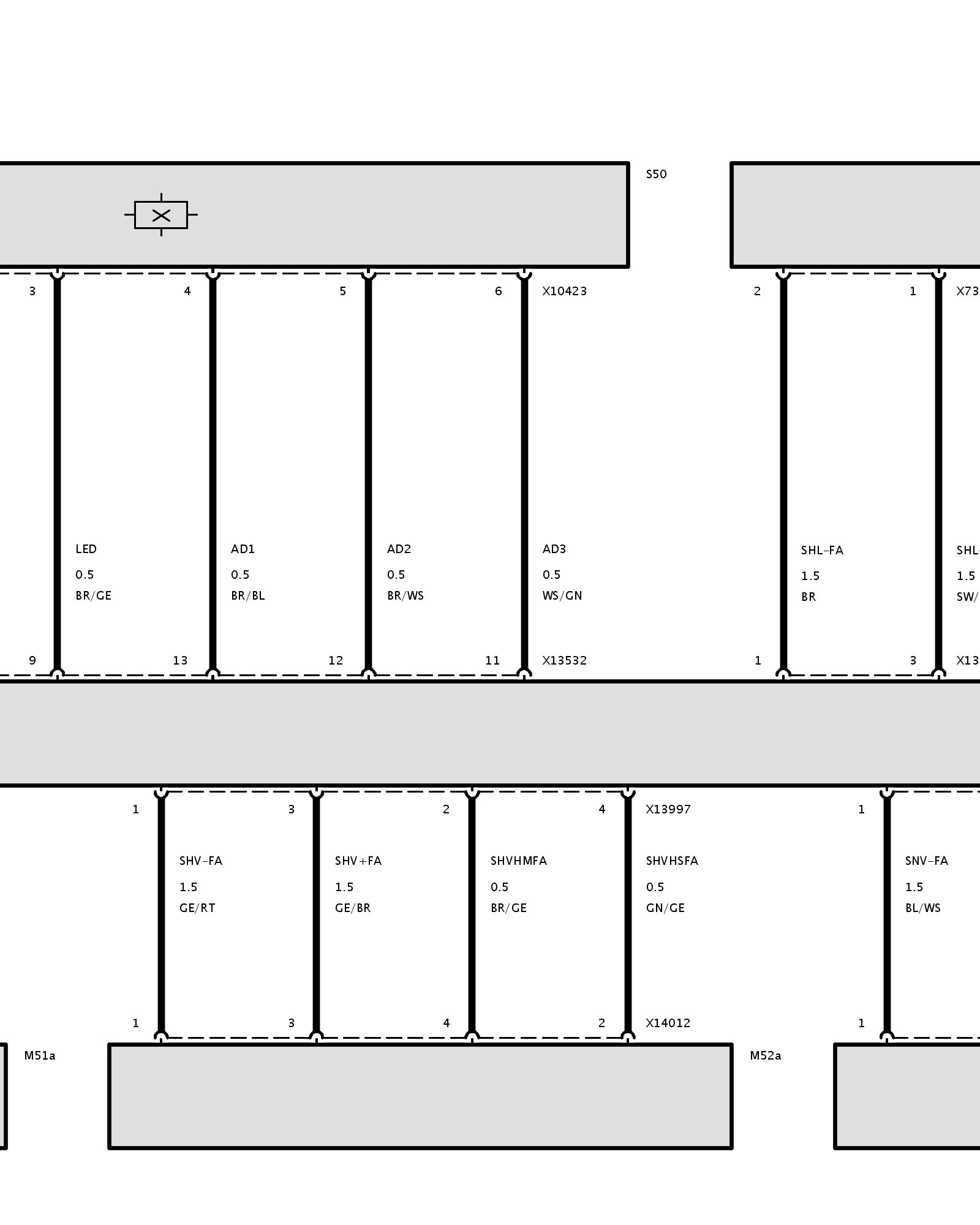

Part 2:

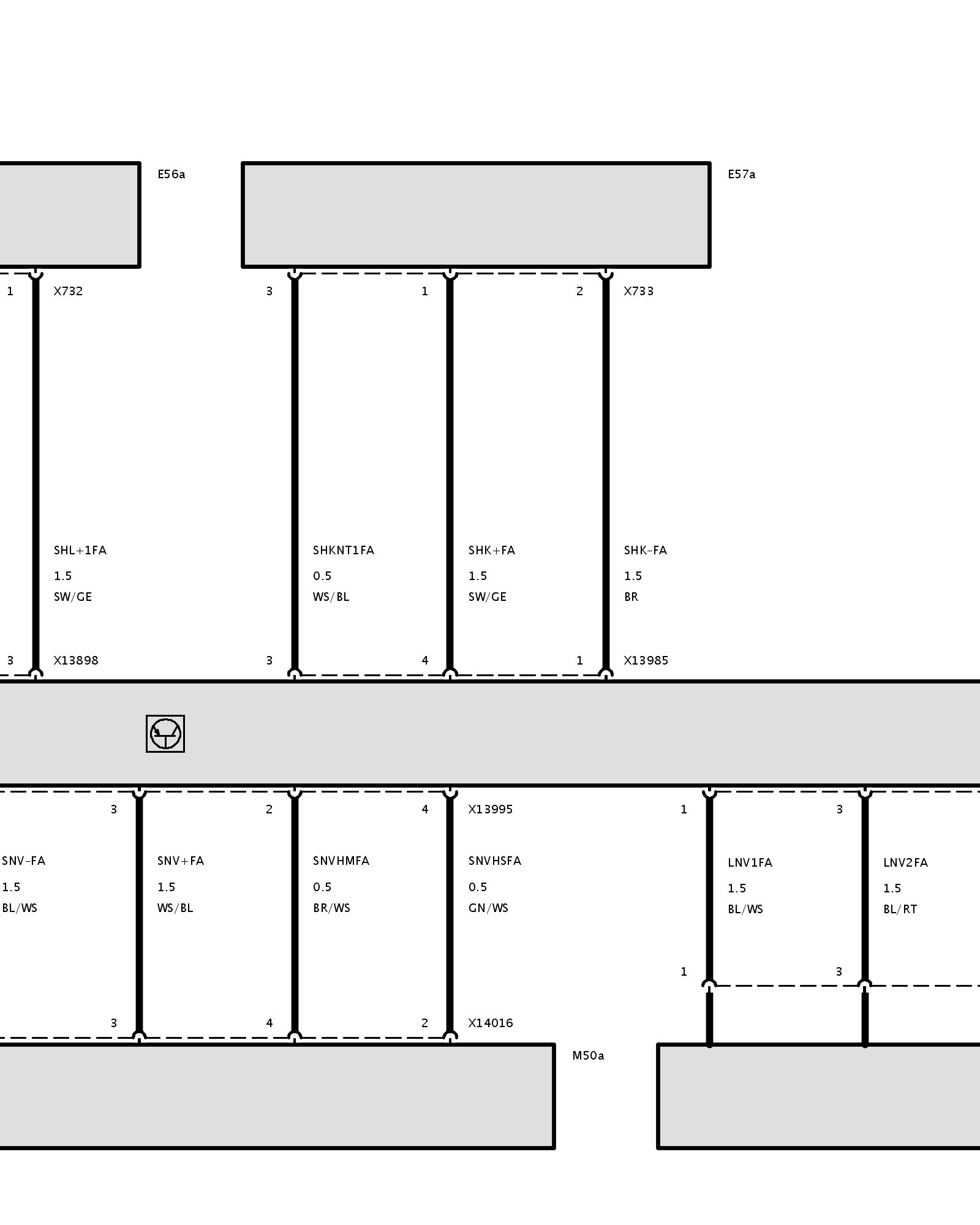

Part 3:

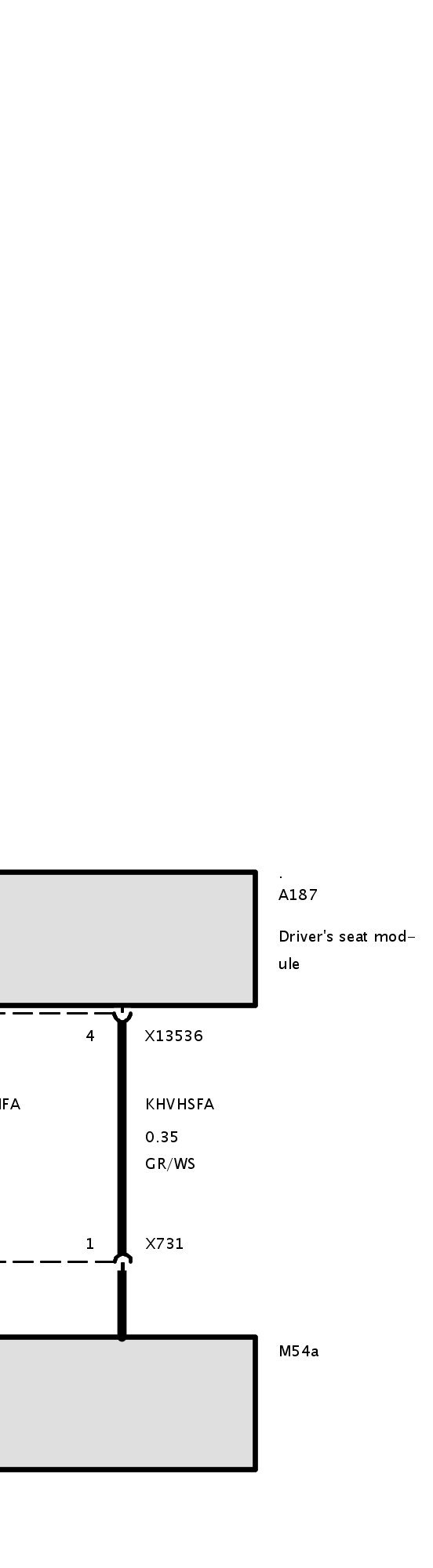

Part 4:

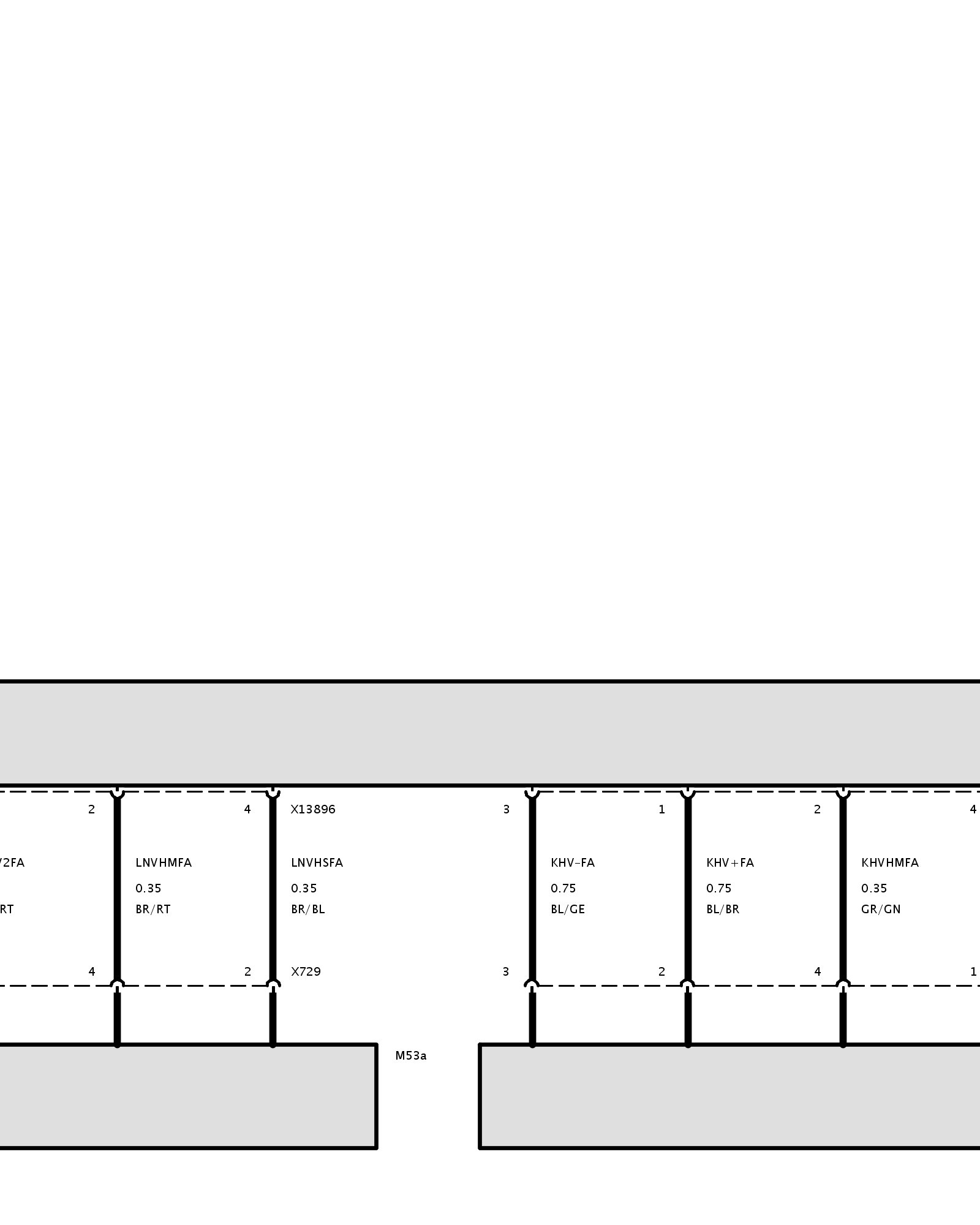

Part 5:
