Home >> BMW >> 2008 >> X6 (E71) L6-3.0L Turbo (N54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> Fuse >> F_Fuses >> F16 >> Fuse 16 (Without Door Mirror With LIN Bus)

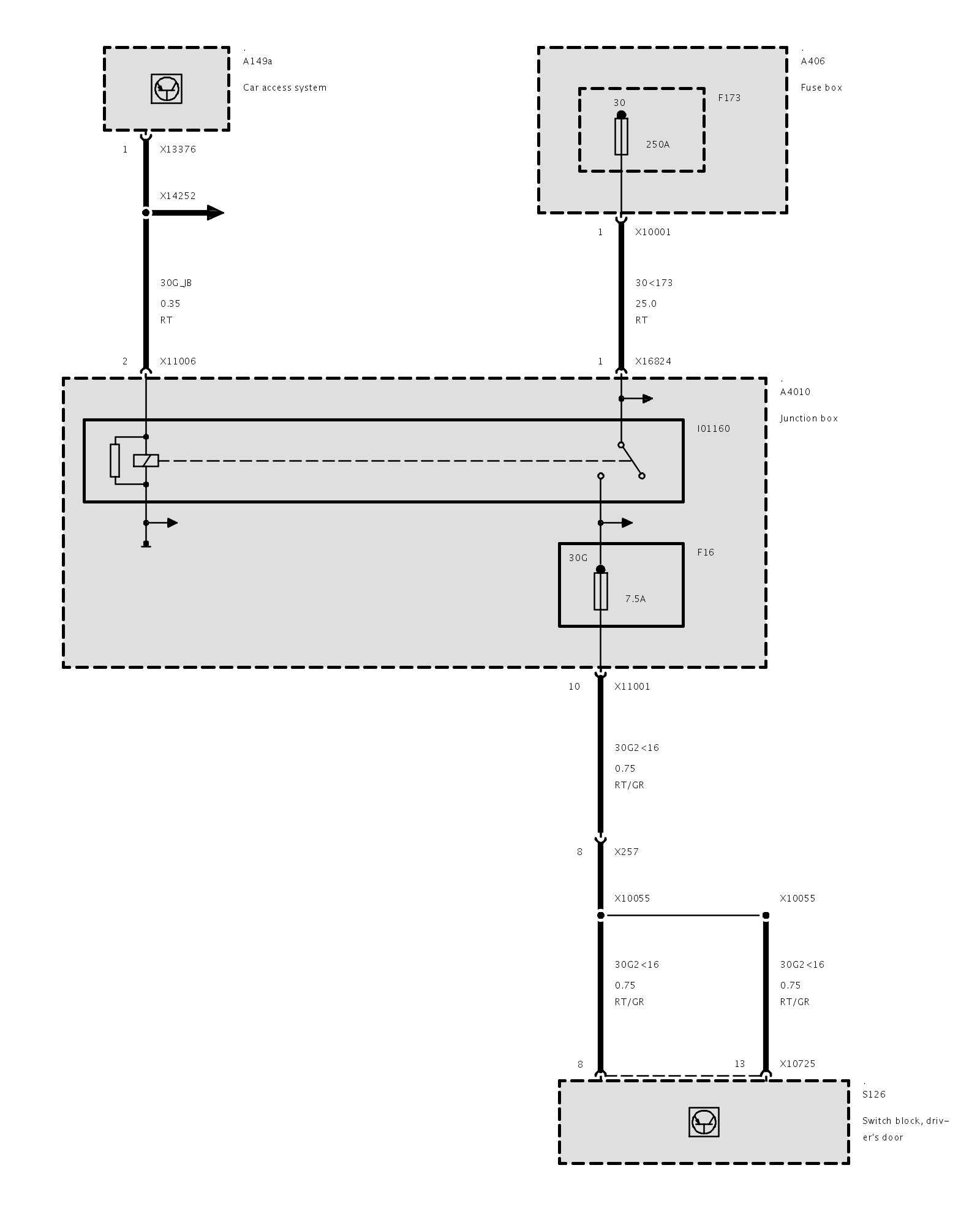

Fuse 16 (Without Door Mirror With LIN Bus)



Fuse 16 (Without Door Mirror With LIN Bus)
