Fuse F112 (SMFA Seat Module, Driver With SMBF Seat Module, Passenger With FKA Rear Heater/Air Conditioning)



Fuse F112 (SMFA Seat Module, Driver With SMBF Seat Module, Passenger With FKA Rear Heater/Air Conditioning)

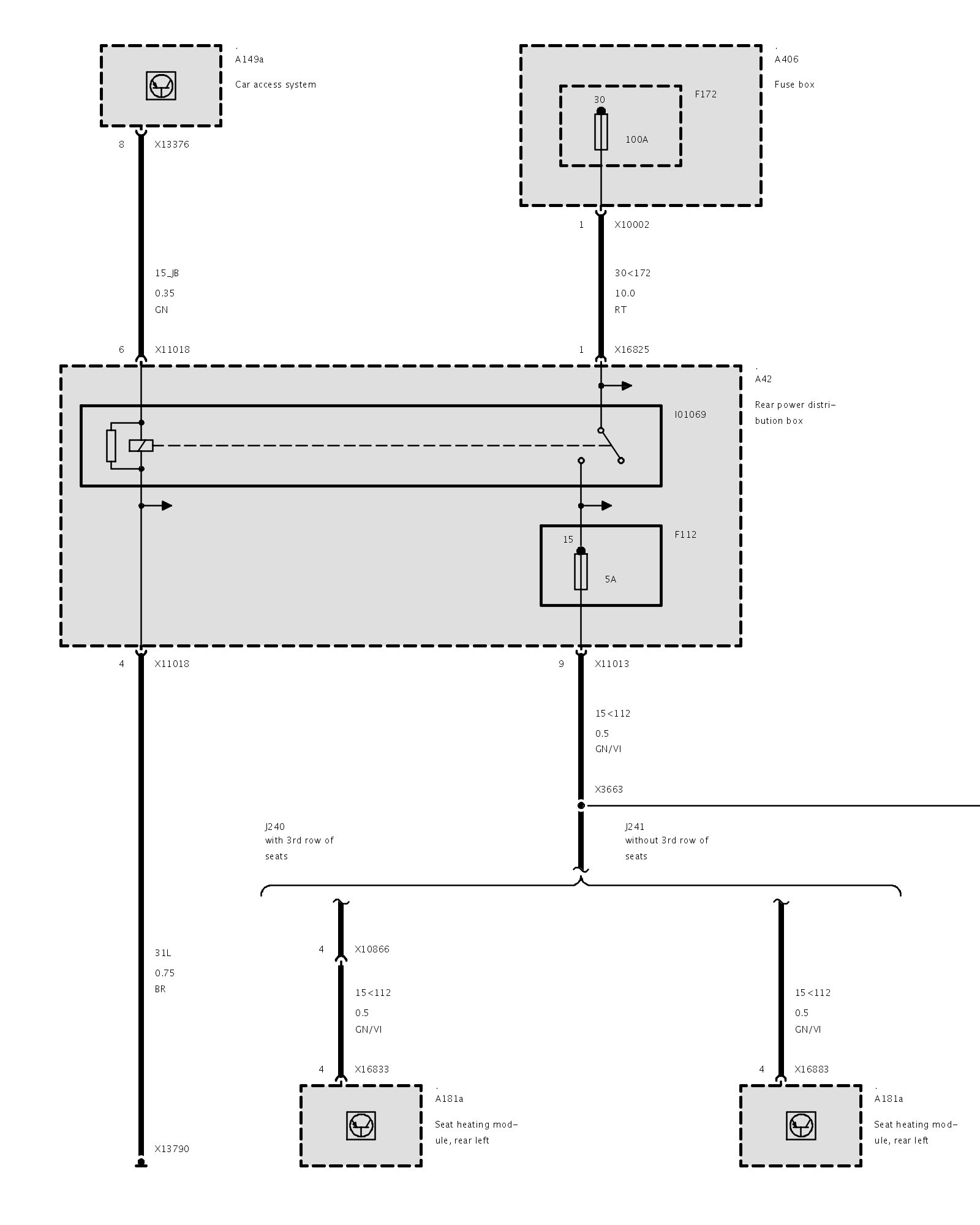

Part 1:




Part 2:




Part 3:
