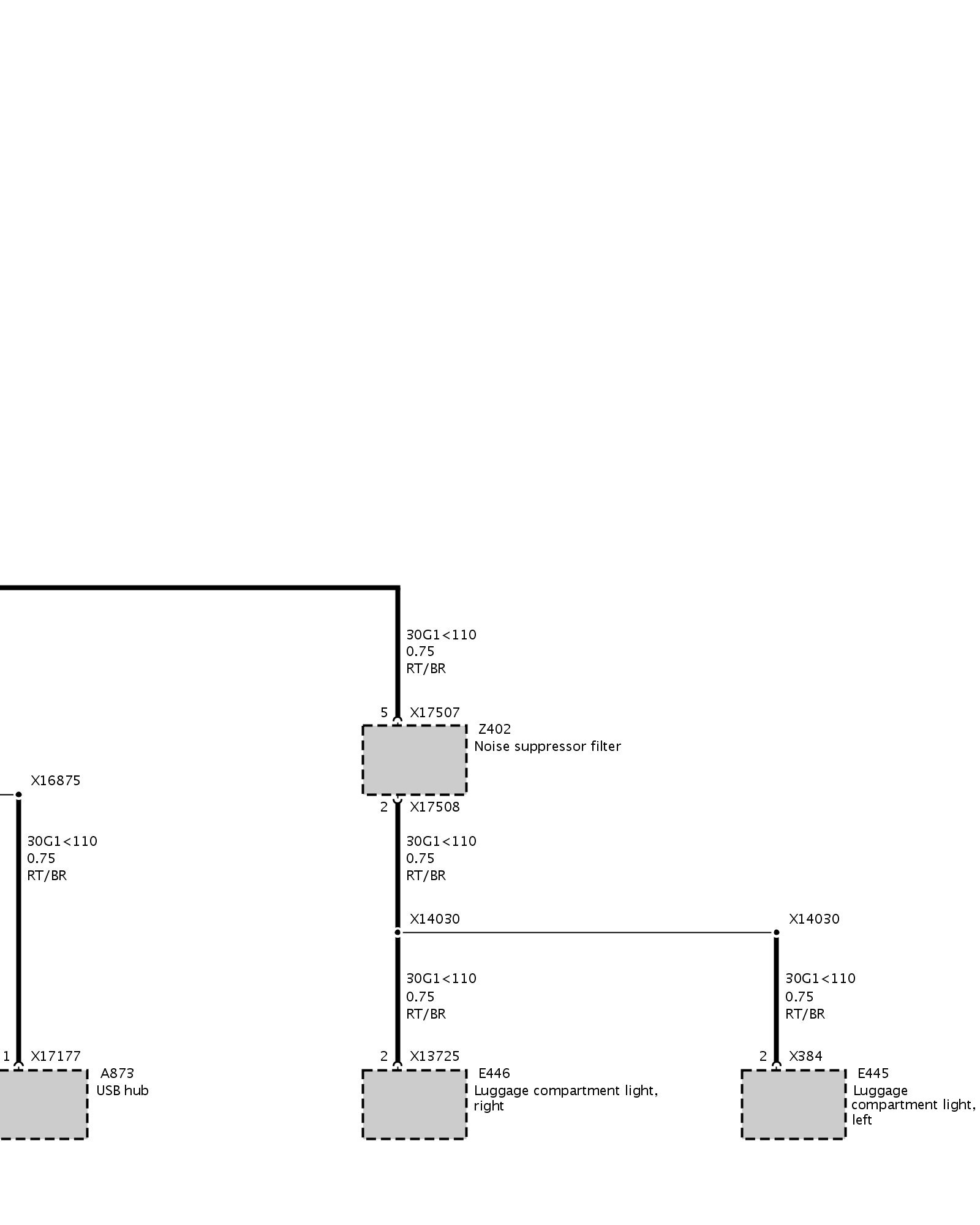

Fuse F110 (Up To 03/09 With ULF-SBX-H Interface Box High)
Fuse F110 (Up To 03/09 With ULF-SBX-H Interface Box High)
Fuse F110 (Up To 03/09 With ULF-SBX-H Interface Box High)
Part 1:
Part 2:
