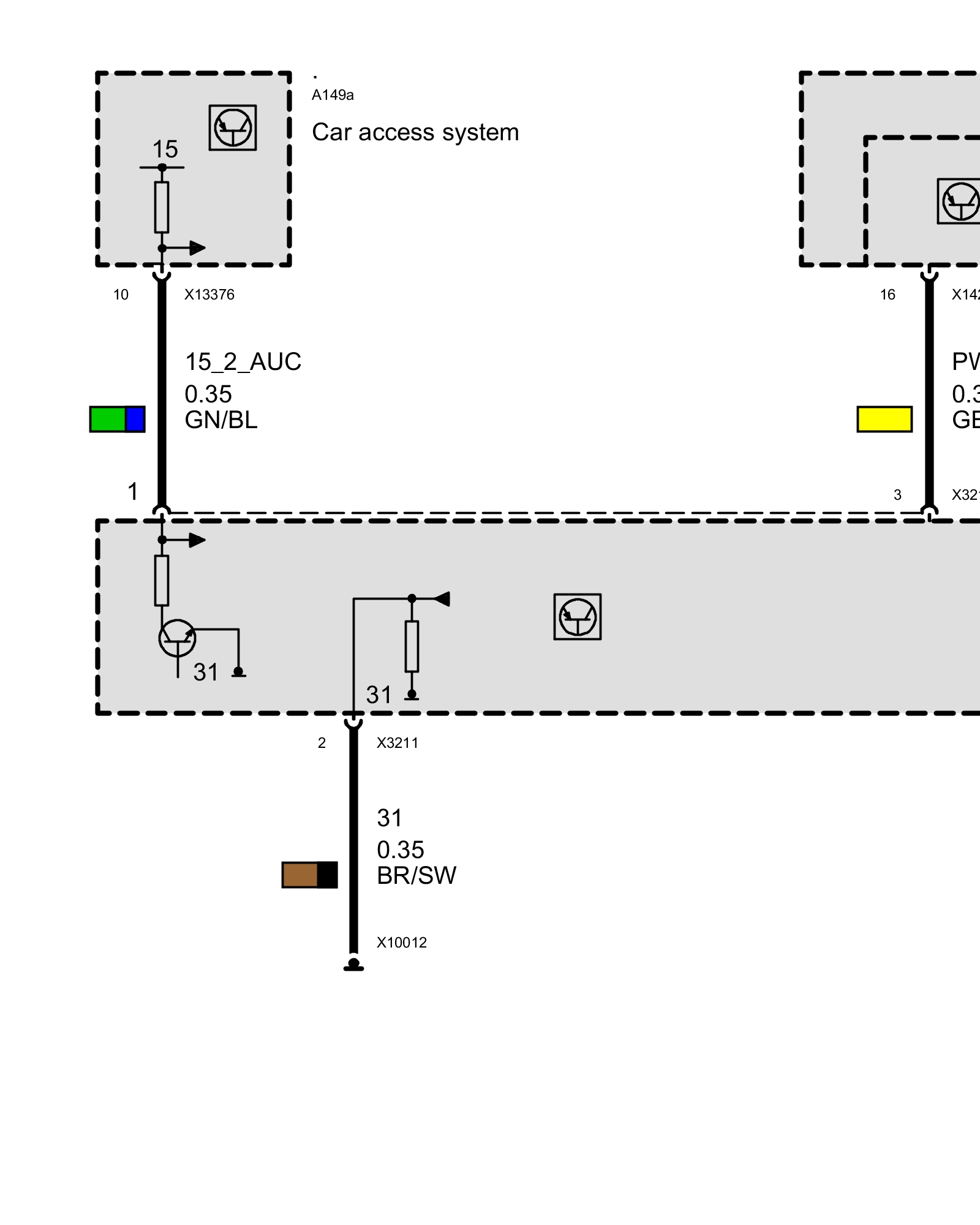

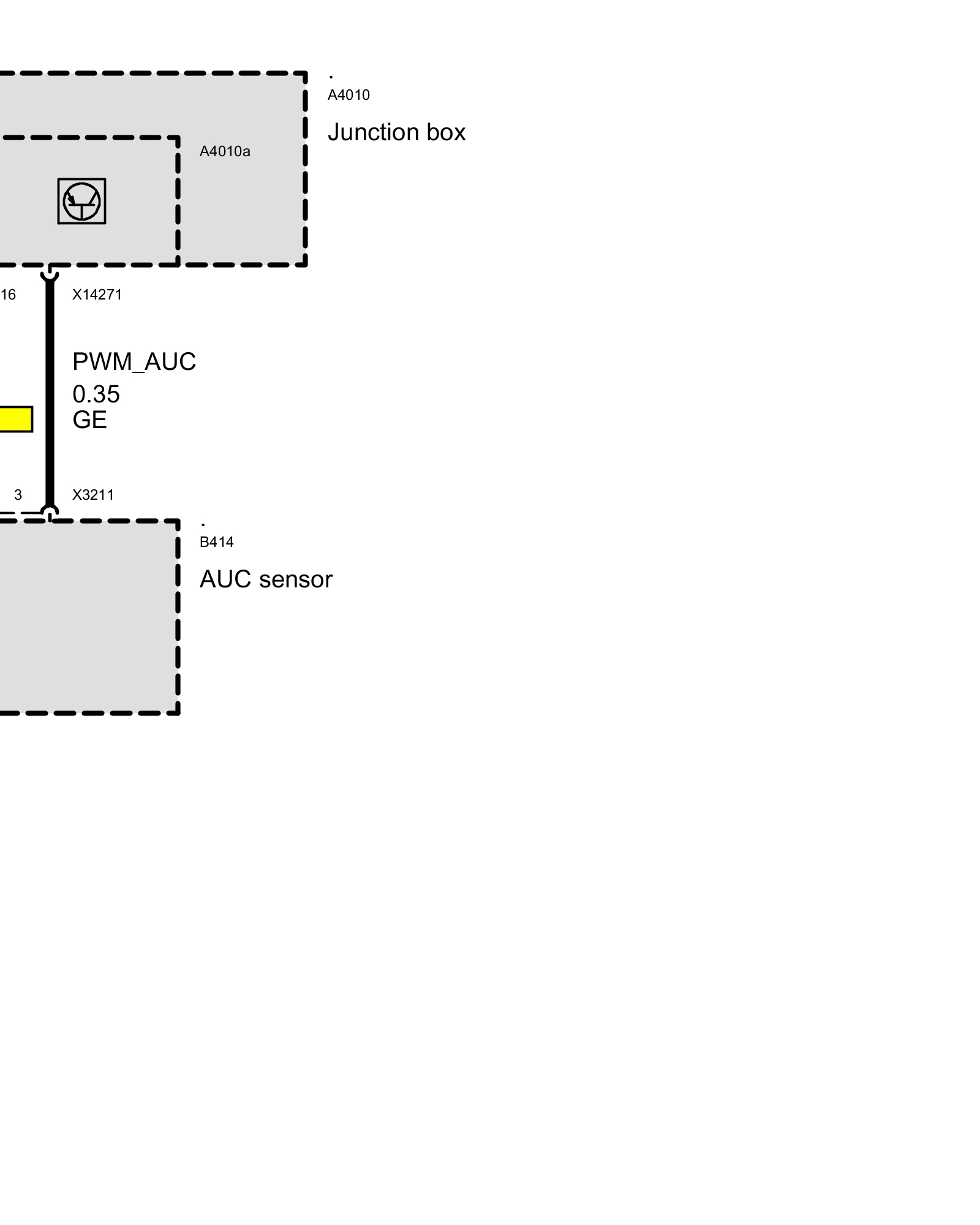

Automatic Recirculated Air Control (AUC)
Automatic Recirculated Air Control (AUC)
Automatic Recirculated Air Control (AUC)
