A207 Control Module, Rear Compartment Air Conditioning



A207 Control Module, Rear Compartment Air Conditioning

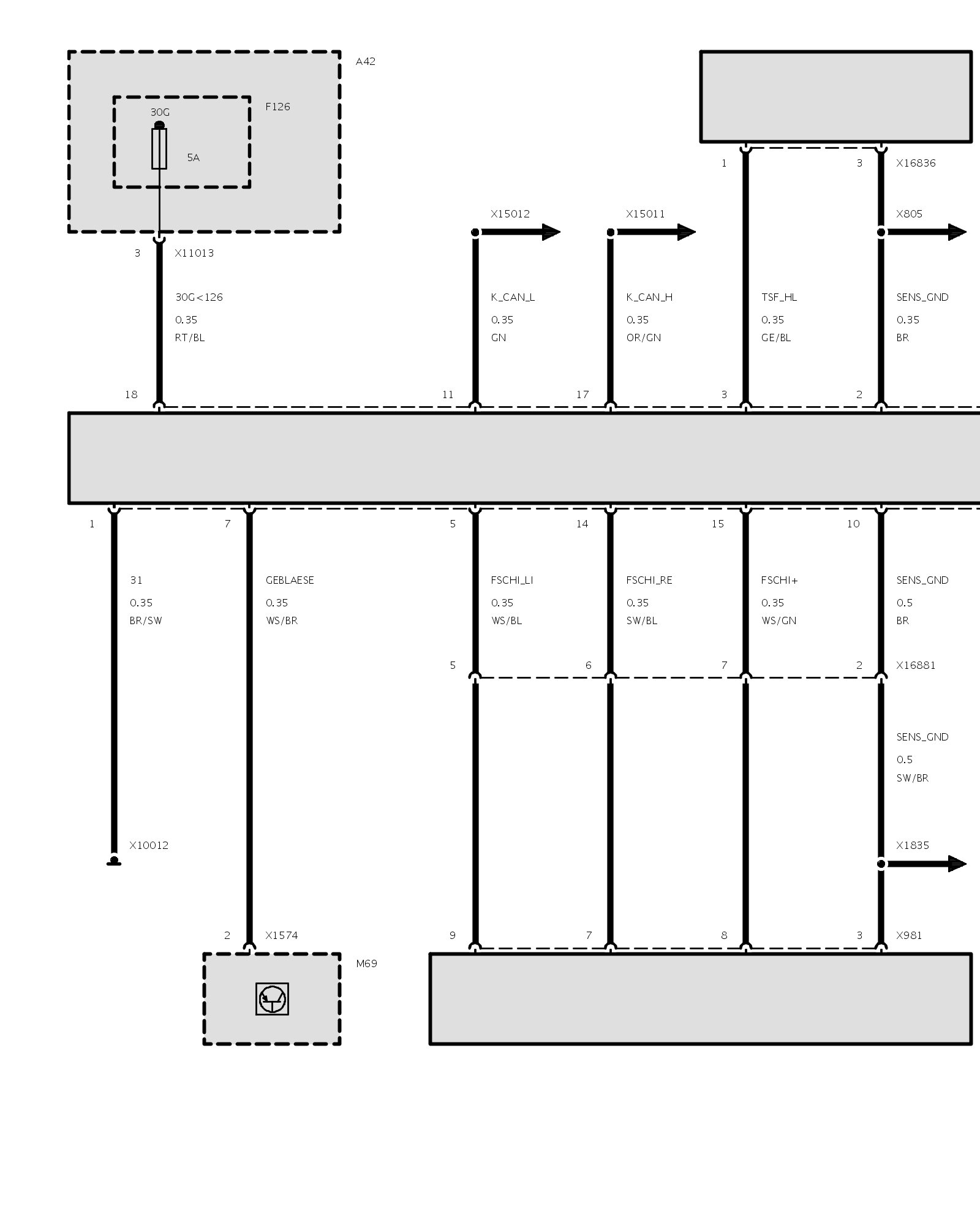

Part 1:

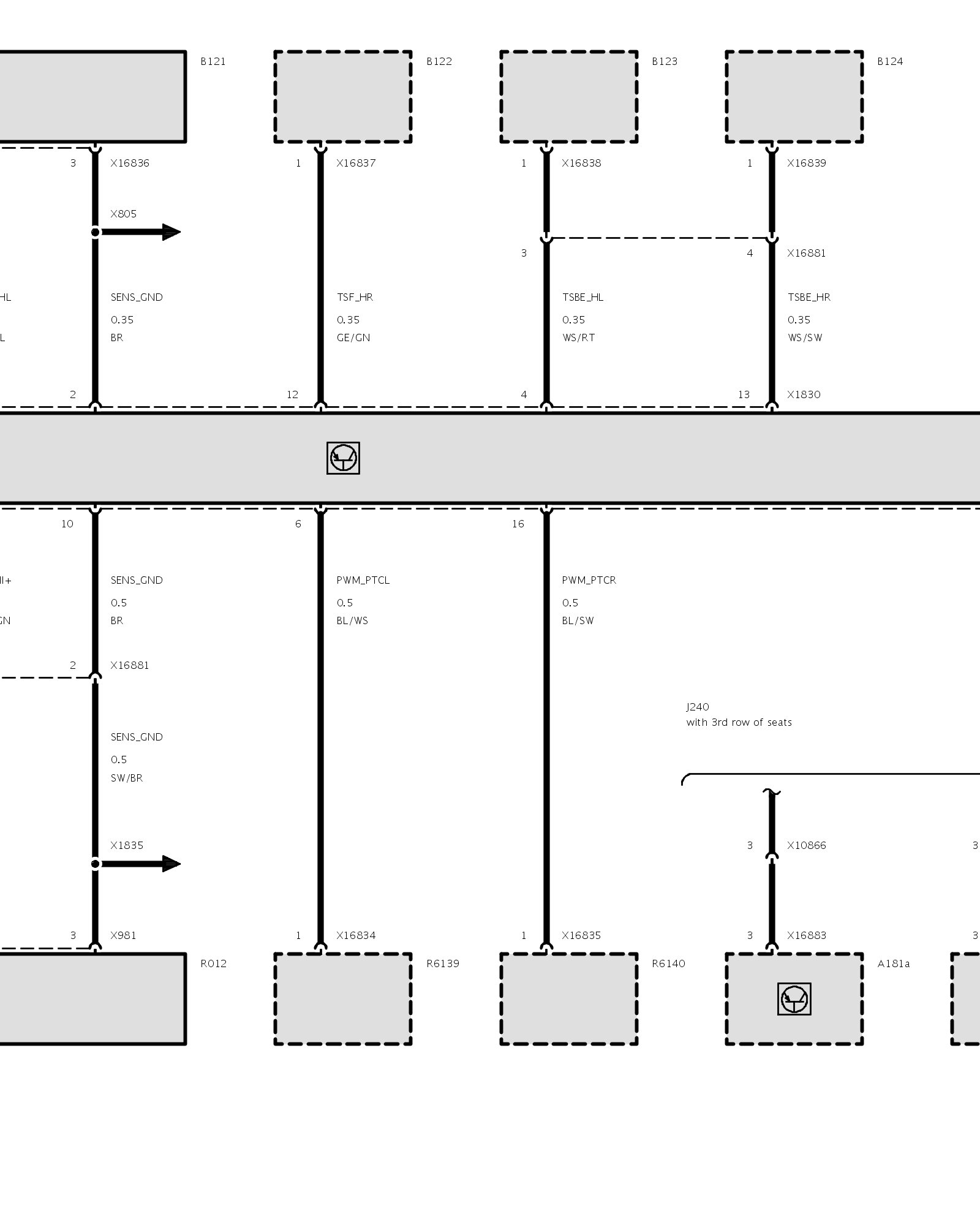

Part 2:




Part 3:
