A81a Park Distance Control (PDC)



A81a Park Distance Control (PDC)

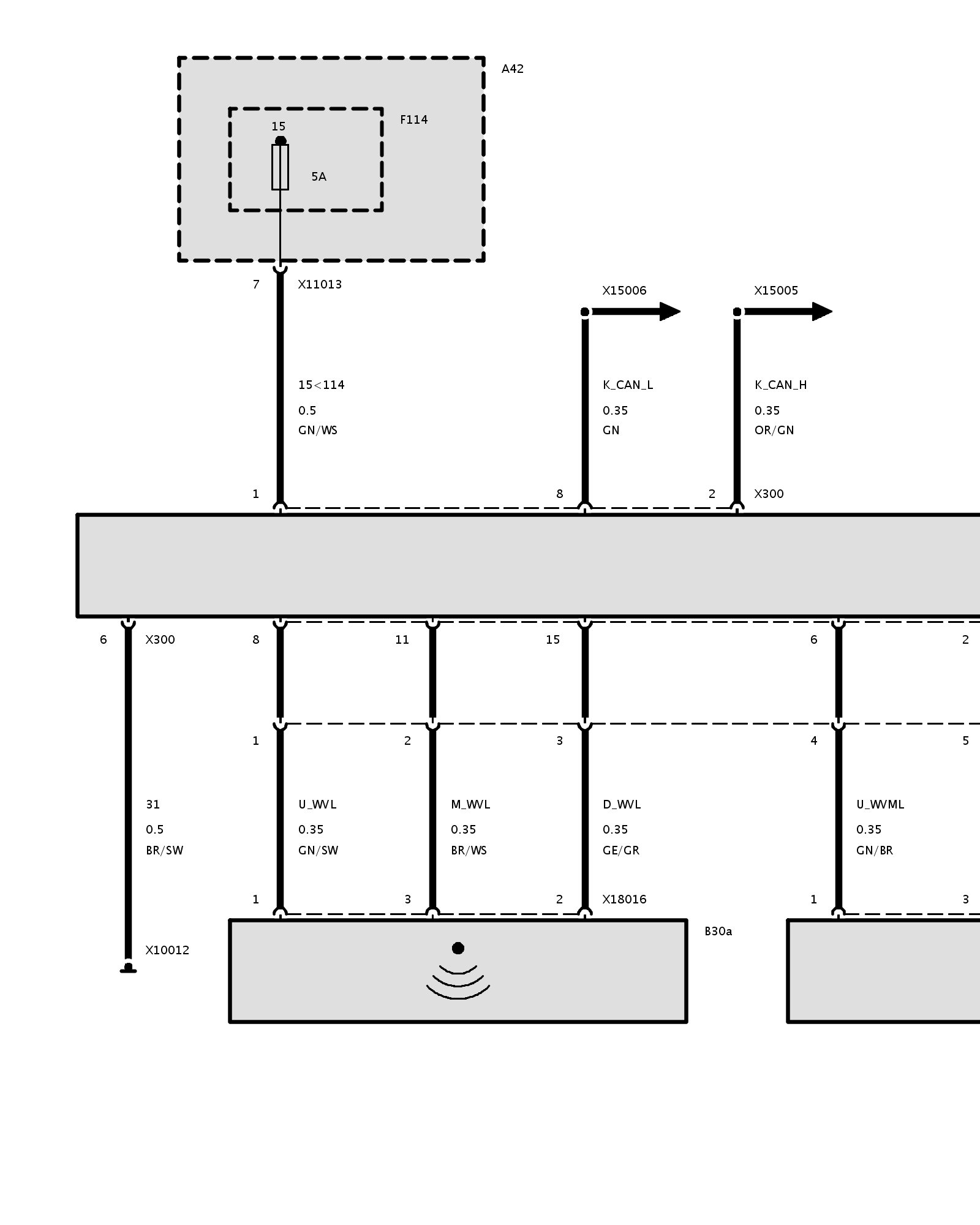

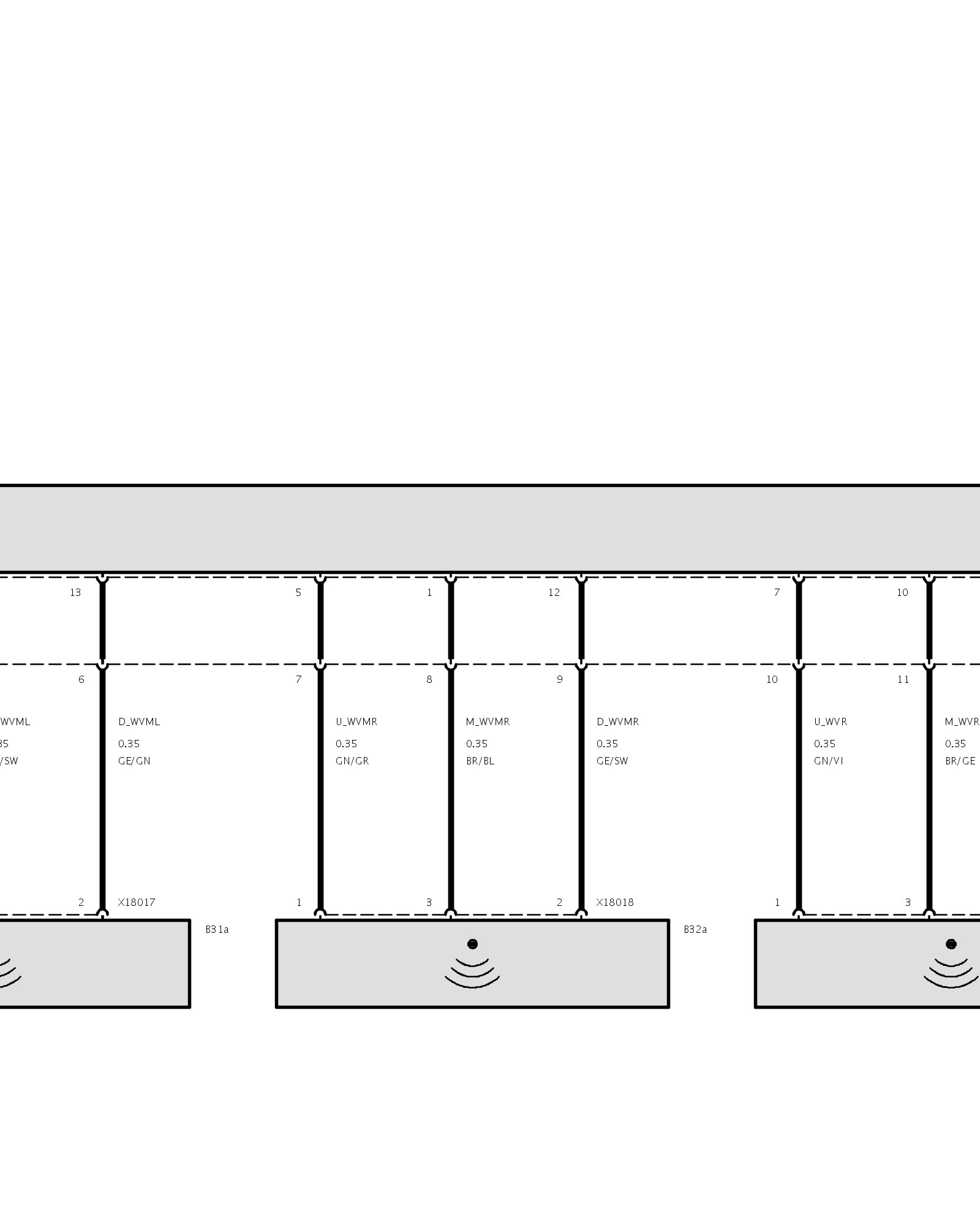

Part 1:

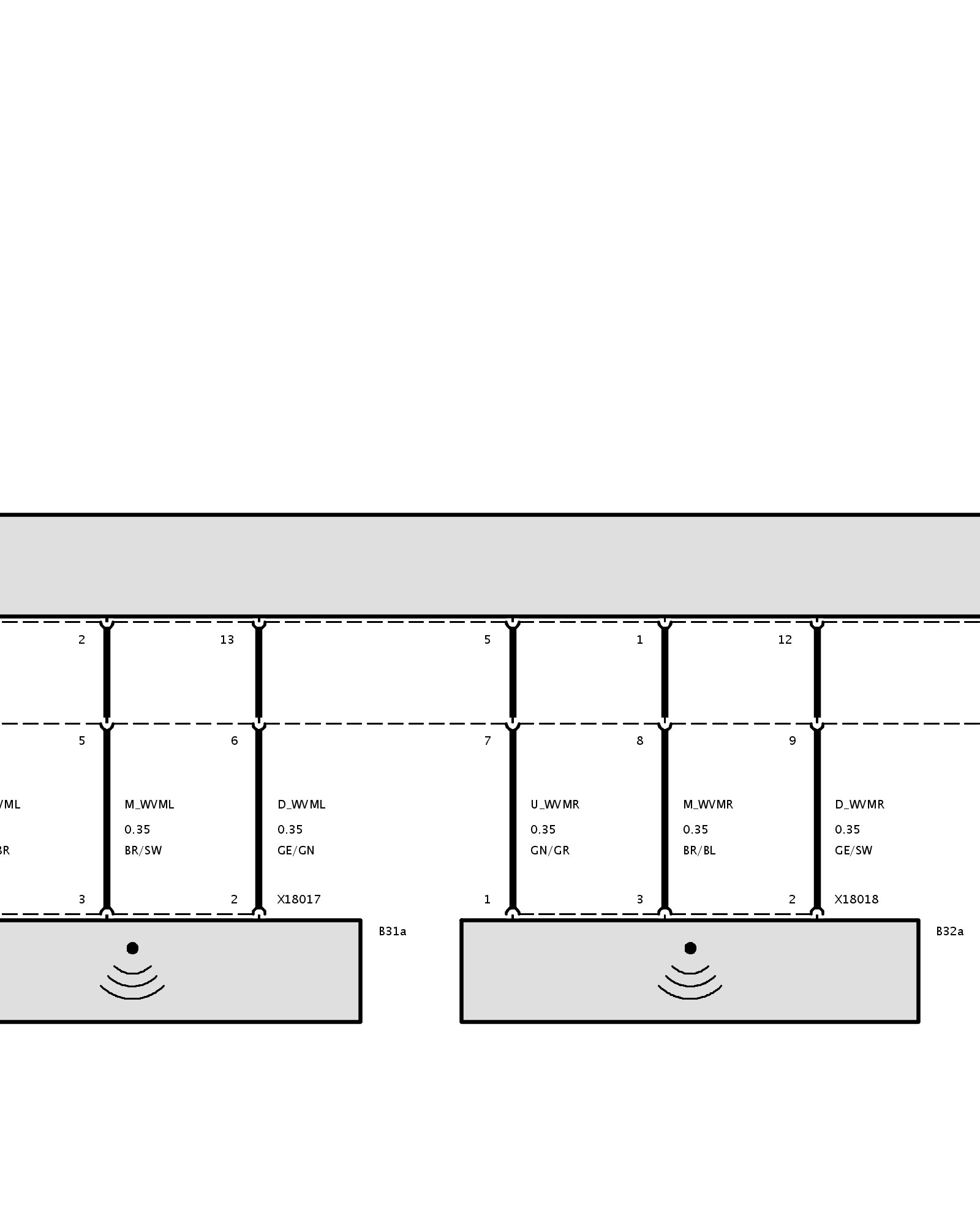

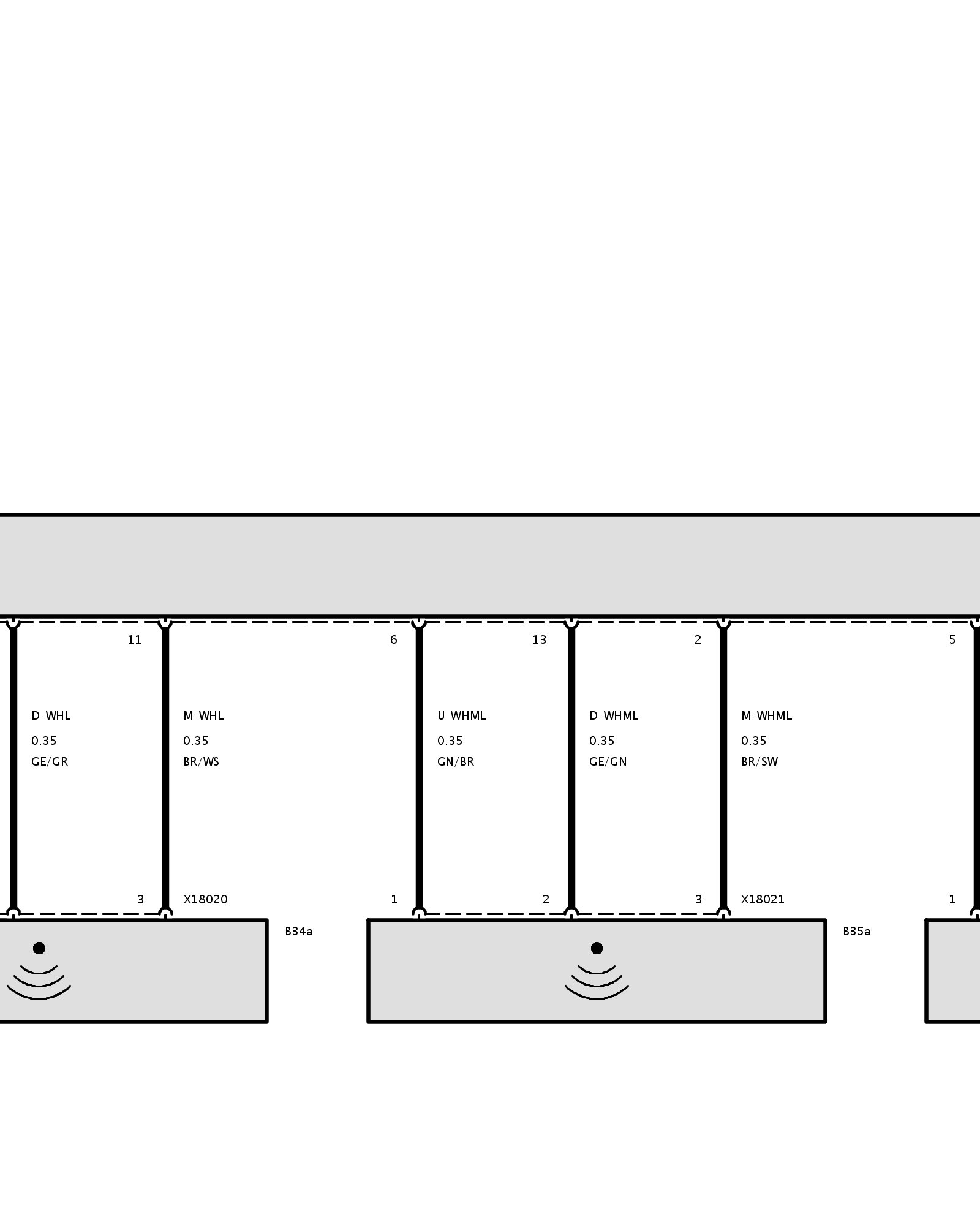

Part 2:

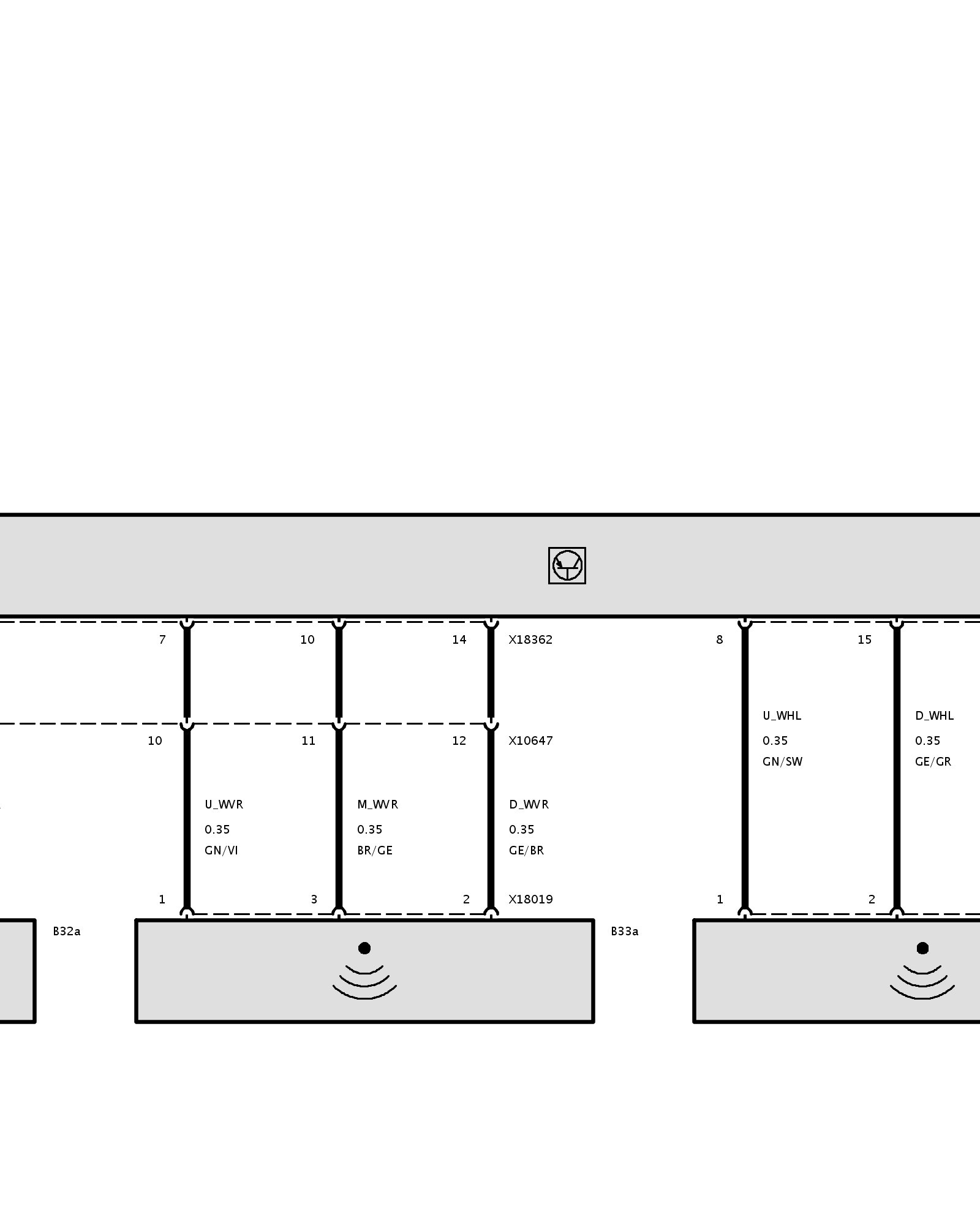

Part 3:




Part 4:

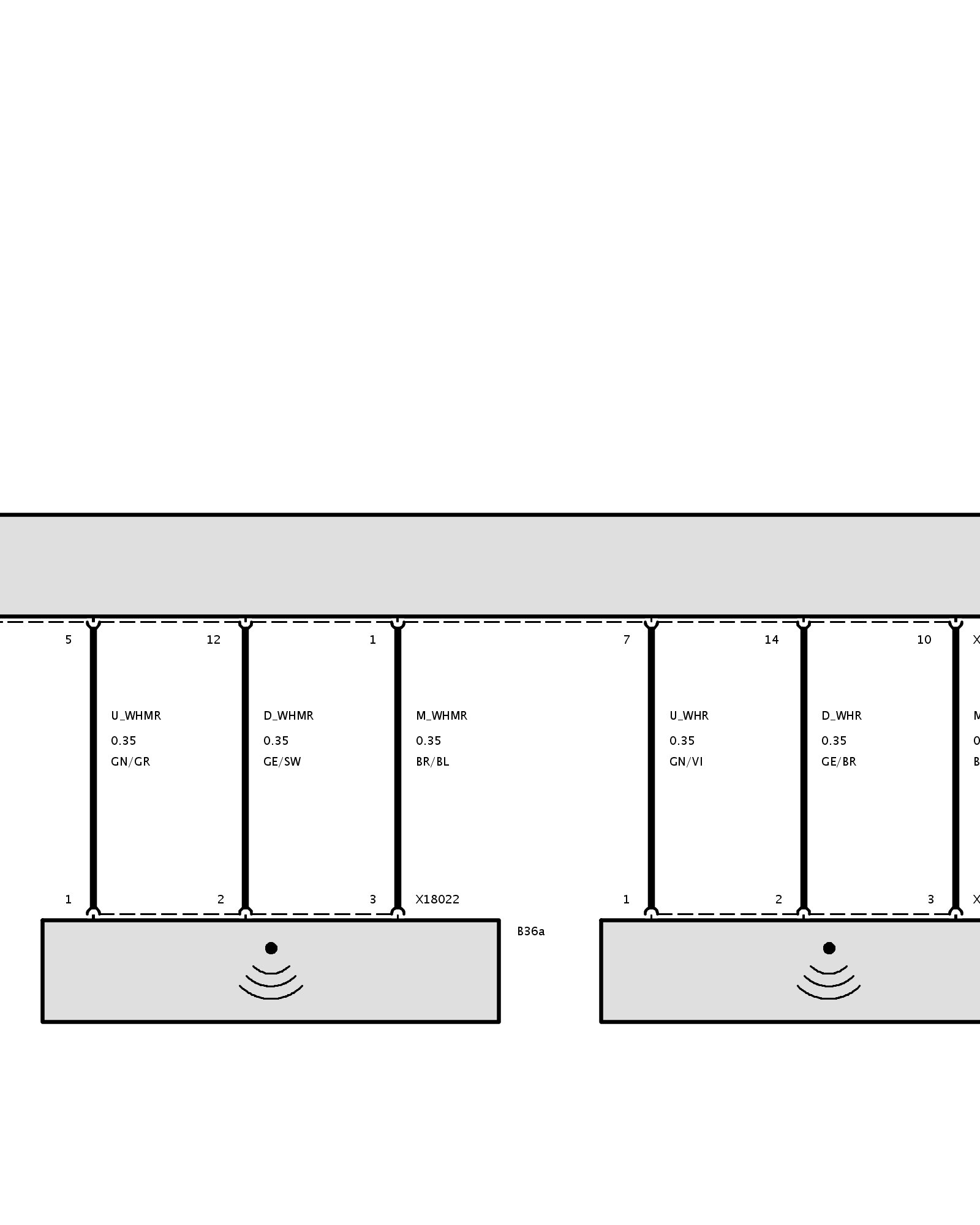

Part 5:

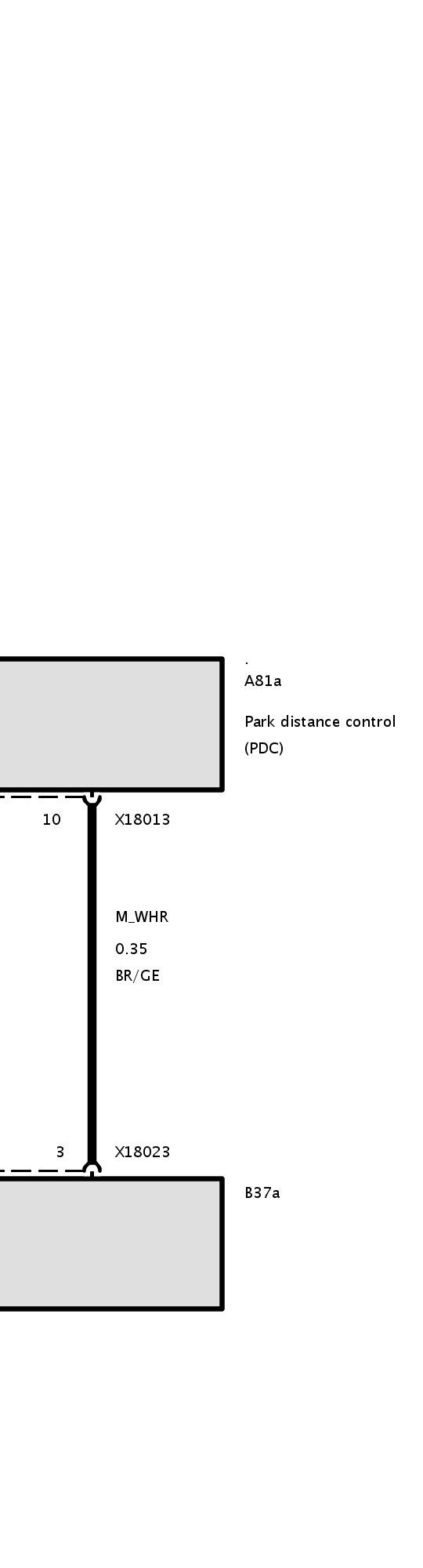

Part 6:

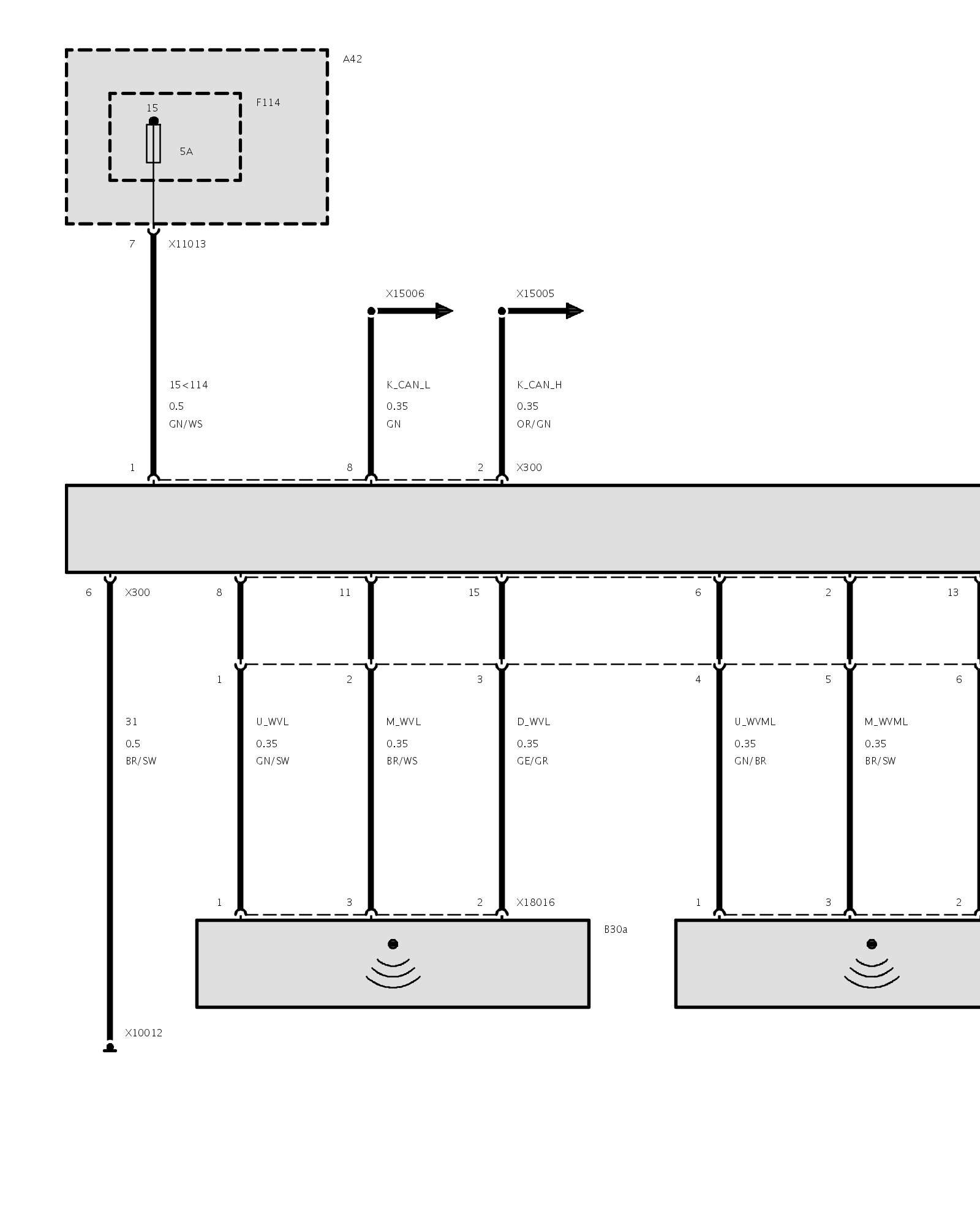

Part 1:




Part 2:

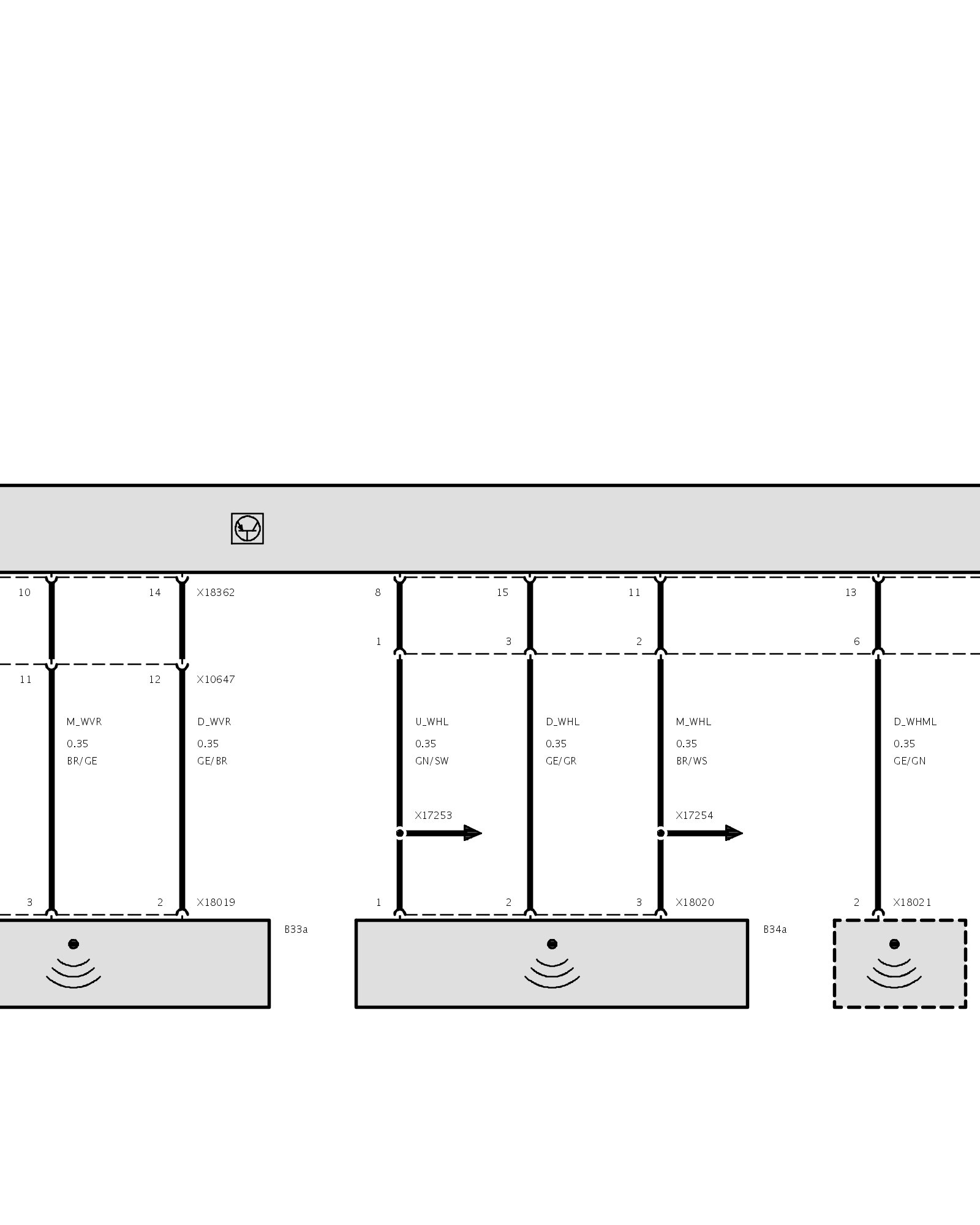

Part 3:

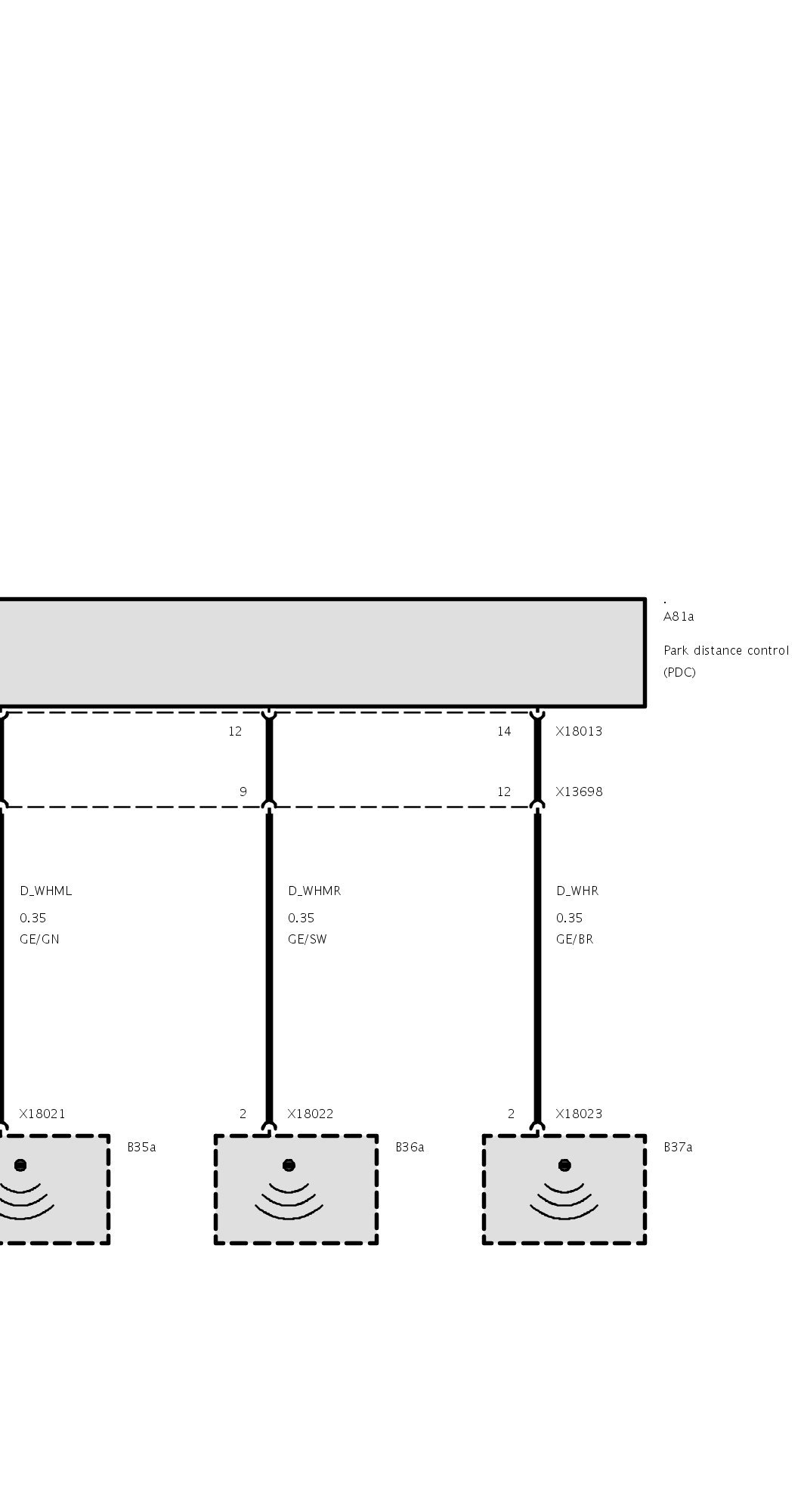

Part 4:
