Line, Engine Compartment

Engine Compartment Cable

Repair instruction for cables in the engine compartment

Causes
- Refrigerant lines are contacting each another or the cross-member in the engine compartment, see illustration
- Hydraulic lines are contacting one another or contacting the body behind the wheel arch trim, see illustration.

Repair instruction
Check the lines, adjust installation location if necessary.

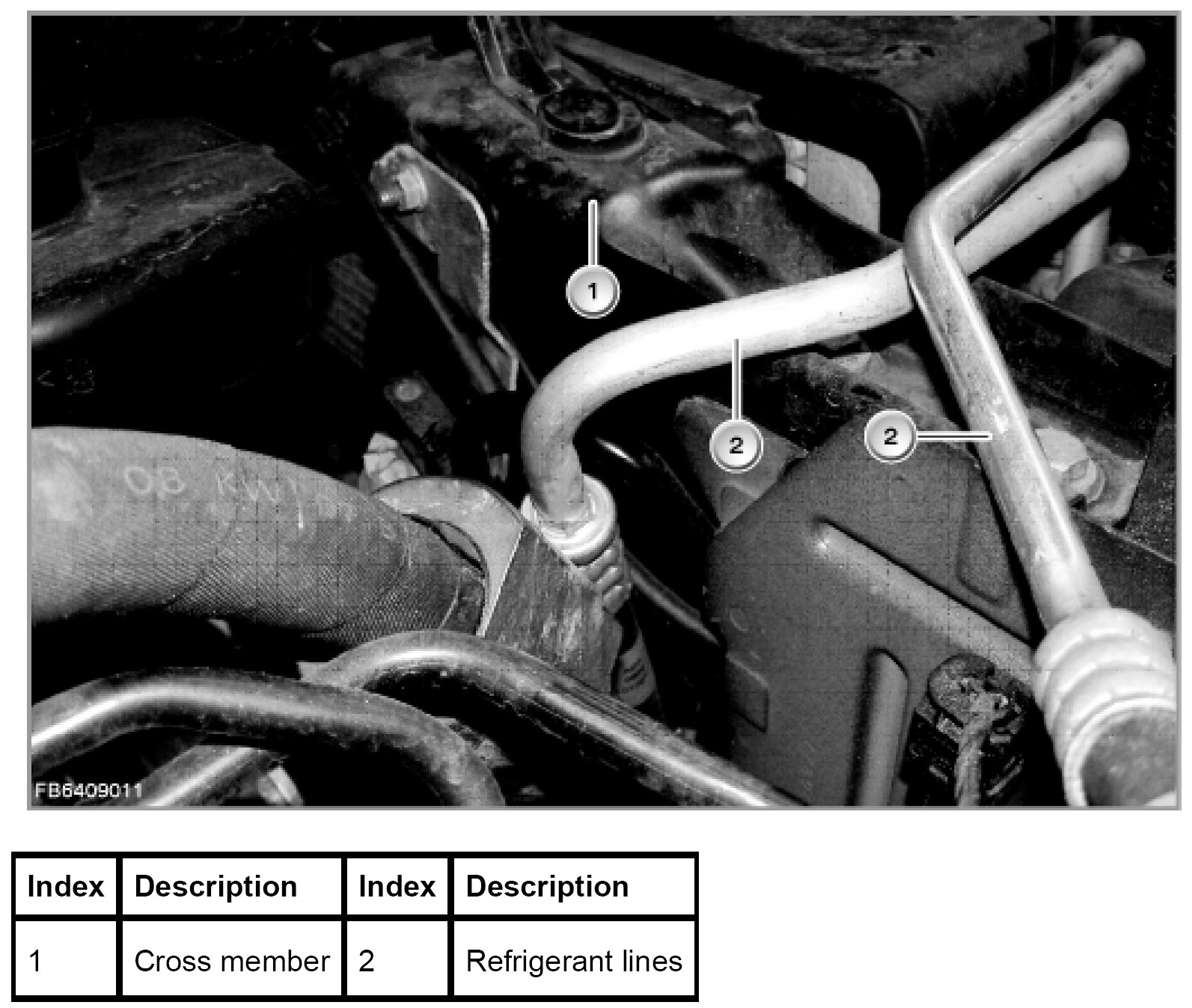

The illustration shows refrigerant lines on the E70

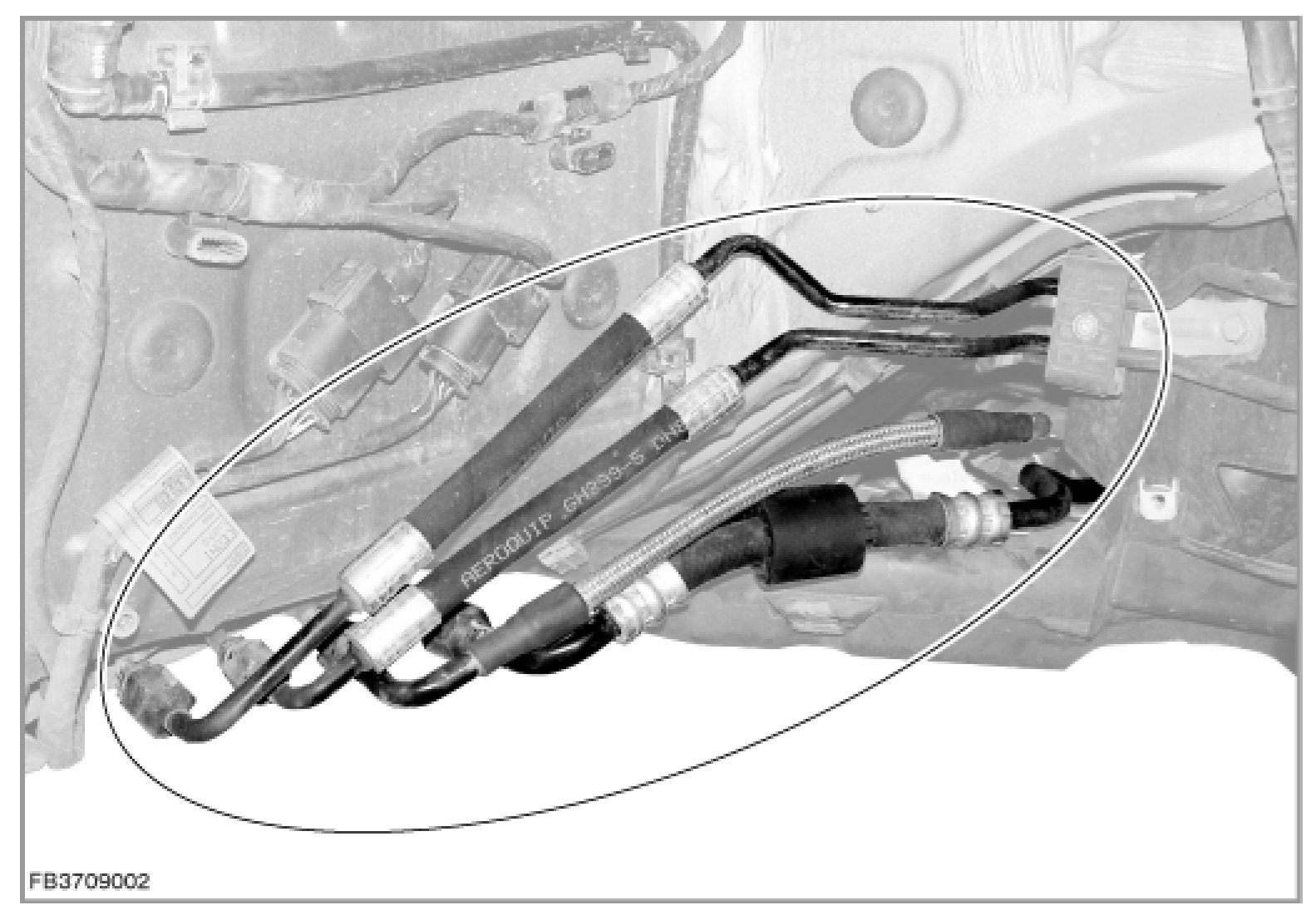

The illustration shows hydraulic lines behind the wheel arch trim
