51 47 490 Removing and Installing / Replacing Front Underbody Protection

51 47 490 Removing And Installing/Replacing Front Underbody Protection







NOTE: Pictures created using the X6 3.0i as an example. There may be differences in detail in the case of other models.

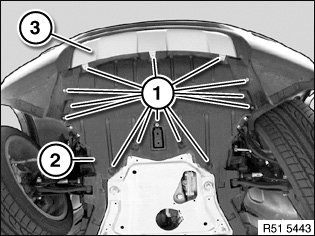

Release screws (1).
Pull forward assembly underside protection (2) under bumper trim (3) and remove.

Installation:
Centre underbody protection (2) and tighten down screws (1).
