52 14 020 Removing and Installing/Renewing Seat Frame on Left or Right Front Seat (Normal/Electric)

52 14 020 Removing And Installing/Renewing Seat Frame On Left Or Right Front Seat (Normal/Electric)







Necessary preliminary tasks:
- Remove front seat
- Remove backrest frame
- Remove both seat rails on front seat
- Remove seat cover for front seat

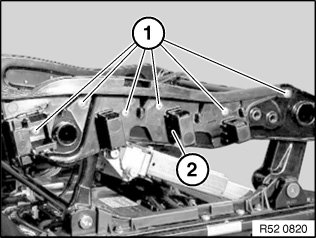

Release fastening elements (1) on left and right.
Remove component (2) on left and right.
Remove complete seat wiring harness.







NOTE: The new seat frame part contains all the drives.
