54 12 497 Removing and Installing/Replacing Wind Deflector for Glass Slide/Tilt Sunroof

54 12 497 Removing And Installing/Replacing Wind Deflector For Glass Slide/tilt Sunroof







Open the glass slide/tilt sunroof cover.

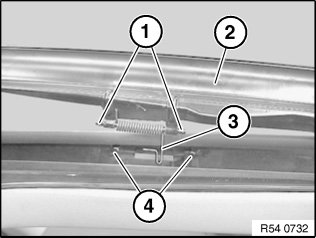

Lever out spring.(1) on left and right.
Pull the wind deflector (2) towards the rear and out of its support (3).

Installation:
Perform function check.







Installation:
Insert the retaining pins (1) for the wind deflector (2) into the holders (4).
The pins (3) must snap in correctly.

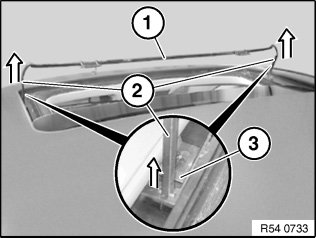

Place the wind deflector (1) in a vertical position and pull it upwards out of the supports (3) together with the levers (2) on the left and right.







Installation:
Turn the lever (1) until the retainer (3) is in line with the opening (2) and remove the lever (1) from the wind deflector (4).
