51 16 ... Removing and Installing/Replacing Decorative Trim on Rear Console on Left/Right

51 16 ... Removing And Installing/replacing Decorative Trim On Rear Console On Left/Right







Necessary preliminary tasks:
- Remove cup holder in rear console

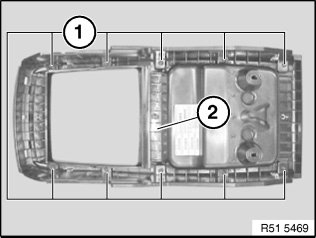

Release screws (1).
Feed out trim (2).







Installation:

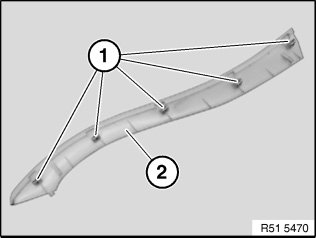

Retainers (1) on decorative trim (2) must not be damaged.
