67 33 510 Removing and Installing/Replacing Servolock Drive

67 33 510 Removing And Installing/Replacing Servolock Drive







Necessary preliminary tasks:
- Remove trim for tail panel at top

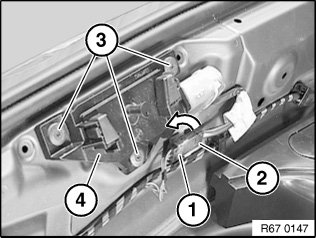

Unfasten plug connection (1) and disconnect.
Turn plug housing (2) approx. 45° in direction of arrow and unclip.
Release screws (3) and remove servolock drive (4).

Installation:
- Adjust rear lid lock
