Front Door Limiter: Service and Repair

51 21 280 Removing And Installing/Replacing Door Stop On Left Or Right Front Door







Necessary preliminary tasks:
- Close door windows
- Remove sound insulation in front area only







NOTE: Secure front door against falling closed.

Lever out seal (1).
Unfasten screws (2 and 3).

Installation:

E60/E61 tightening torque:
(2) 51 21 9AZ
(3) 51 21 10AZ

E70/E71/E72 Tightening torque:
(2) 51 21 3AZ
(3) 51 21 4AZ

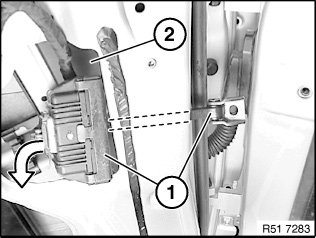

Remove door brake (1) via cutout (2).







Installation:

Following parts of door retainer (3) must not be damaged:
1. Hinge
2. Thread







Installation:
Seal (1) must not be damaged.
