Guide, Pull Cable

Drive Cable For Panorama Sunroof Rattles

Repair instruction for drive cable on the panorama sunroof rattles
Check whether the cable crossover to guide the drawing cable is fitted.
1. Remove the panorama sunroof.
2. Remove the drive motor and cover.
3. Clean the cable channel.
4. Fit the missing cable crossover from the service package. See Fig. 1.
5. Set the cable with oil.
6. Refit the drive motor and cover.
7. Fir the panorama sunroof and run a function test.

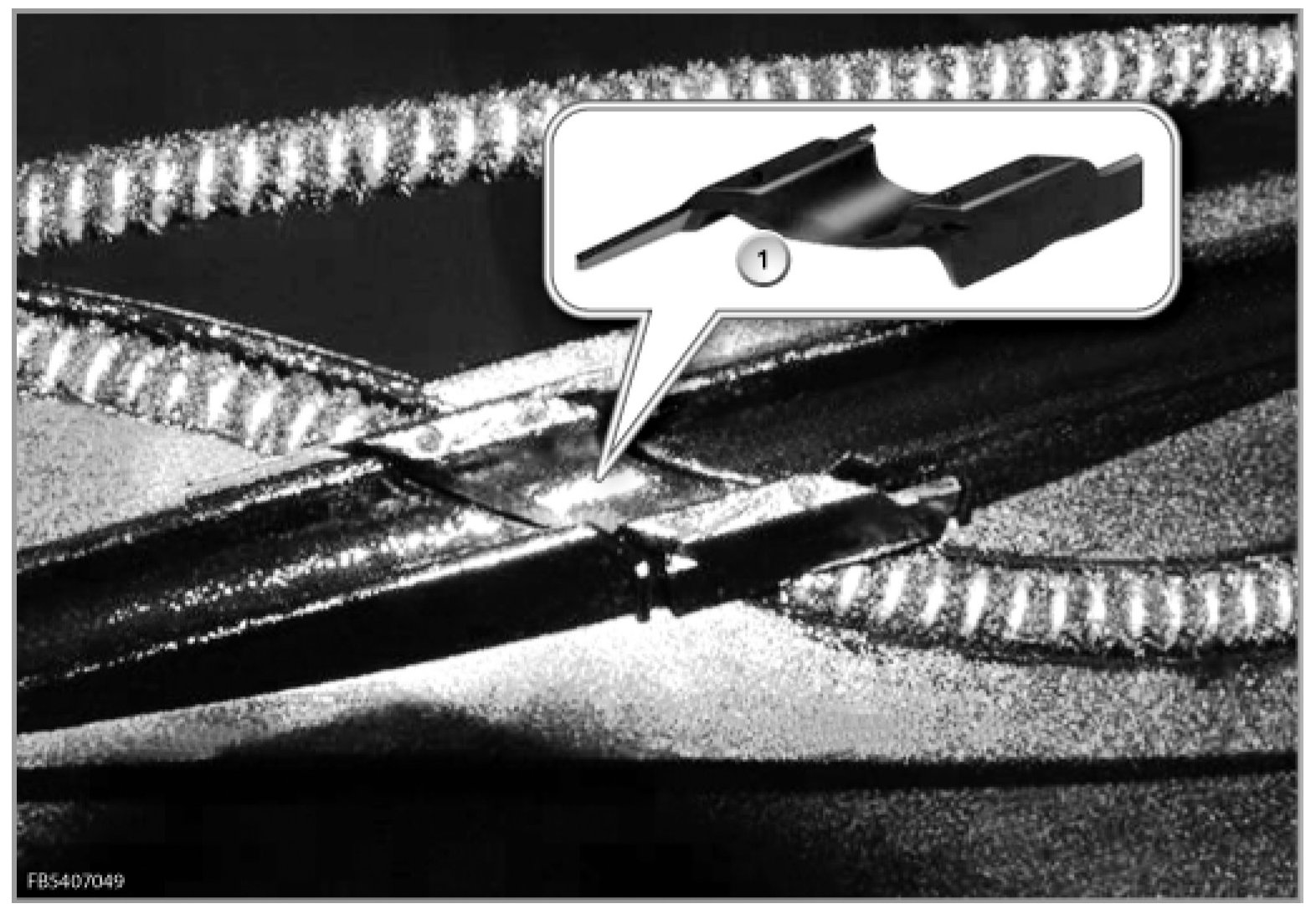

Image 1







Fit the cable crossover (1) from the service package.
