Plug, Soft Close Automatic

Soft Close Automatic Connector

Repair instructions for the Soft Close Automatic connector

Cause
The Soft Close Automatic connector is loose.

Repair instruction
Secure the Soft Close Automatic connector with adhesive tape to the door wiring harness.

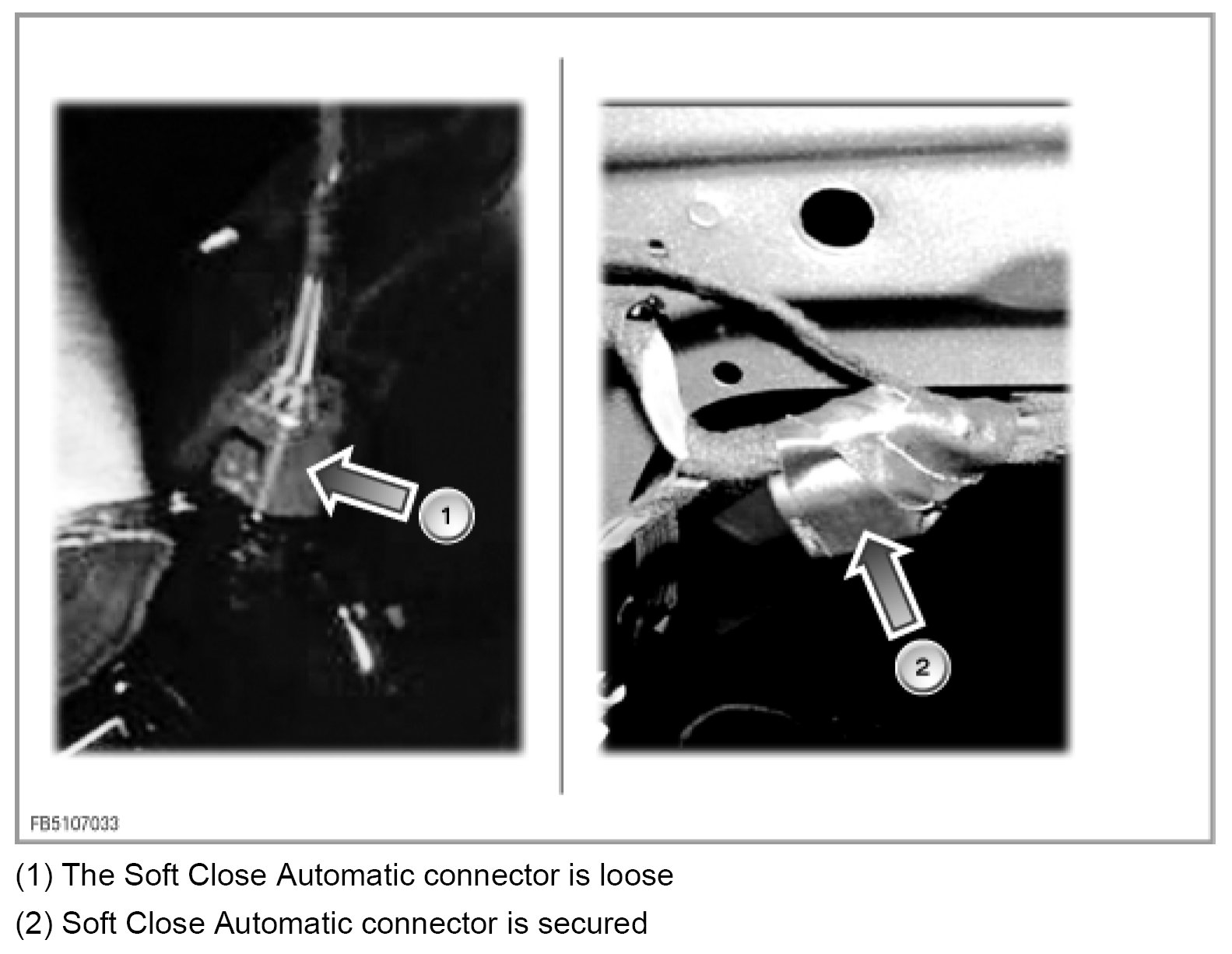

Connector for Soft Close Automatic







NOTE: The blue clips of the door trim panel must always be replaced.
