Expanding Foam

Foam Sealant

Repair instruction for foam sealant

Cause
Missing foam sealant on the Bowden cable of inner door handle to rotary catch lock.

Repair instruction

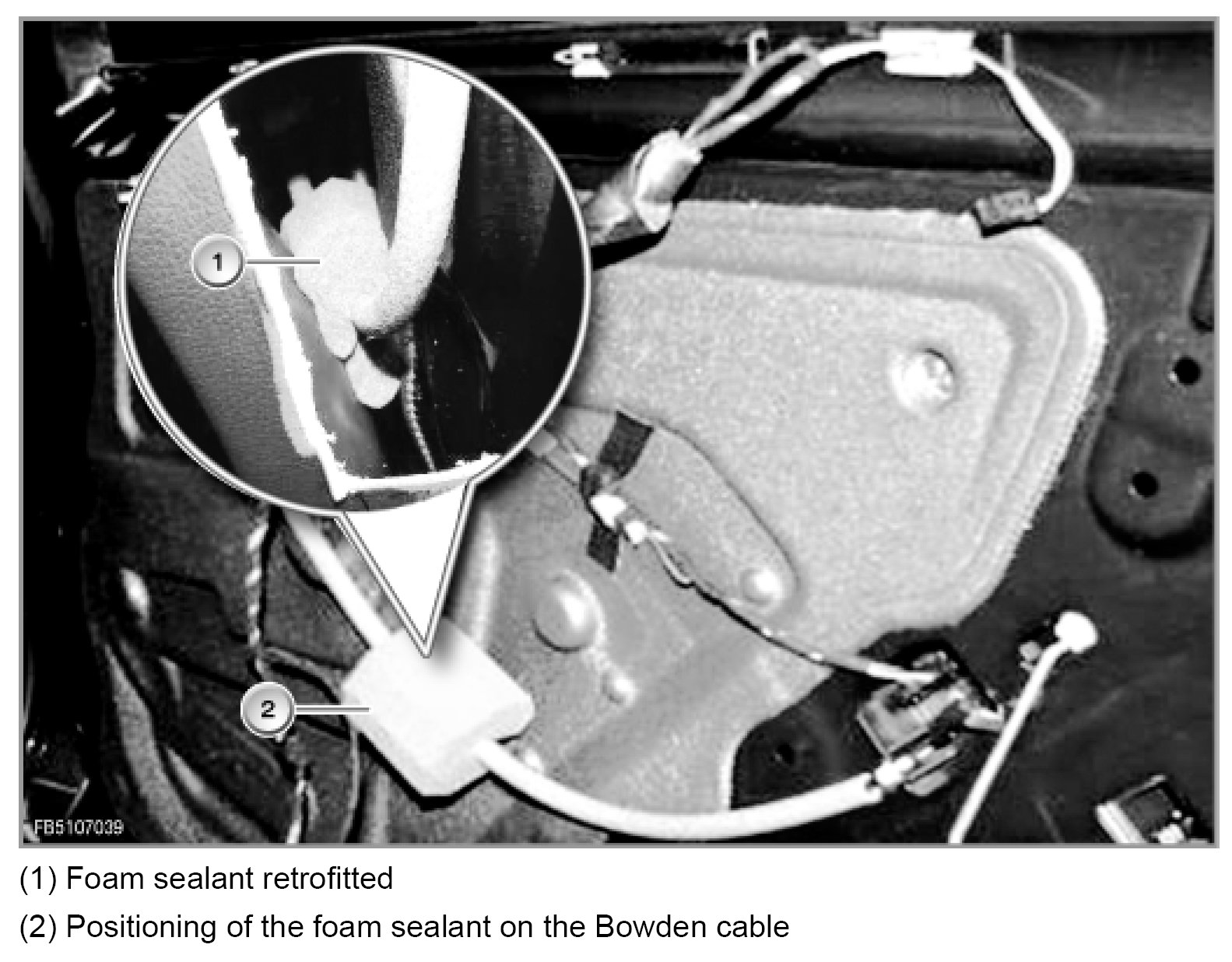

Retrofit foam sealant at the Bowden cable, then jam between door trim panel and sound insulation.

Series solution
Since date of manufacture 03.2007, new sound insulation has been fitted. Retrofitting of the foam sealant is no longer required.

Sound insulation







NOTE: The blue clips of the door trim panel must always be replaced.
