Edge, Door Trim Panel

Edge Wrapping, Door Trim Panel

Repair instruction for edge wrapping in door trim panel

Cause
The edge wrapping of the door trim panel makes contact with the inner door panel in the area of the A-pillar.

Repair instruction

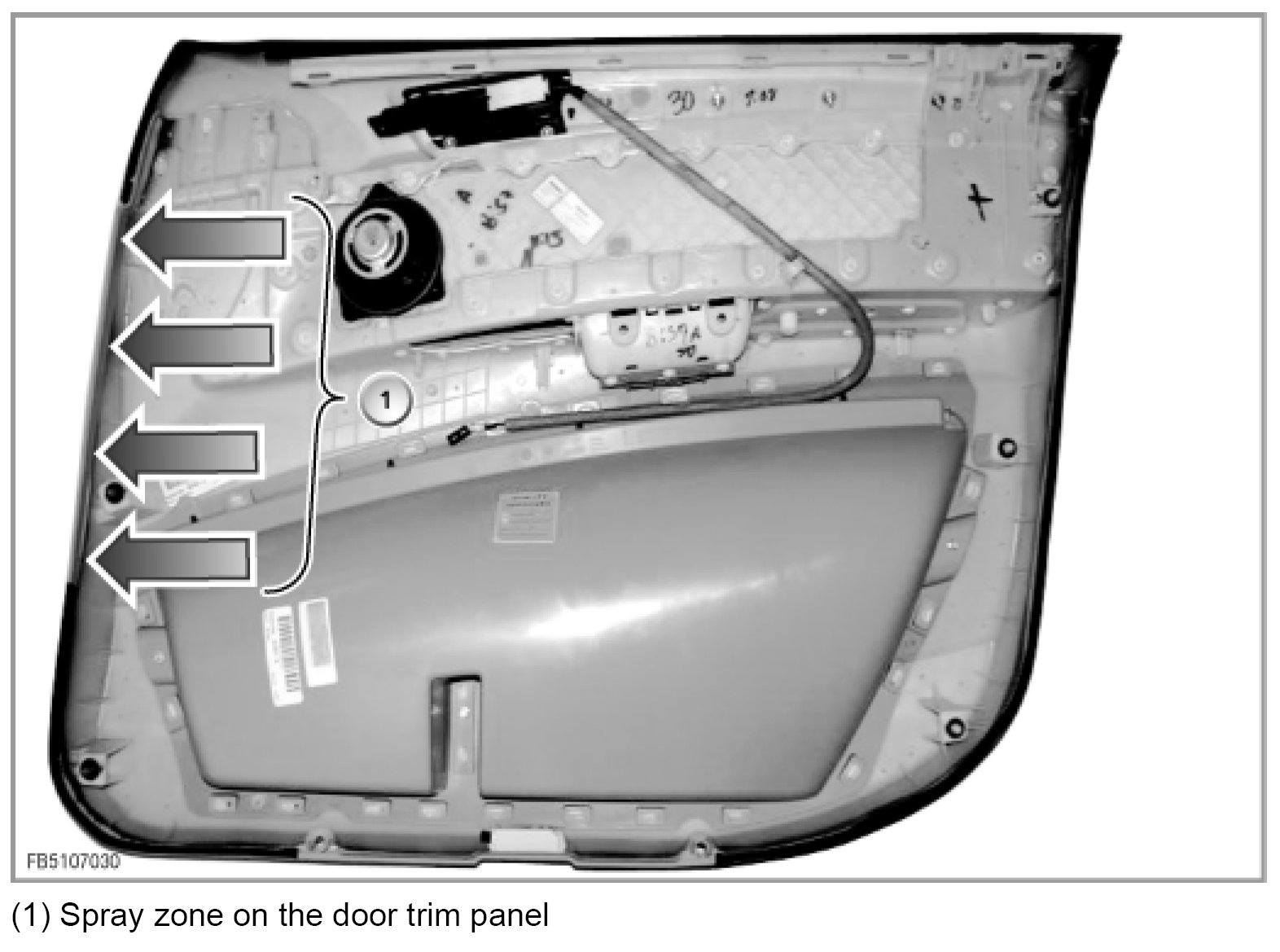

Apply BMW protecting spray between the edge wrapping and inner door panel in the area of the edge wrapping. The door trim panel does not have to be removed.

Door panel







NOTE: Cover the area around the spray zone. After spraying, use a suitable cleaning agent to clean the spray zone.
