Cable, Door-Opener Lighting

Cable For Inside Door Handle Light

Repair instruction for cable inside door handle light

Cause
Missing mount of the cable for the inside door handle light.

Repair instruction

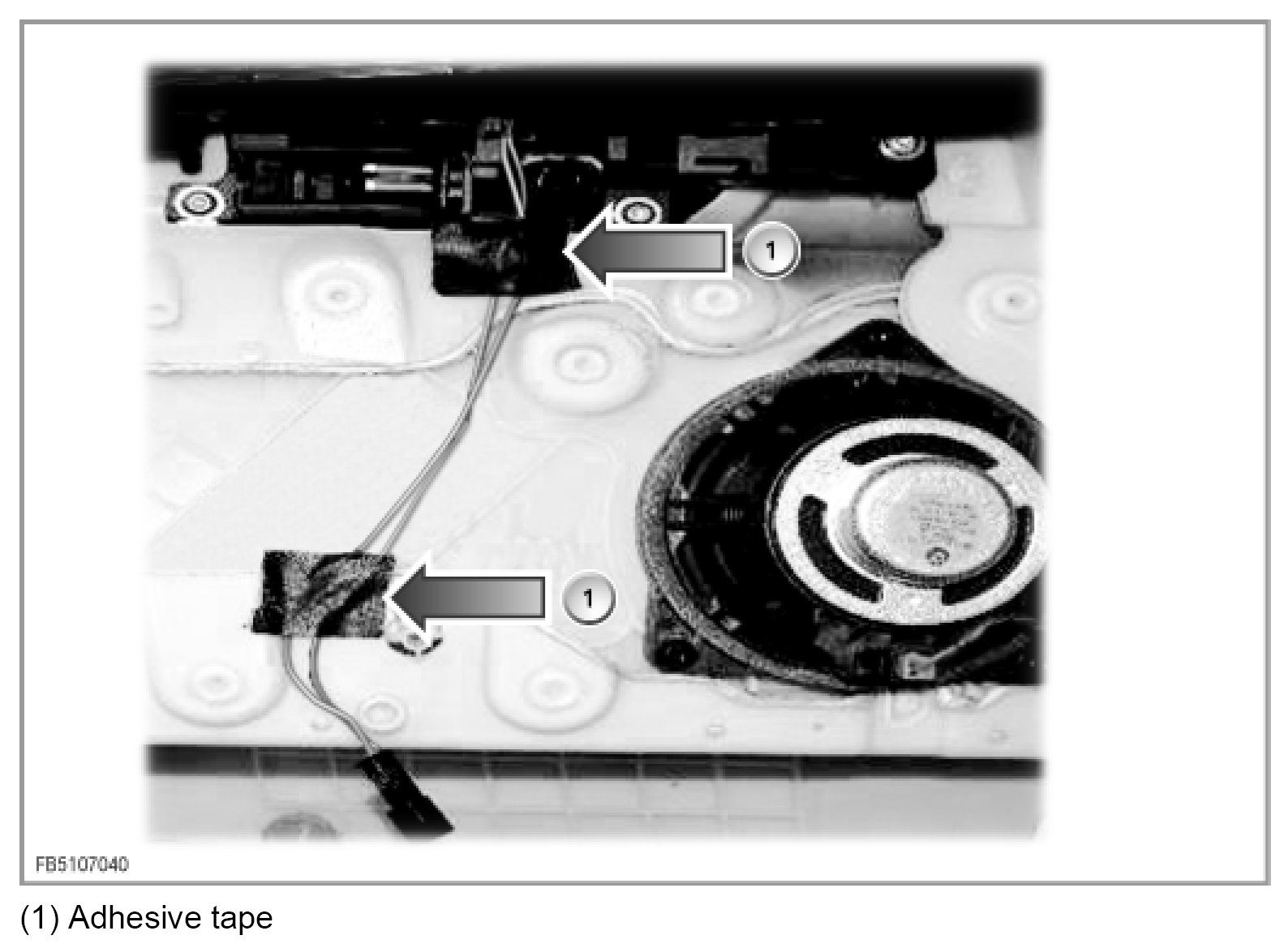

Attach the cable to the door trim panel with adhesive tape.

Door panel







NOTE: The blue clips of the door trim panel must always be replaced.
