Cable, Door Trim Panel

Door Trim Panel Cable

Repair instruction for door trim panel cable

Cause
Cable routing not secured to door trim panel.

Repair instruction

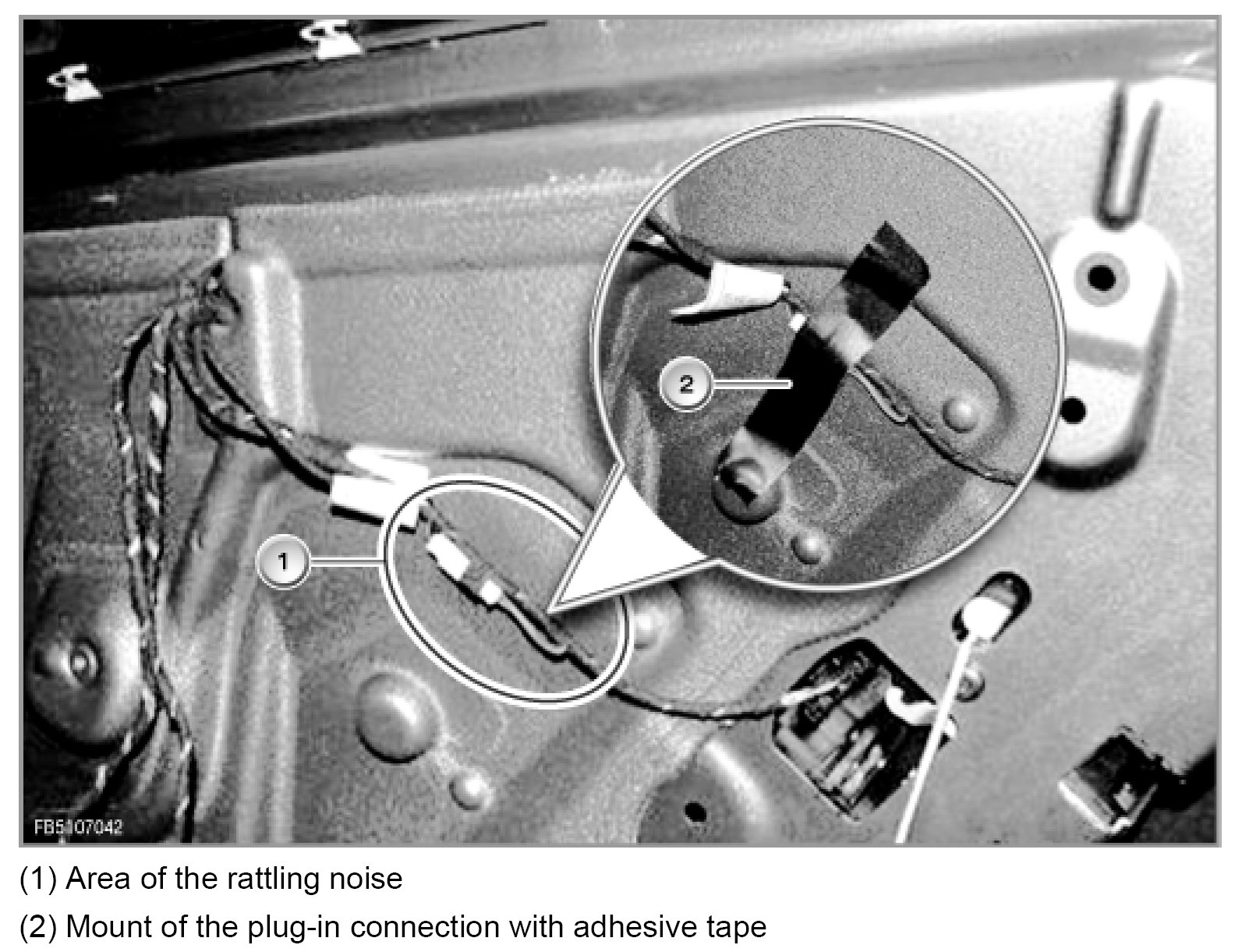

Attach the loose cables or plug-in connection to the door trim panel with adhesive tape.

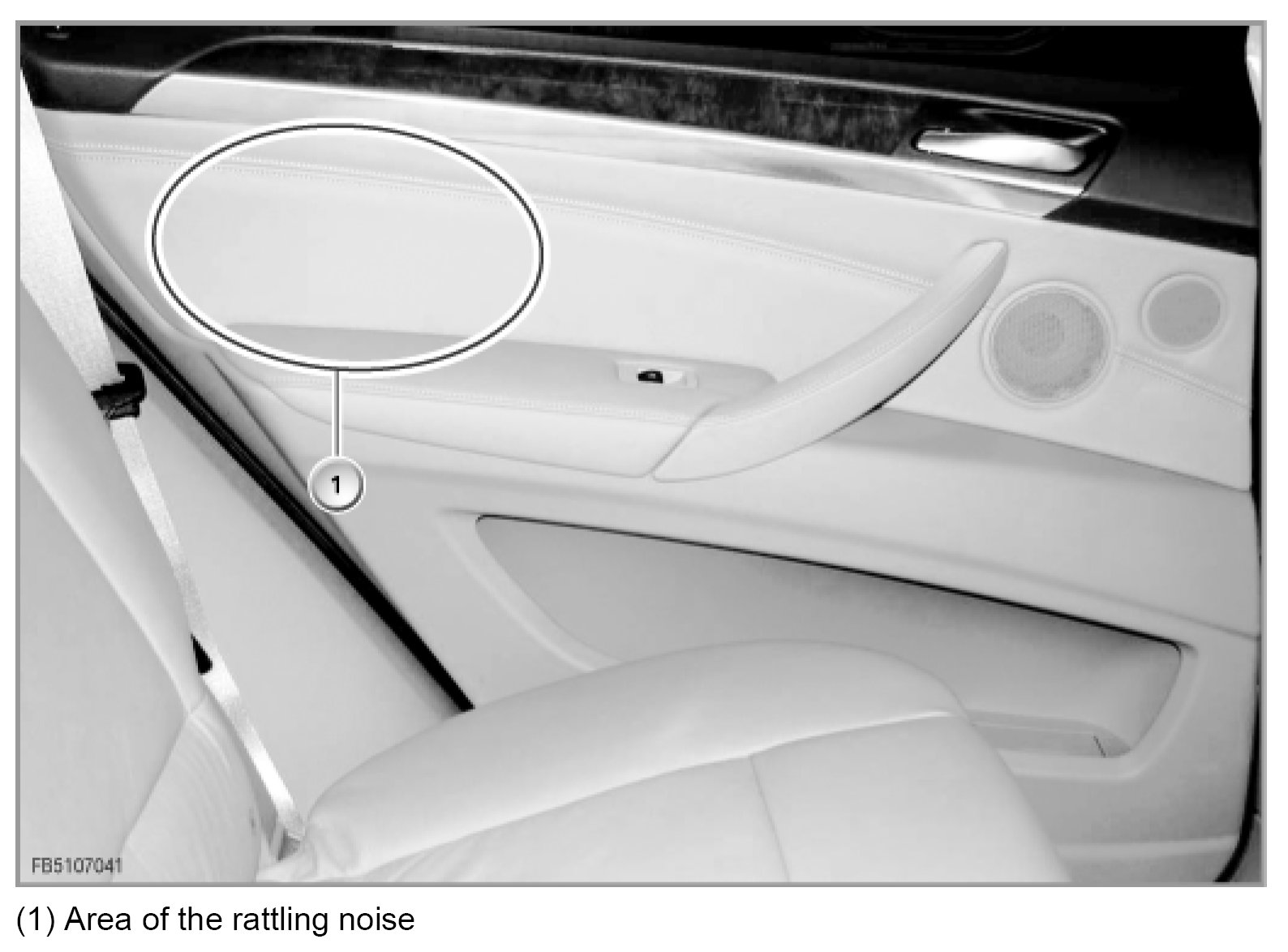

Door panel







Inside door trim panel







NOTE: The blue clips of the door trim panel must always be replaced.
