65 24 020 Removing and Installing/Replacing Blocking Circuit

65 24 020 Removing And Installing/Replacing Blocking Circuit (Left Or Right)







Necessary preliminary tasks:
- Partially remove roofliner in working area.







Roofliner shown completely removed for purposes of clarity.

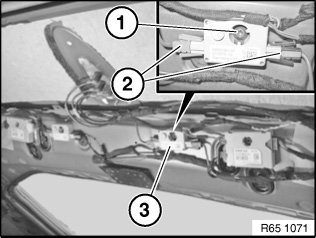

Disconnect plug connections (2).
Release screw (1) and remove blocking circuit (3).







Installation:
Fit blocking circuit (1) so that screw (2) engages thread (3) and locating pin (4) engages bore (5).
