65 12 ... Removing and Installing/Replacing Aerial/Antenna Splitter (IBOC) (US Version Only)

65 12 ... Removing And Installing/Replacing Aerial/Antenna Splitter (IBOC) (US Version Only)







IMPORTANT: Read and comply with notes on protection against electrostatic discharge (ESD protection).







Necessary preliminary tasks:
- Remove digital radio

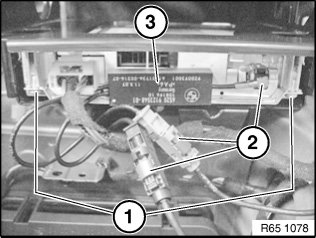

Release screws (1).
Disconnect plug connections (2) and remove aerial/antenna splitter (3).
