Home >> BMW >> 2008 >> X5 3.0i (E70) L6-3.0L (N52K) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> Crankshaft Main Bearing >> Torque, Main Bearings

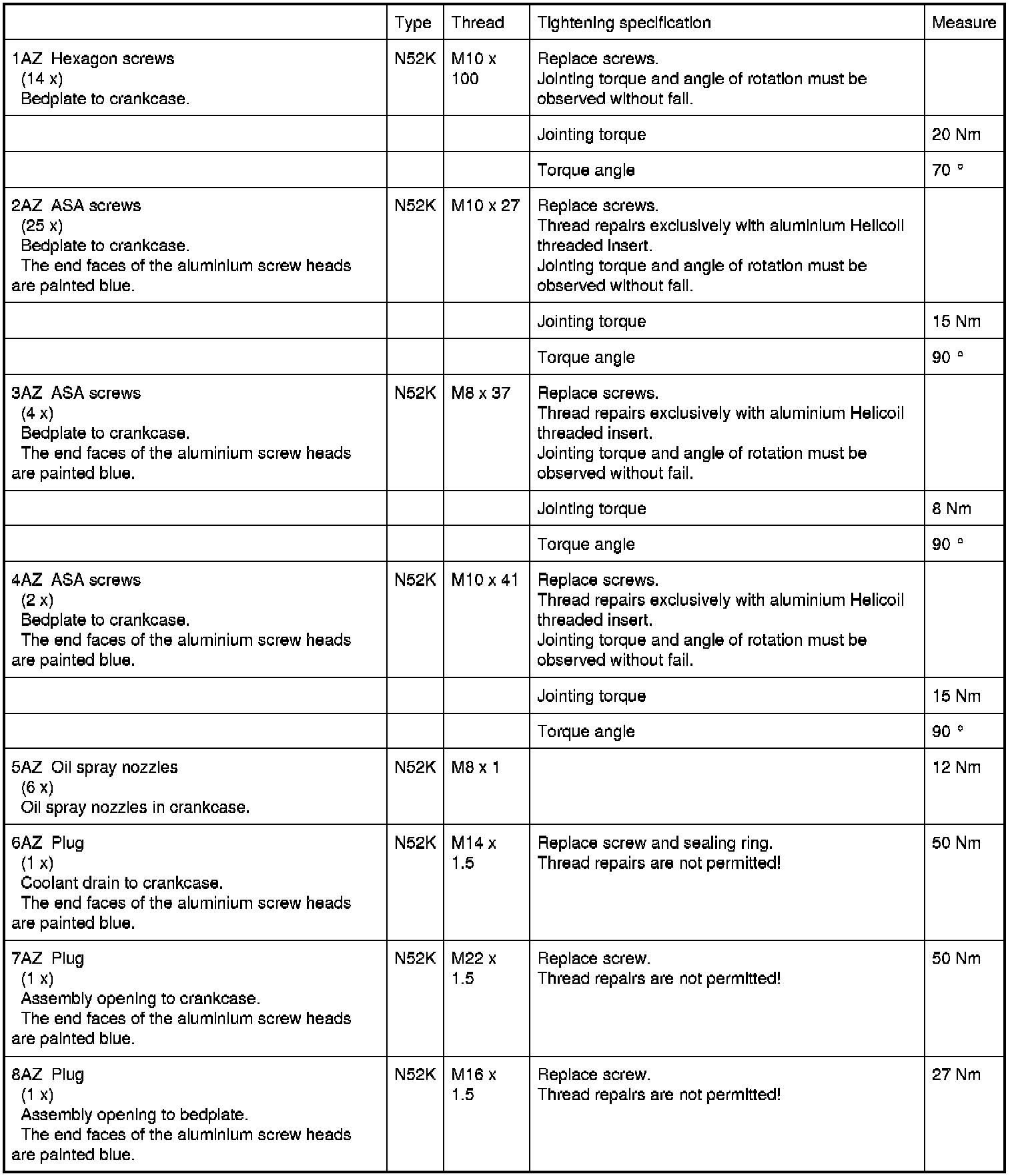

Torque, Main Bearings






11 11 Crankshaft Main Bearing Bolts





Please refer to Replacing Crankshaft for main bearing bolt tightening procedure. Service and Repair
