Removing and Installing Complete Wiper Console

61 61 270 - Removing and installing complete wiper console





Necessary preliminary tasks:

- Remove cowl panel cover 51 13 115 Removing And Installing/Replacing Cowl Panel Cover.

- Remove heater bulkhead 51 71 080 Removing and Installing/Replacing Heater Bulkhead.

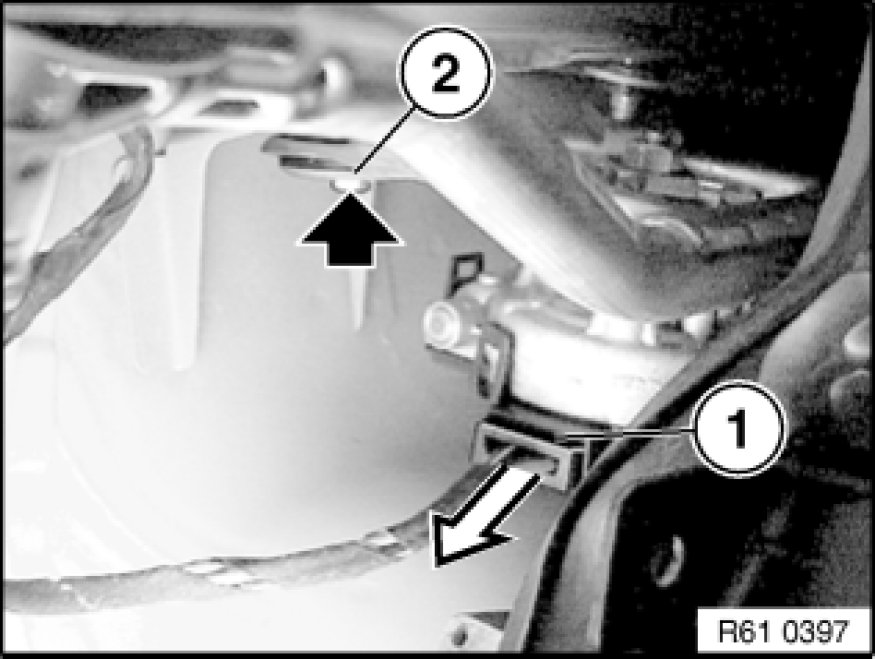

Unfasten plug connection (1) and disconnect.
Unscrew bolt (2).

Installation Note:
Tightening torque 61 61 6AZ 61 61 Windshield Wipers.





Installation Note:

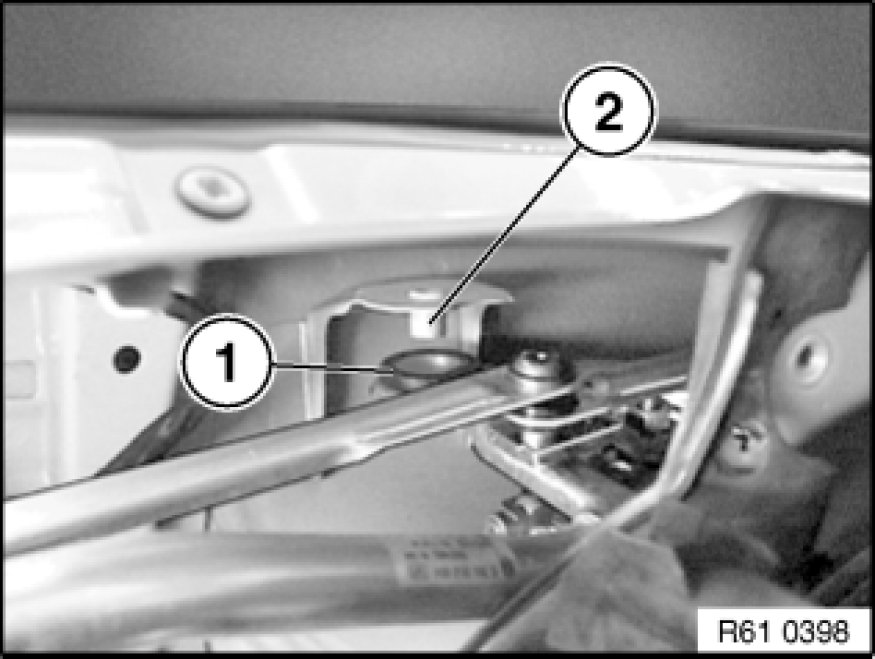

Fit rubber grommet (1) of wiper console on pin (2).





Release nuts and feed out complete wiper console through opening in heater bulkhead.

Installation Note:
Tightening torque 61 61 5AZ 61 61 Windshield Wipers.
