51 36 040 Removing and installing/replacing strip on side window at rear bottom left or right

51 36 040 - Removing and installing/replacing strip on side window at rear bottom left or right





Special tools required:
- 00 9 318 00 9 318 Multipurpose Wedge





Carefully lever out strip (1) with special tool 00 9 318 00 9 318 Multipurpose Wedge, starting at front, in direction of arrow.

Installation:
Clean bonding area with adhesive remover (sourcing reference: BMW Parts Service).

Air drying time: 1 minute

Important!
Adhesive areas must be dry and free of dust and grease.

Once it has been cleaned, do not touch the adhesive area with bare hands.





Installation:

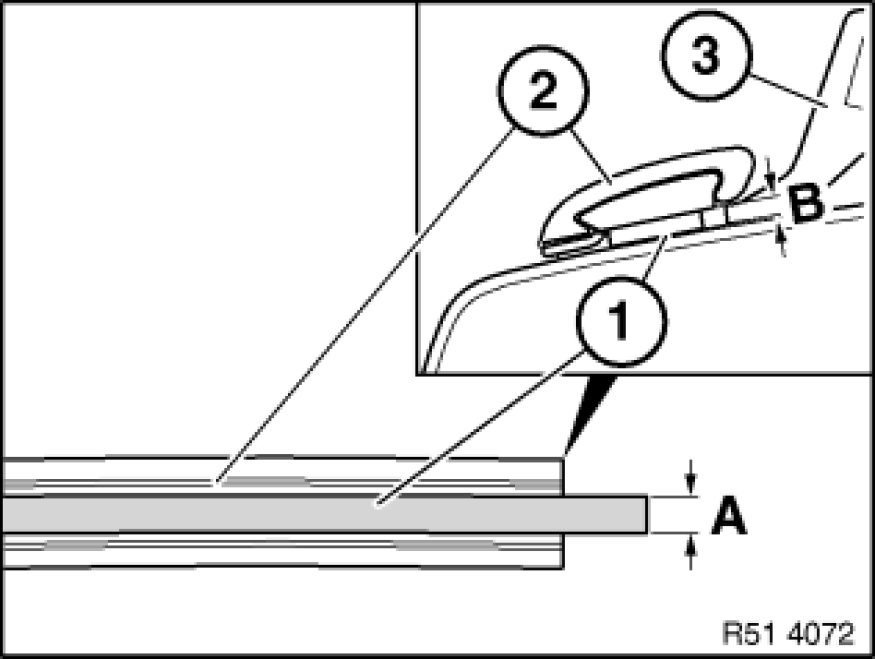

Stick double-sided adhesive tape (1) (sourcing reference: BMW Parts Service) on middle of strip (2).

Remove protective film.

Press strip (2) firmly onto body (3).

Manual contact pressure: approx. 10 N/cm2

Note:
Firm thumb pressure creates approx. 50 Nm/cm2.

Double-sided adhesive tape (1):

Measurement a=7.0 mm -
Measurement b=0.8 mm -
Replacement:

Adhesive tape (1) already attached to strip (2).
