Home >> BMW >> 2008 >> X3 3.0si (E83) L6-3.0L (N52K) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> System Specifications >> Front Axle >> 31 50 Front Axle Differential

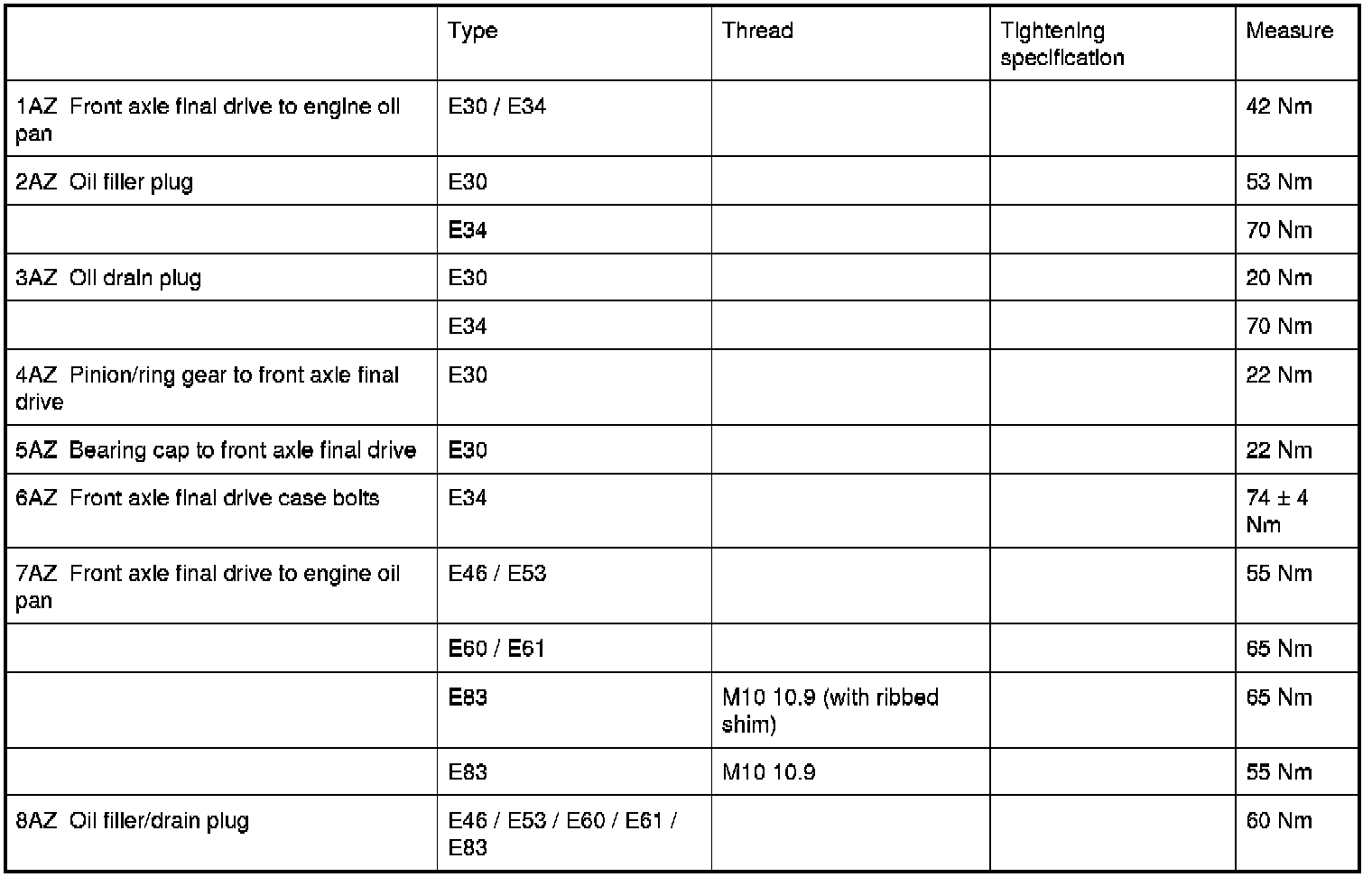

31 50 Front Axle Differential




31 50 Front axle differential
