Home >> BMW >> 2008 >> X3 3.0si (E83) L6-3.0L (N52K) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Restraints and Safety Systems >> Air Bag Control Module >> Locations >> Overview of Airbag Modules, Seat Belts and Airbag Control Units

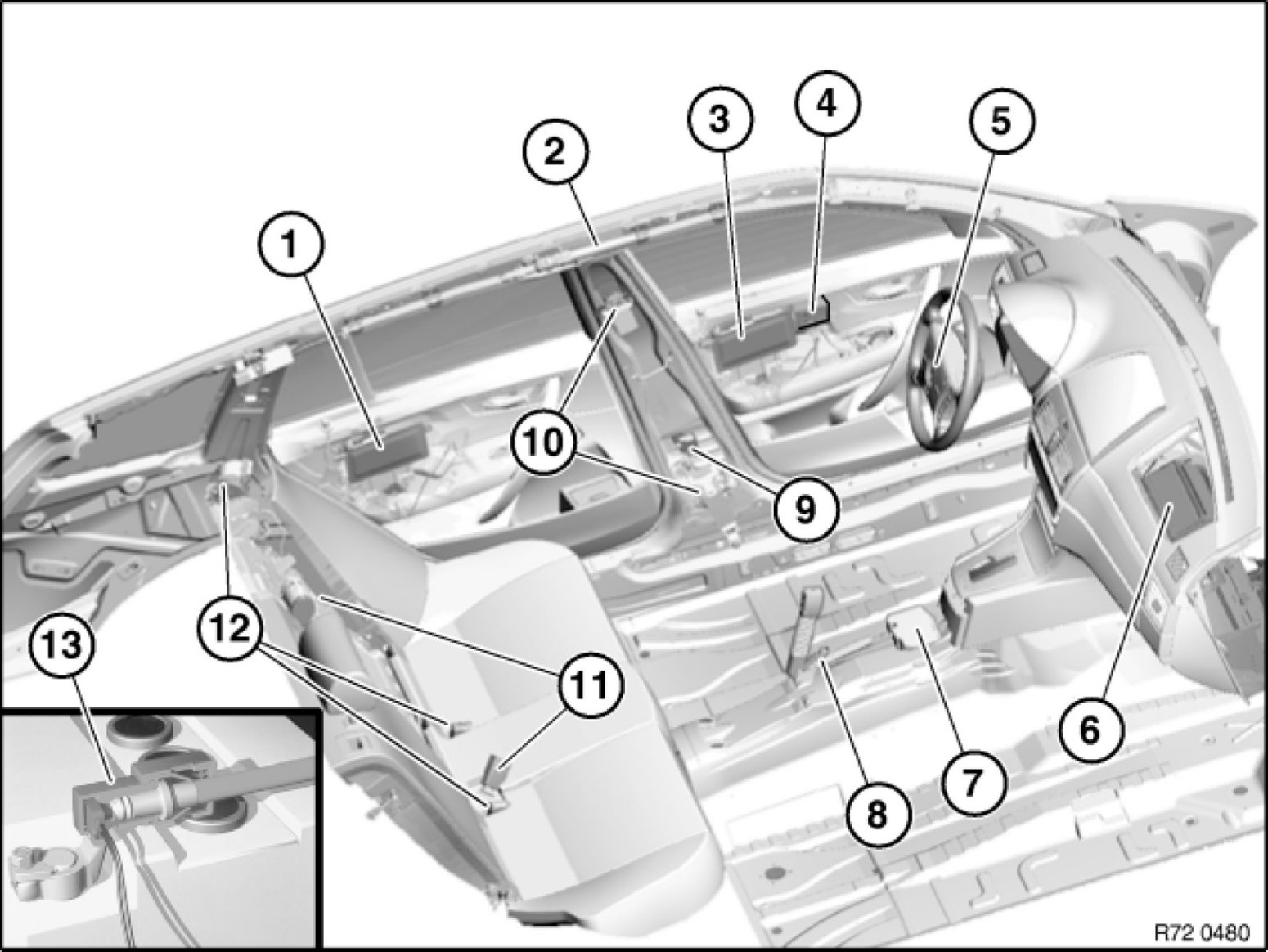

Overview of Airbag Modules, Seat Belts and Airbag Control Units

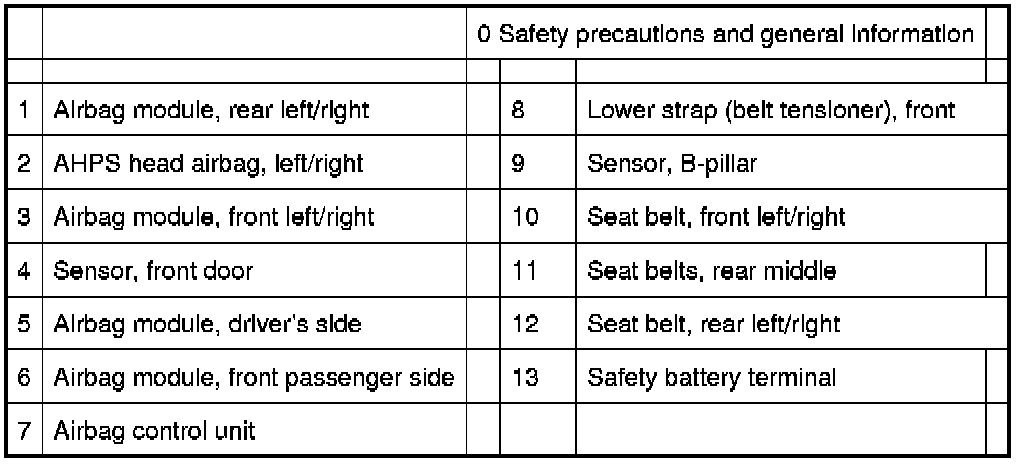

72 12 ... - Overview of airbag modules, seat belts and airbag control units
