Accelerator Pedal: Service and Repair




35 40 001 - Removing and installing or replacing accelerator pedal module

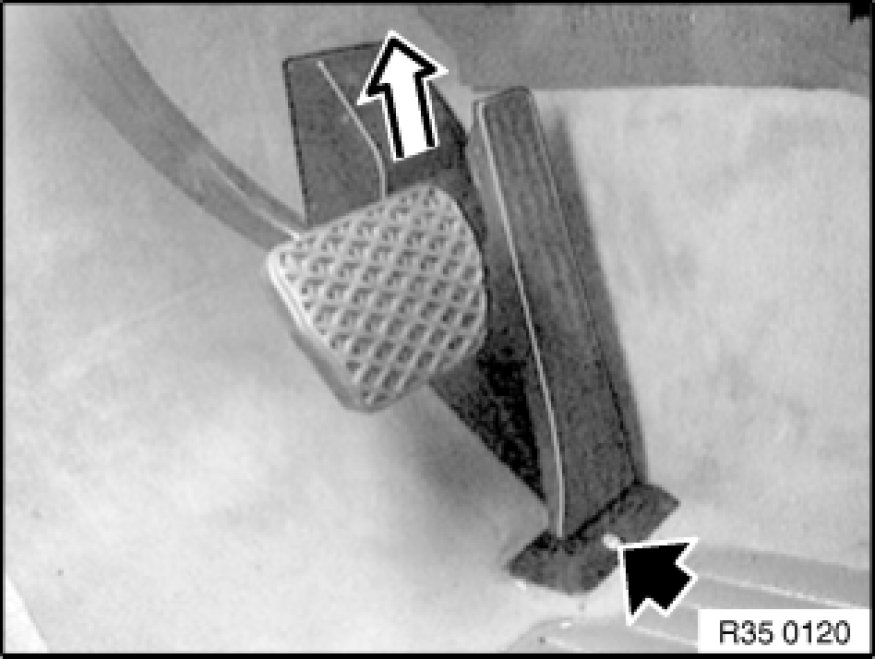

Take off cap.
Release screw.
Pull accelerator pedal module upwards out of fixture.

Installation:
Tightening torque 35 40 1AZ [1][2]Accelerator Pedal.

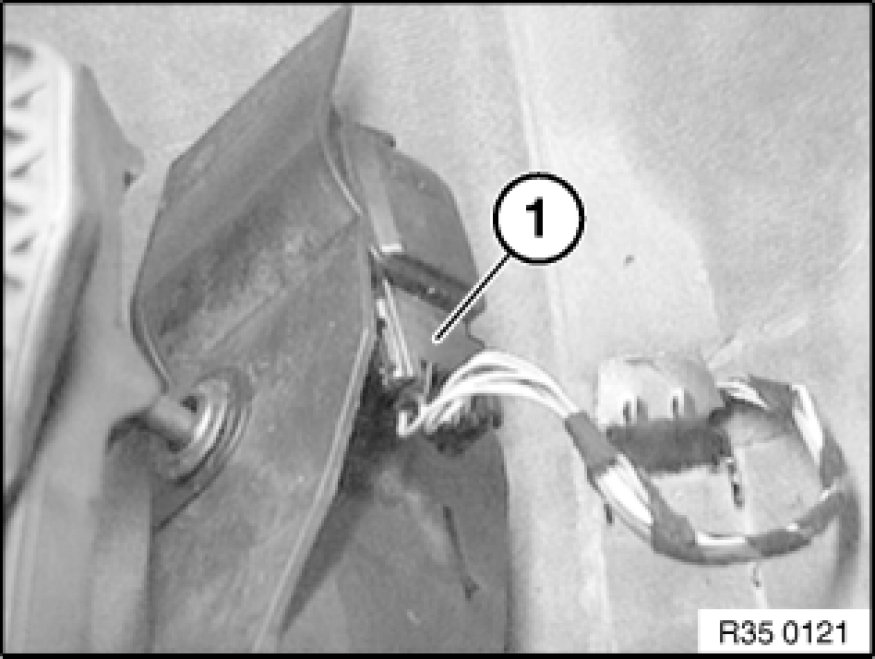

Pull off plug (1).
Remove accelerator pedal module.





Important!
Accelerator pedal module can only be replaced completely with adapter plate.
