Central Electronics Box Fan: Service and Repair

12 90 100 - Replacing fan for electronics box





Release screws.

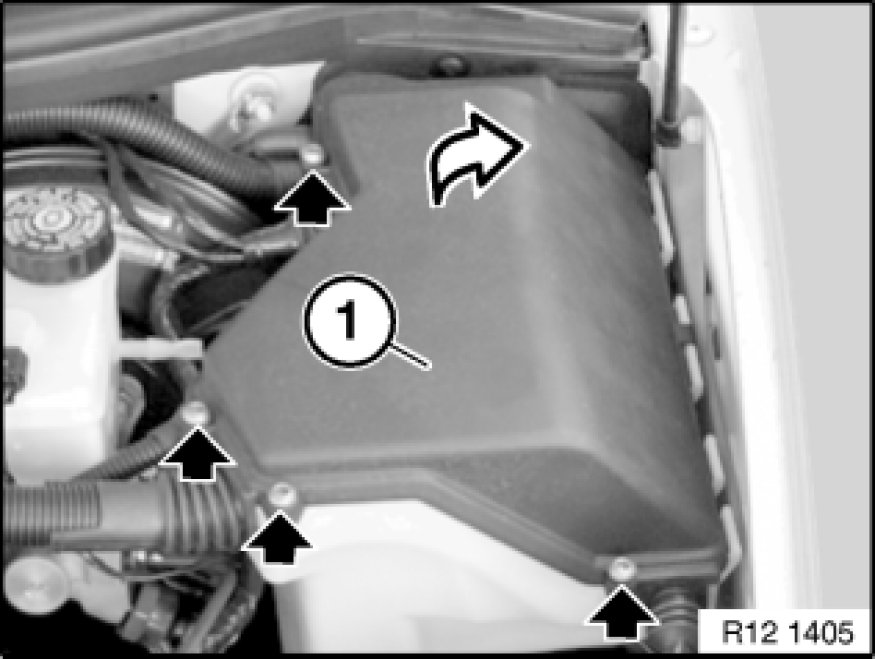

Open electronics box cover (1).
Remove cover.

Installation:
Make sure that cover is correctly inserted in hinges of electronics box lower section (watertightness).





Raise control unit slightly.

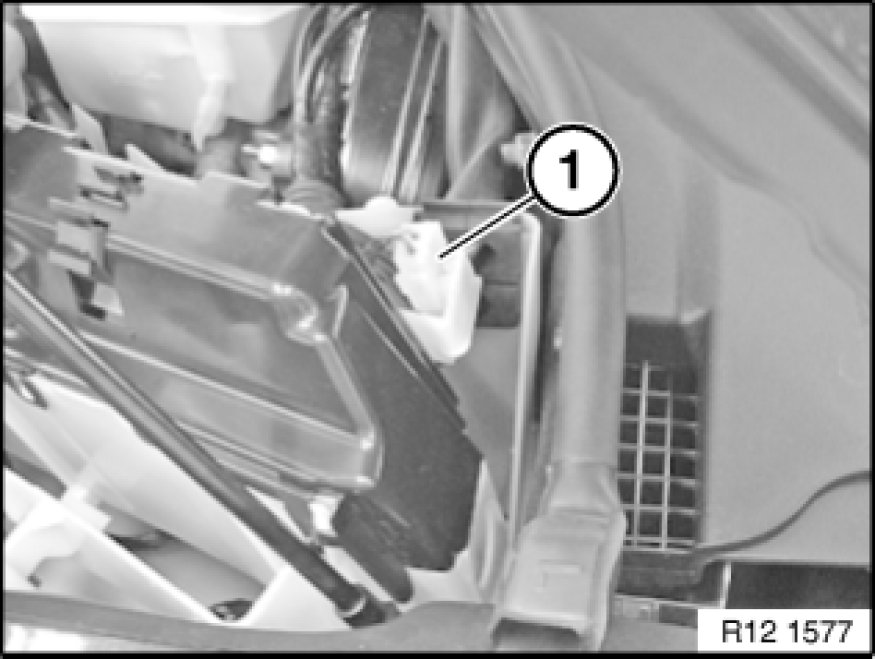

Unlock plug connection (1) for fan and detach from equipment carrier.
Unfasten plug connection and disconnect.





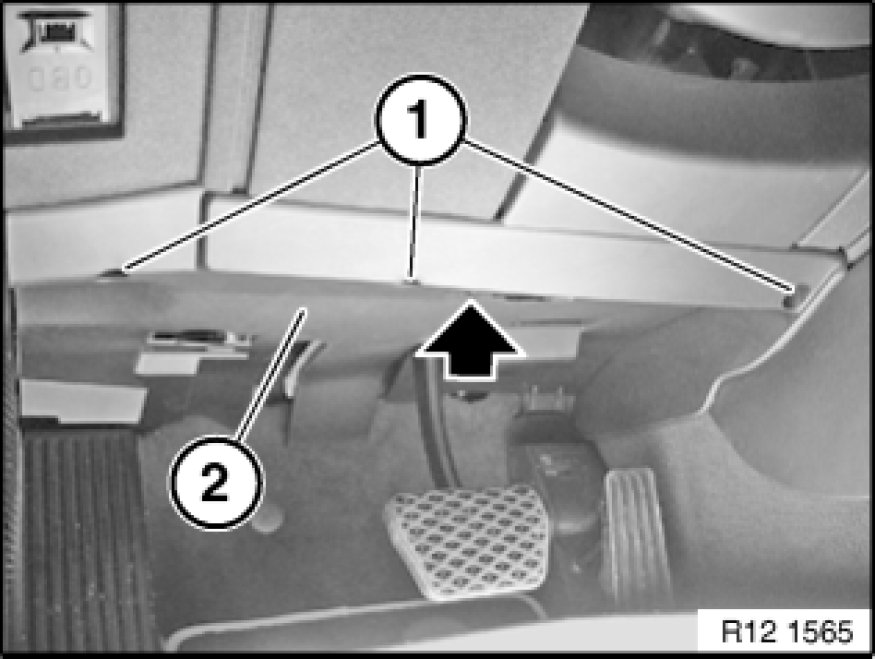

Release screws (1).
Remove cover (2).





Release screws.
Remove plate with fan (1).
