Replacing Light Bulb for Luggage Compartment Lighting




63 99 451 - Replacing light bulb for luggage compartment lighting





Warning!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).





Necessary preliminary tasks:
- Remove luggage compartment light Removing and Installing/Replacing Luggage Compartment Light (D-Pillar)

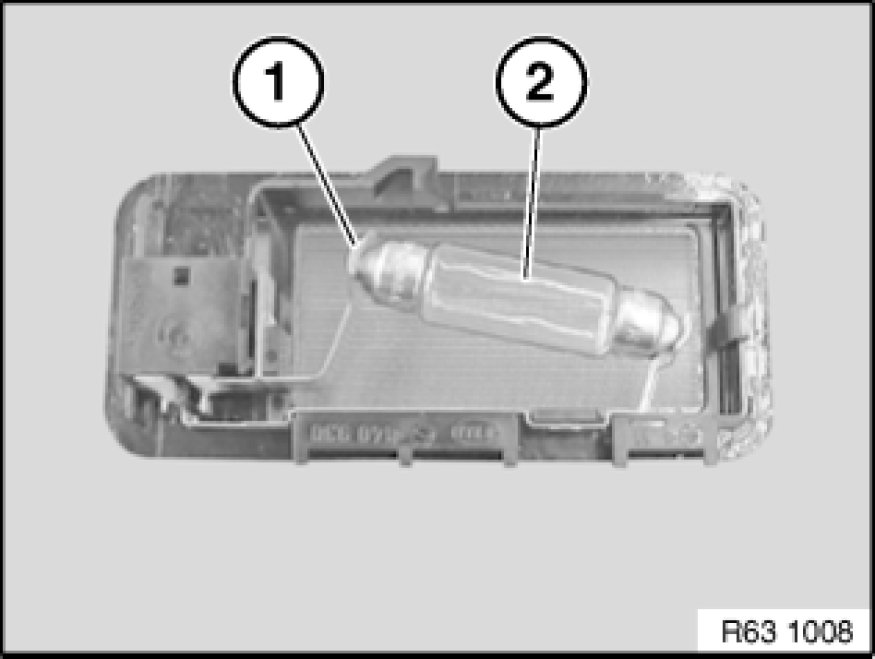

Press festoon (2) in direction of bow contact (1) and remove in upward direction from luggage compartment light.

Installation Note:
Note type of bulb Interior Lights.
