Removing and Installing/Replacing Luggage Compartment Light (D-Pillar)

63 31 080 - Removing and installing/replacing luggage compartment light (D-pillar)





Special tools required:
- 64 1 020 64 1 020 Release Hook





Important!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).

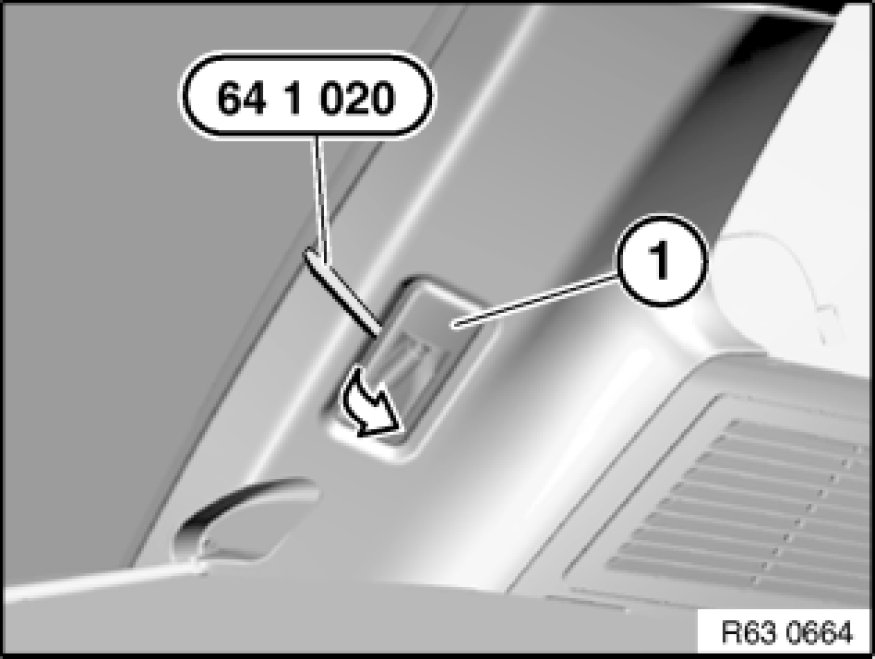

Lever out luggage compartment light (1) with special tool 64 1 020 64 1 020 Release Hook as illustrated.

Disconnect associated plug connection and remove luggage compartment light (1).





Replacement:

- If necessary, convert bulbs.
- Note bulb type Interior Lights.
