Removing and Installing/Replacing Luggage Compartment Lamp (On Rear Lid)

63 31 085 - Removing and installing/replacing luggage compartment lamp (on rear lid)





Important!
Follow instructions for handling light bulbs (interior lights) Instructions for Replacing Light Bulbs (Interior Lights).

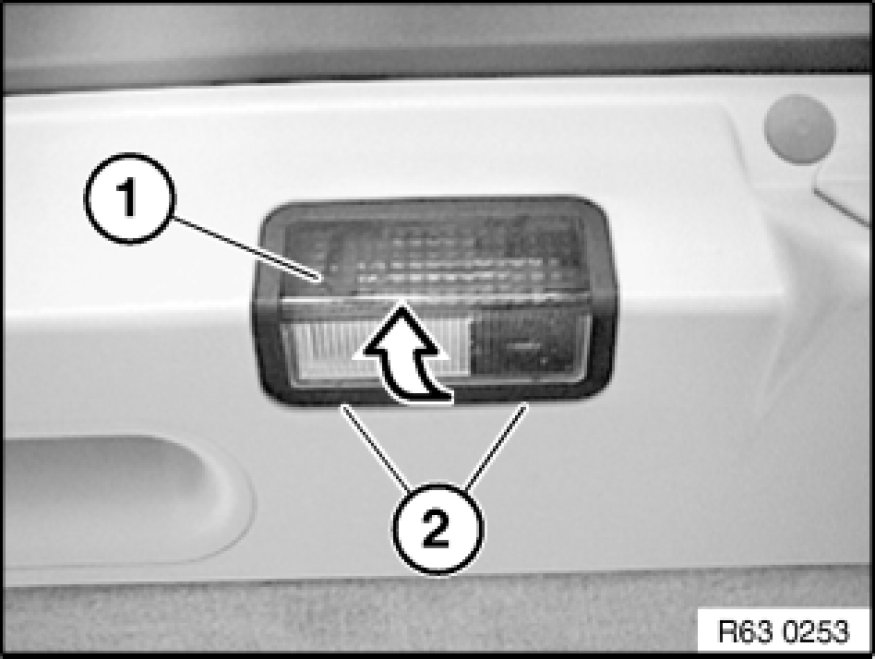

Lever out luggage compartment lamp (1) at openings (2) in direction of arrow.
Disconnect plug connection underneath and remove luggage compartment lamp (1).





Replacement:
- If necessary, convert bulbs.
- Note bulb type Interior Lights.
